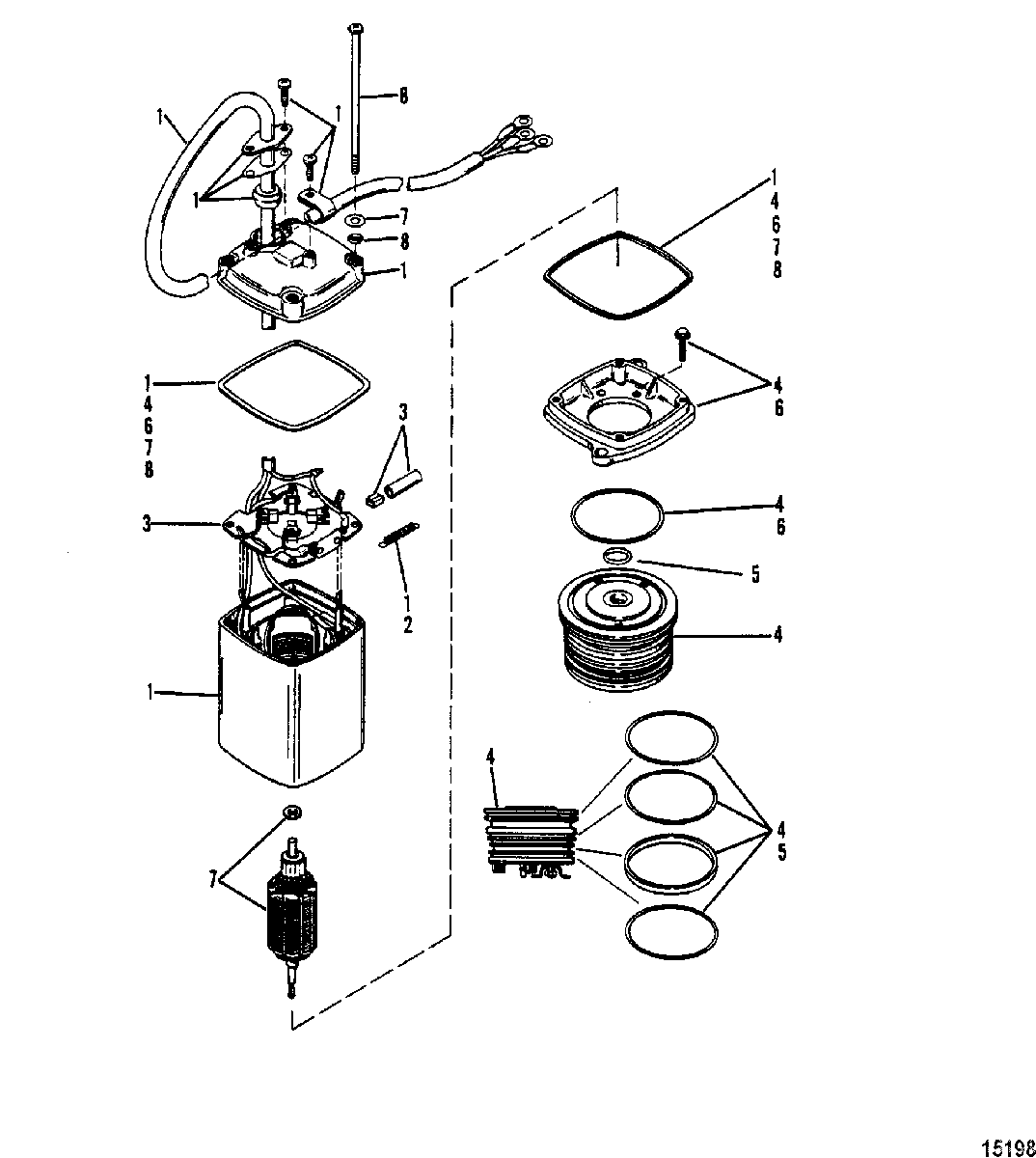

Power Trim Pump для Mariner - V-200 0C100861 THRU 0C291519
-
№АртикулНазвание
-
-826729A10 PUMP AND MOTORPUMP AND MOTOR
-
1826729A10 FRAME AND FIELD KITFRAME AND FIELD KIT
-
212665 SPRING KIT, BrushSPRING KIT, Brush
-
3826729A10 BRUSH CARD KITBRUSH CARD KIT
-
4826729A10 PUMP AND END FRAME KITPUMP AND END FRAME KIT
-
5126631 SEAL KIT, PumpSEAL KIT, Pump
-
6826729A10 END FRAME KITEND FRAME KIT
-
7826729A10 ARMATURE KITARMATURE KIT
-
812664 THRU BOLT KITTHRU BOLT KIT
Все узлы модели:
- BOTTOM COWL
- CARBURETOR ASSEMBLY
- CHOKE PLATE AND THROTTLE LEVERS(S/N-C239552 AND BELOW)
- CHOKE PLATE AND THROTTLE LEVERS(S/N-C239553 AND UP)
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND END CAPS
- DRIVESHAFT HOUSING AND EXHAUST TUBE
- Dual Engine Extension Kit
- EXHAUST MANIFOLD AND EXHAUST PLATE
- FLYWHEEL/STARTER MOTOR
- FUEL PUMP AND CARBURETOR
- GEAR HOUSING(DRIVE-STANDARD/COUNTER ROTATION)
- GEAR HOUSING(PROPELLER SHAFT) (COUNTER ROTATION)
- GEAR HOUSING(PROPELLER SHAFT) (STANDARD ROTATION)
- IGNITION COIL/VOLTAGE REGULATOR
- Instrumentation(Mercury and Mariner)
- Key Switch(Counter Rotation Engines)
- MISCELLANEOUS PARTS AND ACCESSORIES
- OIL INJECTION COMPONENTS
- POWER TRIM COMPONENTS
- • Power Trim Pump
- REED BLOCK AND CYLINDER HEAD
- Starter Motor
- SWIVEL BRACKET AND STEERING ARM
- THROTTLE LEVER AND SHIFT SHAFT
- TOP COWL AND FRONT SHIELD
- TRANSOM BRACKETS
- WIRING HARNESS/STARTER SOLENOID
