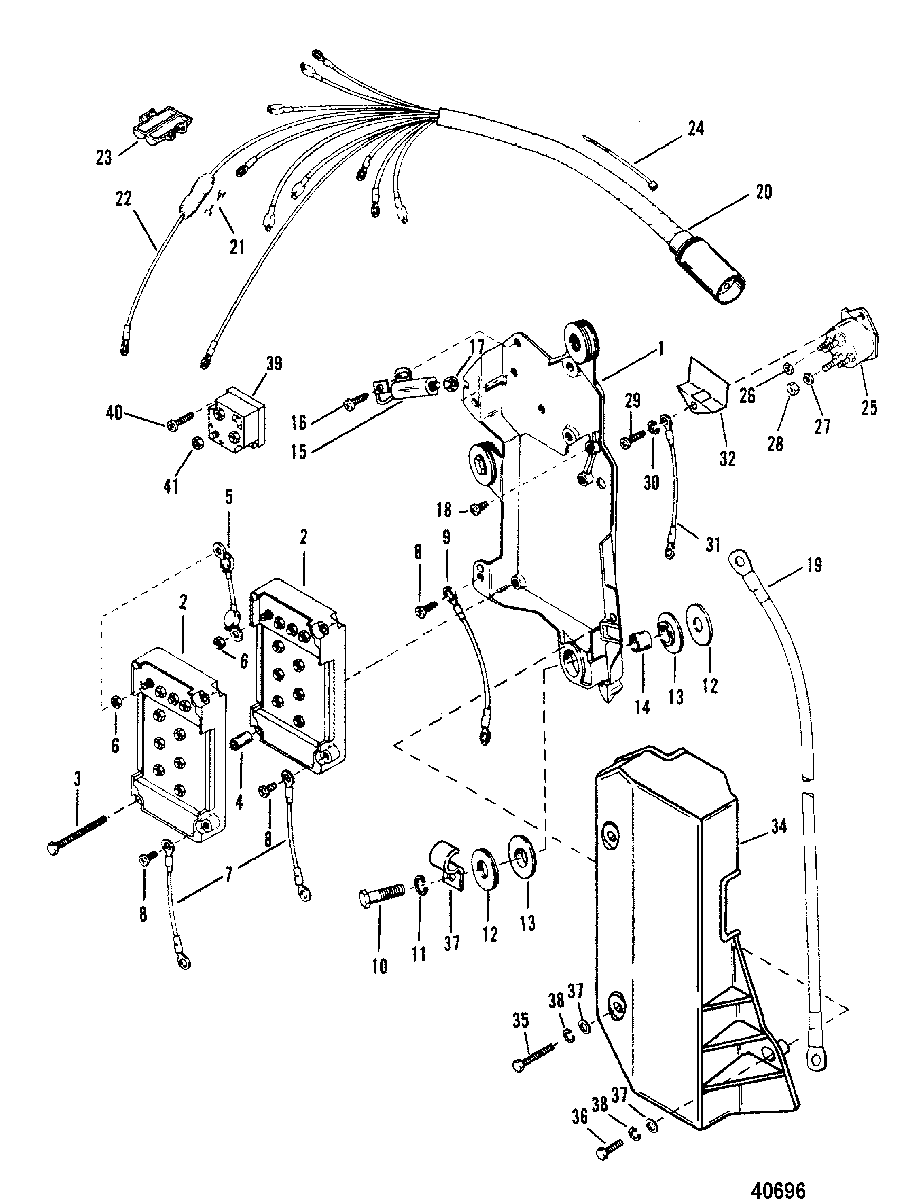

WIRING HARNESS/STARTER SOLENOID для Mariner - V-200 0C100861 THRU 0C291519
-
№АртикулНазвание
-
1434292 IGNITION PLATEIGNITION PLATE
-
2332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
310-13669 SCREW, (#12-24 x 2.00)SCREW, (#12-24 x 2.00)
-
423-94453 BUSHINGBUSHING
-
584-62310A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
784-60871A10 WIRE ASSEMBLYWIRE ASSEMBLY
-
810-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
984-65999A3 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
1010-60411 SCREW, (1.25)SCREW, (1.25)
-
1113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1212-36042 WASHERWASHER
-
1312-67264 WASHER, (Rubber)WASHER, (Rubber)
-
1423-67268 BUSHINGBUSHING
-
1587-33386A3 SWITCH ASSEMLBYSWITCH ASSEMLBY
-
1610-38055 SCREW, (.190-32 x .620)SCREW, (.190-32 x .620)
-
1711-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1810-87926 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
1984-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
1984-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
2084-96220A12 HARNESS ASSEMBLY
(USE WITH 18736A15 VOLTAKE REGULATORHARNESS ASSEMBLY
(USE WITH 18736A15 VOLTAKE REGULATOR -
2084-96220A4 HARNESS ASSEMBLY
(USE WITH 62351A1 RECTIFIER)HARNESS ASSEMBLY
(USE WITH 62351A1 RECTIFIER) -
2188-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2284-95084A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
23134731 HOLDER, FuseHOLDER, Fuse
-
2454-816311T TIE STRAPTIE STRAP
-
2589-853654A1 SOLENOID, StarterSOLENOID, Starter
-
2611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2713-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2811-68292 NUT, (.312-18)NUT, (.312-18)
-
2910-31716 SCREW, (.250-20 x .620)SCREW, (.250-20 x .620)
-
3013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3184-65999A2 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
3285-78866 INSULATOR (OLD DESIGN)INSULATOR (OLD DESIGN)
-
3354-47483 J CLIPJ CLIP
-
34814422T COVER
SN# 0C239553 & UpCOVER
SN# 0C239553 & Up -
3510-88447 SCREW, (.190-32 x 1.62)
SN# 0C239553 & UpSCREW, (.190-32 x 1.62)
SN# 0C239553 & Up -
3610-690201 SCREW, (#10-32 x .875)
SN# 0C239553 & UpSCREW, (#10-32 x .875)
SN# 0C239553 & Up -
3712-89302 WASHER, (.203 x .406 x .040)
SN# 0C239553 & UpWASHER, (.203 x .406 x .040)
SN# 0C239553 & Up -
3813-26996 LOCKWASHER, (#10) Stainless Steel
SN# 0C239553 & UpLOCKWASHER, (#10) Stainless Steel
SN# 0C239553 & Up -
398M0058226 RECTIFIERRECTIFIER
-
4010-38055 SCREW, (.190-32 x .620)SCREW, (.190-32 x .620)
-
4111-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
