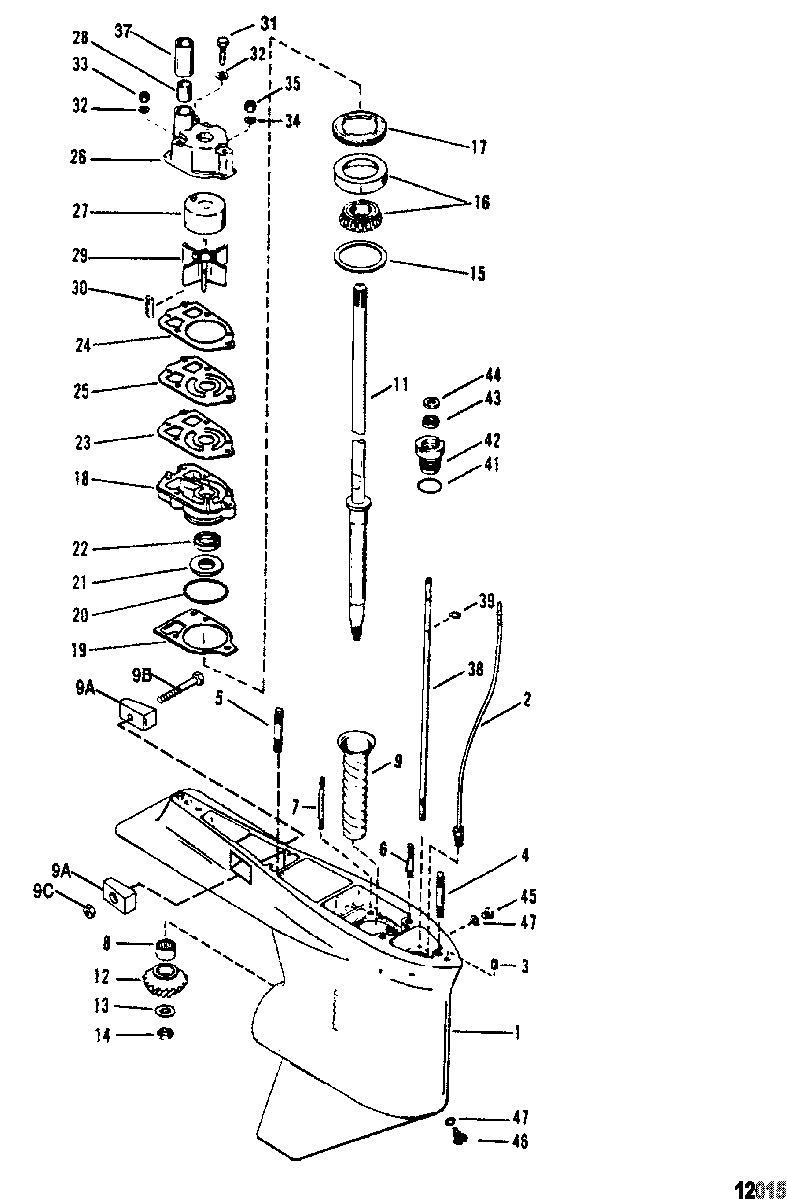

GEAR HOUSING(DRIVESHAFT) для Mariner - V-200 0D082000 THRU 0G303045

№

Артикул

Название
1

1647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (BLACK)

GEAR HOUSING ASSEMBLY (BASIC) (BLACK)

173 280 ₽
1

1647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (GRAY)

GEAR HOUSING ASSEMBLY (BASIC) (GRAY)

173 280 ₽
1

1647-9148T49 GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)

GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)

161 280 ₽
2

22-85822A10 CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)

CONNECTOR ASSEMBLY (USE WHERE APPLICABLE)

660 ₽
3

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
4

16-786382 STUD, (.438 x 3.12) (LONG)

STUD, (.438 x 3.12) (LONG)

560 ₽
4

16-8M0034464 STUD, (.438 x 3.69) (X-LONG)

STUD, (.438 x 3.69) (X-LONG)

1 370 ₽
5

16-8M0133358 STUD, (.437-14/.437-20 x 2.060)

STUD, (.437-14/.437-20 x 2.060)

0 ₽
6

16-8M0034463 STUD, (.312 x 3.38)

STUD, (.312 x 3.38)

670 ₽
7

16-306671 STUD, (.250-20/.250-28 x 3.125)

STUD, (.250-20/.250-28 x 3.125)

0 ₽
8

31-42647A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

6 480 ₽
9

23-43998 SLEEVE (OLD DESIGN)

SLEEVE (OLD DESIGN)

0 ₽
9A

97-826134Q ANODE
DESIGN II

ANODE
DESIGN II

1 120 ₽
9B

10-4000333 SCREW, (M6 x 40)
DESIGN II

SCREW, (M6 x 40)
DESIGN II

290 ₽
9C

11-401386 NUT, (M6)
DESIGN II

NUT, (M6)
DESIGN II

330 ₽
11

45-897624T DRIVESHAFT (LONG)

DRIVESHAFT (LONG)

68 740 ₽
11

45-897625T DRIVESHAFT (X-LONG)

DRIVESHAFT (X-LONG)

70 530 ₽
11

45-16292 DRIVESHAFT (20")
HIGH ALTITUDE - 2.3:1 GEAR RATIO

DRIVESHAFT (20")
HIGH ALTITUDE - 2.3:1 GEAR RATIO

33 250 ₽
11

45-815237 DRIVESHAFT (25")
HIGH ALTITUDE - 2.3:1 GEAR RATIO

DRIVESHAFT (25")
HIGH ALTITUDE - 2.3:1 GEAR RATIO

0 ₽
12

N.S.S. Not Sold Separate, Pinion Gear (Part of Forward Gear Set)

Not Sold Separate, Pinion Gear (Part of Forward Gear Set)

0 ₽
13

12-92721 WASHER

WASHER

120 ₽
14

11-35921 NUT, (.625-18)

NUT, (.625-18)

1 020 ₽
15

15-8M0063267 SHIM SET

SHIM SET

2 700 ₽
16

31-36387A1 BEARING, Roller

BEARING, Roller

5 340 ₽
17

8245191 RETAINER

RETAINER

500 ₽
18

46-8M0077147 BASE ASSEMBLY, Water Pump

BASE ASSEMBLY, Water Pump

4 550 ₽
19

27-426311 GASKET

GASKET

280 ₽
20

25-896523 O-RING, (2.175 x .175)

O-RING, (2.175 x .175)

230 ₽
21

26-89238 SEAL, Oil

SEAL, Oil

3 570 ₽
22

26-16977 SEAL, Oil

SEAL, Oil

1 550 ₽
23

27-8M0090319 GASKET

GASKET

280 ₽
24

27-858524 GASKET

GASKET

260 ₽
25

324351 FACE PLATE

FACE PLATE

650 ₽
26

46-96148T1 BODY ASSEMBLY, Water Pump

BODY ASSEMBLY, Water Pump

6 130 ₽
27

48752T INSERT

INSERT

860 ₽
28

26-38970 SEAL

SEAL

340 ₽
29

47-89984T3 IMPELLER

IMPELLER

3 320 ₽
30

28-8M0032834 KEY

KEY

330 ₽
31

10-96411 SCREW, (#14-8 x 2.25)

SCREW, (#14-8 x 2.25)

210 ₽
32

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
33

11-8267119 NUT, (.250-28)

NUT, (.250-28)

180 ₽
34

12-36001 WASHER

WASHER

100 ₽
35

11-13436 NUT

NUT

220 ₽
37

23-29804T SLEEVE

SLEEVE

630 ₽
38

789022 SHIFT SHAFT (USE W/O E-RING)

SHIFT SHAFT (USE W/O E-RING)

9 650 ₽
38

789022 SHAFT
USE WITH E-RING

SHAFT
USE WITH E-RING

9 650 ₽
39

53-29641 E RING
USE WITH E-RING

E RING
USE WITH E-RING

140 ₽
41

25-25439 O-RING, (.862 x .103)

O-RING, (.862 x .103)

190 ₽
42

23-77631A2 BUSHING ASSEMBLY

BUSHING ASSEMBLY

1 980 ₽
43

26-8164641 SEAL, Oil

SEAL, Oil

670 ₽
44

12-77674 WASHER

WASHER

100 ₽
45

10-79953Q04 SCREW, (.375-16 x .250)

SCREW, (.375-16 x .250)

1 000 ₽
46

22-8M0058389 SCREW, Magnetic

SCREW, Magnetic

1 720 ₽
47

12-191833 WASHER, Fiber

WASHER, Fiber

60 ₽
-

27-815791A92 GASKET SET, Engine

GASKET SET, Engine

20 840 ₽
-

46-96148A8 REPAIR KIT, Water Pump

REPAIR KIT, Water Pump

6 860 ₽
-

26-89238A2 SEAL KIT

SEAL KIT

8 330 ₽
