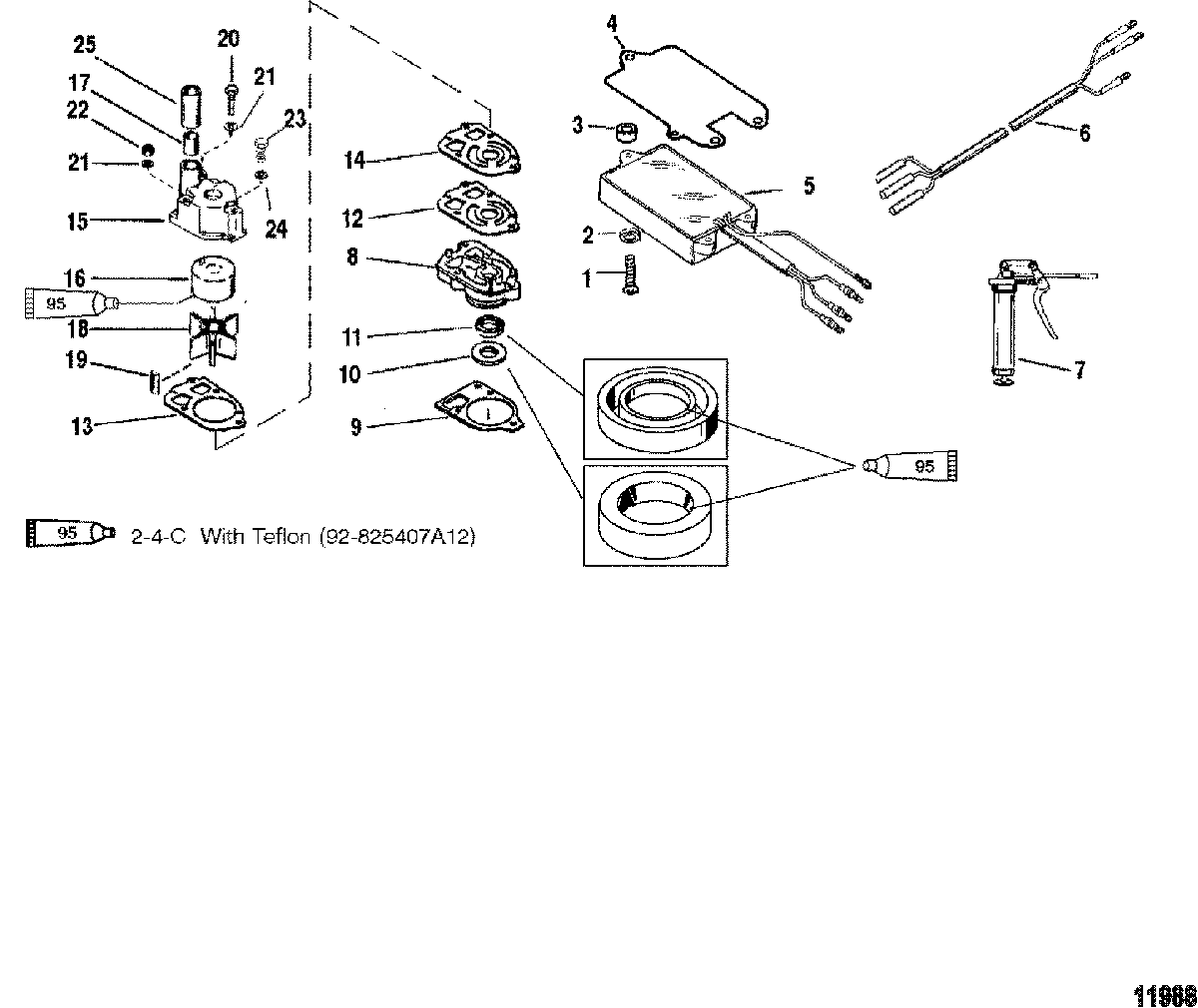

JET COMPONENTS для Mariner - V-200 0D082000 THRU 0G303045
-
№АртикулНазвание
-
110-88447 SCREW, (.190-32 x 1.62)SCREW, (.190-32 x 1.62)
-
212-38833 WASHERWASHER
-
323-94304 SPACERSPACER
-
413381 PLATEPLATE
-
5821889A30 REV LIMITERREV LIMITER
-
684-823147A5 HARNESS ASSEMBLY, Adaptor - Rev LimiterHARNESS ASSEMBLY, Adaptor - Rev Limiter
-
791-30500K2 GREASE KITGREASE KIT
-
846-8M0077147 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
927-426311 GASKETGASKET
-
1026-89238 SEAL, OilSEAL, Oil
-
1126-16977 SEAL, OilSEAL, Oil
-
1227-8M0090319 GASKETGASKET
-
1327-858524 GASKETGASKET
-
14324351 FACE PLATEFACE PLATE
-
1546-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
1648752T INSERTINSERT
-
1726-38970 SEALSEAL
-
1847-89984T3 IMPELLERIMPELLER
-
1928-8M0032834 KEYKEY
-
2010-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
2112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2211-8267119 NUT, (.250-28)NUT, (.250-28)
-
2310-19924275 SCREW, (.312-18 x 2.75)SCREW, (.312-18 x 2.75)
-
2412-36001 WASHERWASHER
-
2523-29804T SLEEVESLEEVE
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-46-96148A8 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-89238A2 SEAL KITSEAL KIT
