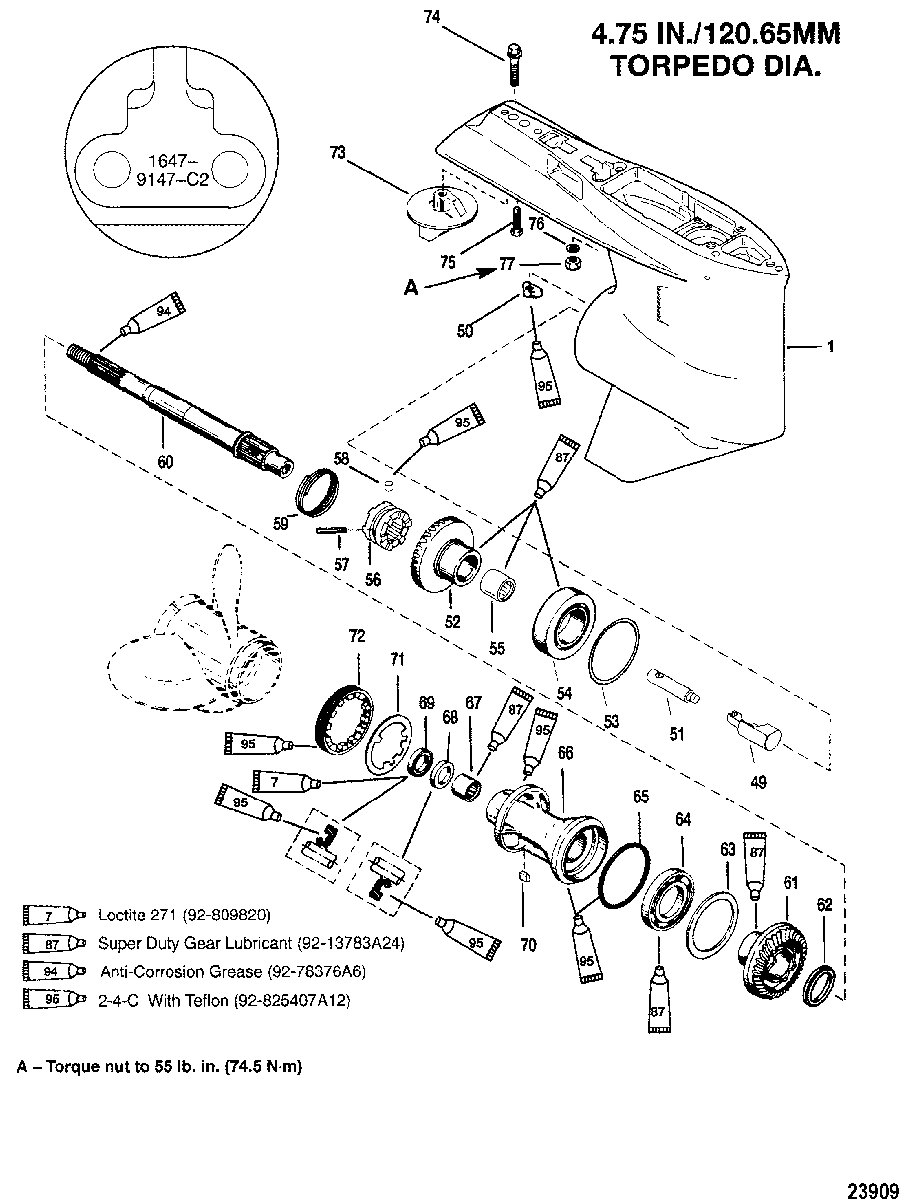

GEAR HOUSING(PROP SHAFT)(STANDARD ROTATION) для Mariner - V-200 0G760300 THRU 0G960499
-
№АртикулНазвание
-
11647-9148T93 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
4989594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
50789562 SHIFT CAMSHIFT CAM
-
51828287 RODROD
-
5243-803615T2 GEAR SET
(150/XR6/MAG. III/175/200)(1.87:1 - 15/28)GEAR SET
(150/XR6/MAG. III/175/200)(1.87:1 - 15/28) -
5243-803612T2 GEAR ASSEMBLY, Forward
(135)(2.0:1 - 14/28)GEAR ASSEMBLY, Forward
(135)(2.0:1 - 14/28) -
5315-8M0063266 SHIM SET (.006-7-9-10-20)SHIM SET (.006-7-9-10-20)
-
5431-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
5531-30895T BEARING, NeedleBEARING, Needle
-
5652-859340T CLUTCH, SlidingCLUTCH, Sliding
-
5717-8M0100263 PIN, CrossPIN, Cross
-
5817-828356 PIN, DetentPIN, Detent
-
5924-30893 SPRINGSPRING
-
6044-94148 PROPELLER SHAFTPROPELLER SHAFT
-
6143-828175A1 GEAR ASSEMBLY, Reverse - 15/28
(150/XR6/MAG. III/175/200)(1.87:1)GEAR ASSEMBLY, Reverse - 15/28
(150/XR6/MAG. III/175/200)(1.87:1) -
6143-828177A1 GEAR ASSEMBLY, Reverse - 14/28
(135)(2.0:1)GEAR ASSEMBLY, Reverse - 14/28
(135)(2.0:1) -
6223-824108 SPACERSPACER
-
63681001 RING, ThrustRING, Thrust
-
6430-88957T BEARING ASSEMBLY, BallBEARING ASSEMBLY, Ball
-
6525-31534 O-RINGO-RING
-
6643567T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6731-30956T BEARING, NeedleBEARING, Needle
-
6826-14077 SEAL, Oil (INSIDE)SEAL, Oil (INSIDE)
-
6926-76868 SEAL (OUTSIDE)SEAL (OUTSIDE)
-
7028-30281 KEYKEY
-
7114-79447 TAB WASHERTAB WASHER
-
728M2000347 RETAINERRETAINER
-
7331640T07 TRIM TABTRIM TAB
-
7397-76214Q5 ANODE KIT
(TRACKER/XR6/MAG III/175 /200 LONG)ANODE KIT
(TRACKER/XR6/MAG III/175 /200 LONG) -
7410-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
7510-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
7612-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
7711-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-26-89238A2 SEAL KITSEAL KIT
