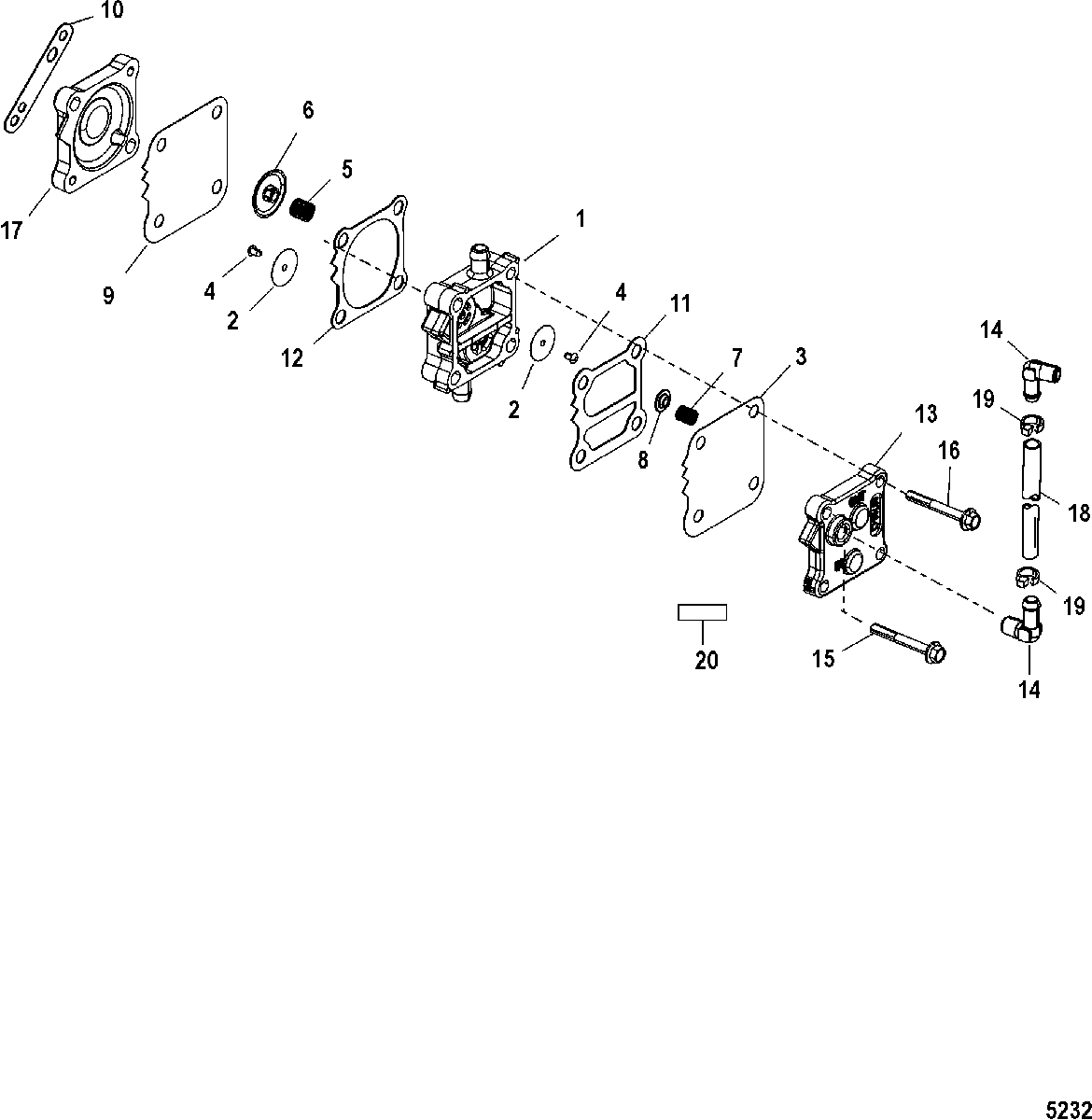

Fuel Pump для Mariner - V-200 0G960500 THRU 1B226999
-
№АртикулНазвание
-
-14360A78 PUMP KIT, FuelPUMP KIT, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
-21-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
2NSS NOT SOLD SEPARATE, Disc Check ValveNOT SOLD SEPARATE, Disc Check Valve
-
3NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
4NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
5NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
6NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1027-987691 GASKET, BaseGASKET, Base
-
11NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
12NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
13987752 PLATEPLATE
-
1422-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
1510-82130050 SCREW, (M6 x 50), Pump to CrankcaseSCREW, (M6 x 50), Pump to Crankcase
-
1610-82104540 SCREW, (M5 x 40), Fuel PumpSCREW, (M5 x 40), Fuel Pump
-
17144303 BASEBASE
-
1832-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
20NSS NOT SOLD SEPARATE, Decal-Assembled in MexicoNOT SOLD SEPARATE, Decal-Assembled in Mexico
-
-27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not includedGASKET SET, Engine, Cylinder head o-rings and seal not included
-
-812815R97 POWERHEAD ASSEMBLY
(135)POWERHEAD ASSEMBLY
(135) -
-823434R00 POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III) -
-813043R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
