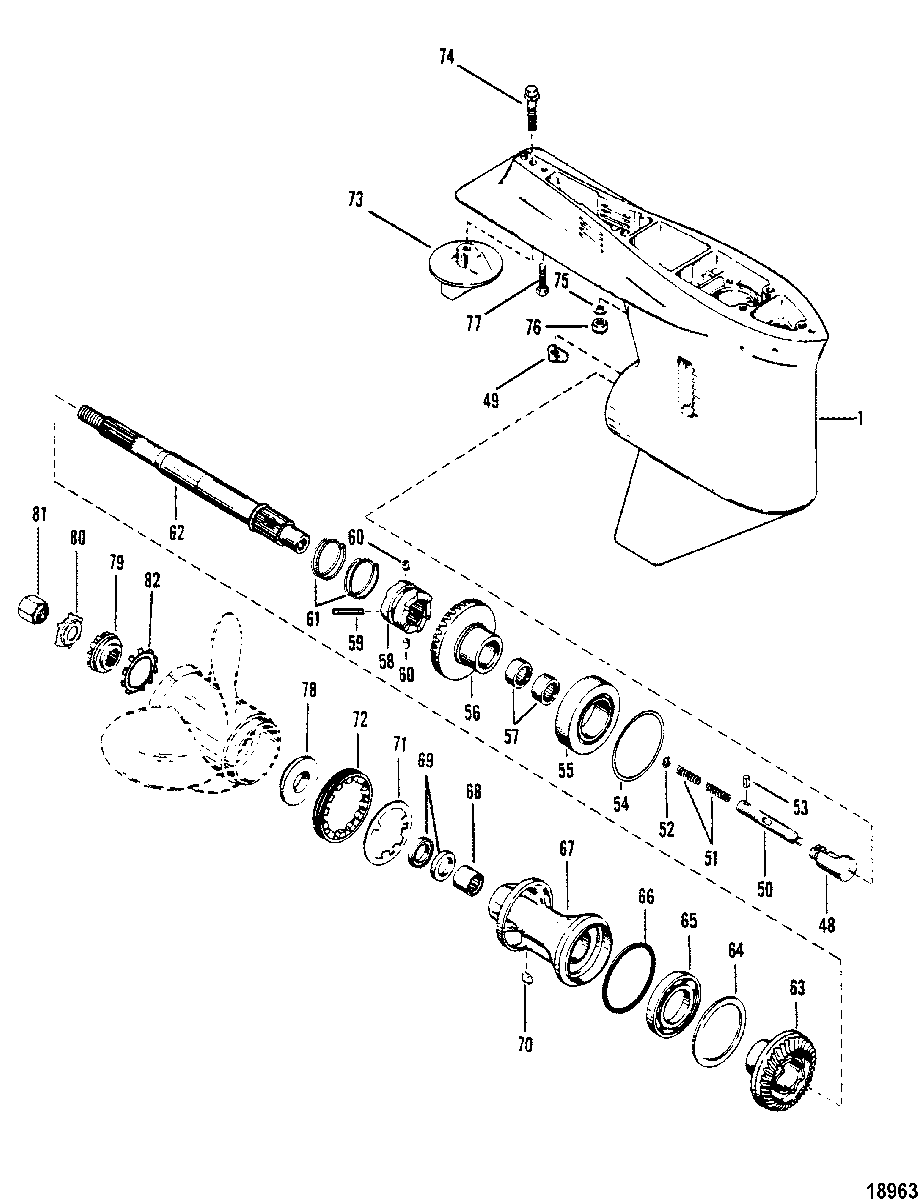

GEAR HOUSING(PROPELLER SHAFT) для Mariner - V-220 0B117316 & Up
-
№АртикулНазвание
-
-1647-9148T84 GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio (LONG) (BLACK)GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio (LONG) (BLACK)
-
-1647-9148T85 GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio (X-LONG) (BLACK)GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio (X-LONG) (BLACK)
-
-1647-9148T84 GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY)
-
-1647-9148T85 GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio (X-LONG) (GRAY)GEAR HOUSING ASSEMBLY, Standard Rotation 1.87:1 Gear Ratio (X-LONG) (GRAY)
-
11647-9148T47 GEAR HOUSING ASSEMBLY
(BLACK)GEAR HOUSING ASSEMBLY
(BLACK) -
11647-9148T47 GEAR HOUSING ASSEMBLY
(GRAY)GEAR HOUSING ASSEMBLY
(GRAY) -
48789562 SHIFT CAMSHIFT CAM
-
4989594A1 FOLLOWER ASSEMBLY, CAMFOLLOWER ASSEMBLY, CAM
-
5079911A1 ROD, CLUTCH ACTUATORROD, CLUTCH ACTUATOR
-
5124-79910 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5212-78910 WASHER, COMPRESSION SPRINGWASHER, COMPRESSION SPRING
-
5317-8M0084245 PIN, SPRING LOCATORPIN, SPRING LOCATOR
-
5415-47397A1 SHIM SET, BEARING OUTER RACE (.002-3-5-10)SHIM SET, BEARING OUTER RACE (.002-3-5-10)
-
5531-78172A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
5643-44104T2 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5731-43999 BEARING, Roller (1.308 O.D.)BEARING, Roller (1.308 O.D.)
-
5731-73363T BEARING, Roller (1.313 O.D.)BEARING, Roller (1.313 O.D.)
-
5852-8M0100493 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5917-8M0084243 PIN, Cross, RATCHET TO PROPELLER SHAFTPIN, Cross, RATCHET TO PROPELLER SHAFT
-
6017-78909 PIN, Detent, RATCHETPIN, Detent, RATCHET
-
6124-78962 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6244-94148 PROPELLER SHAFTPROPELLER SHAFT
-
63N.S.S. Not Sold Separate, REVERSE GEAR (PART OF 43-44104A2)Not Sold Separate, REVERSE GEAR (PART OF 43-44104A2)
-
64681001 RING, THRUST - BEARING CARRIER TO GEAR HOUSINGRING, THRUST - BEARING CARRIER TO GEAR HOUSING
-
6530-88957T BEARING, Ball, REVERSE GEARBEARING, Ball, REVERSE GEAR
-
6625-31534 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6743567T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6831-30956T BEARING, Needle, BEARING CARRIERBEARING, Needle, BEARING CARRIER
-
6926-76868 SEAL, BEARING CARRIERSEAL, BEARING CARRIER
-
7028-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7114-79447 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
728M2000347 RETAINER, GEAR HOUSINGRETAINER, GEAR HOUSING
-
7397-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7410-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSINGSCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
-
7512-45176 WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDSWASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS
-
7611-34933 NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDSNUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS
-
7710-65210 SCREW, (.375-16 x 1.00), GEAR HOUSING
(LONG)SCREW, (.375-16 x 1.00), GEAR HOUSING
(LONG) -
7710-74727 SCREW, (.375-16 x 6.00), GEAR HOUSING
(EXTRA LONG)SCREW, (.375-16 x 6.00), GEAR HOUSING
(EXTRA LONG) -
7812-835467Q01 THRUST HUBTHRUST HUB
-
7912-31211Q03 WASHER, Splined, PROPELLER NUTWASHER, Splined, PROPELLER NUT
-
8014-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8111-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
8213-423511 LOCKWASHER, Toothed, PROPELLER SHAFTLOCKWASHER, Toothed, PROPELLER SHAFT
-
-26-89238A2 SEAL KITSEAL KIT
-
-27-14697A87 GASKET SETGASKET SET
