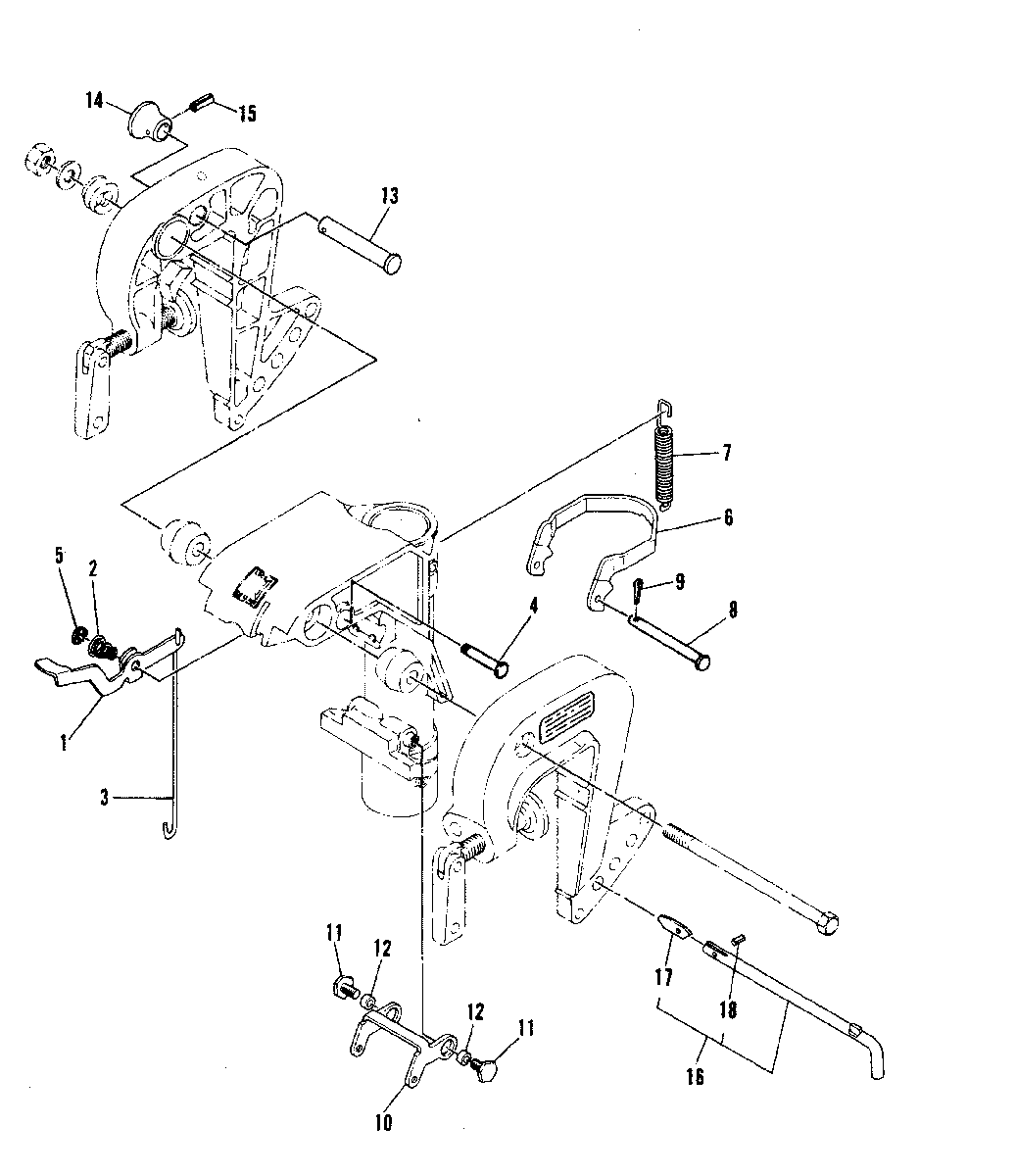

REVERSE TILT LOCK для Mariner - W15 (M) 662-02241 THRU 662-001845
-
№АртикулНазвание
-
182880M LEVER, LOCK/RELEASELEVER, LOCK/RELEASE
-
224-82098M SPRING, LEVER RETURNSPRING, LEVER RETURN
-
384494M ROD, REVERSE LOCK LEVER
SERIAL 00000821-09999999ROD, REVERSE LOCK LEVER
SERIAL 00000821-09999999 -
380235M ROD, REVERSE LOCK LEVER
SERIAL 00000000-00000820ROD, REVERSE LOCK LEVER
SERIAL 00000000-00000820 -
417-18945M PINPIN
-
553-82330M SNAP RINGSNAP RING
-
680233M HOOK, REVERSE LOCK-REARHOOK, REVERSE LOCK-REAR
-
724-82104M SPRING, REVERSE LOCKSPRING, REVERSE LOCK
-
817-81881M PINPIN
-
918-82125M PIN, COTTERPIN, COTTER
-
1080234M HOOK, REVERSE LOCK-FRONTHOOK, REVERSE LOCK-FRONT
-
1110-81702M SCREWSCREW
-
1223-81966M COLLAR, REVERSE LOCK SCREWCOLLAR, REVERSE LOCK SCREW
-
1389-84410M SHAFT, TILT STOPSHAFT, TILT STOP
-
1495426M KNOB, TILT STOPKNOB, TILT STOP
-
1517-82148M PIN, ROLLPIN, ROLL
-
1617-80266M TILT LOCK PIN ASS'YTILT LOCK PIN ASS'Y
-
1782857M STOPPER PLATESTOPPER PLATE
-
1817-82144M PIN, ROLLPIN, ROLL
