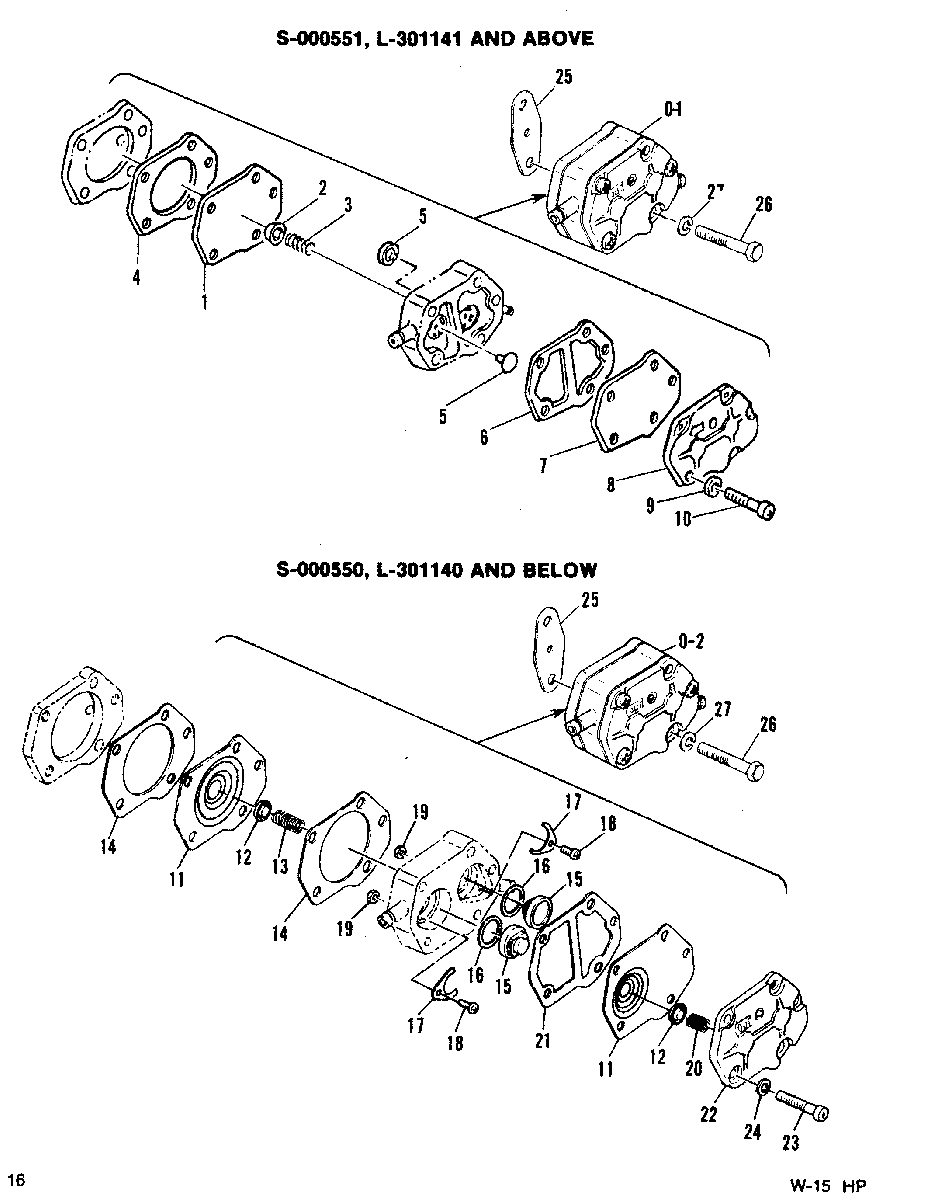

FUEL PUMP для Mariner - W15 (ML) 662-33771 THRU 662-304410
-
№АртикулНазвание
-
0-143113T FUEL PUMP ASS'Y
SERIAL 00000551-09999999FUEL PUMP ASS'Y
SERIAL 00000551-09999999 -
180606M DIAPHRAGMDIAPHRAGM
-
280611M PLATE, SPRING GUIDEPLATE, SPRING GUIDE
-
324-80610M SPRINGSPRING
-
427-80613 GASKET, BODY TO BASEGASKET, BODY TO BASE
-
521-84650M CHECK VALVECHECK VALVE
-
627-80614 GASKET, BODY TO COVERGASKET, BODY TO COVER
-
784141M DIAPHRAGMDIAPHRAGM
-
880607M COVERCOVER
-
910-82522M SCREWSCREW
-
1013-82186M WASHER, LOCKWASHER, LOCK
-
0-243113T FUEL PUMP ASS'Y
SERIAL 00000000-00000550FUEL PUMP ASS'Y
SERIAL 00000000-00000550 -
1180606M DIAPHRAGMDIAPHRAGM
-
1280611M PLATE, SPRING GUIDEPLATE, SPRING GUIDE
-
1324-80610M SPRINGSPRING
-
1427-80613 GASKET, BODY TO BASEGASKET, BODY TO BASE
-
1521-80608M CHECK VALVECHECK VALVE
-
1627-80612M GASKET, CHECK VALVEGASKET, CHECK VALVE
-
1780609M RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
1810-82511M SCREWSCREW
-
1911-82537M NUTNUT
-
2024-80615M SPRINGSPRING
-
2127-80614 GASKET, BODY TO COVERGASKET, BODY TO COVER
-
2280607M COVERCOVER
-
2310-82522M SCREWSCREW
-
2413-82186M WASHER, LOCKWASHER, LOCK
-
2527-80757 GASKET, FUEL PUMP TO CRANKCASE
COMMON PARTSGASKET, FUEL PUMP TO CRANKCASE
COMMON PARTS -
2610-827043M BOLT
COMMON PARTSBOLT
COMMON PARTS -
2713-82212M WASHER, LOCK
COMMON PARTSWASHER, LOCK
COMMON PARTS
