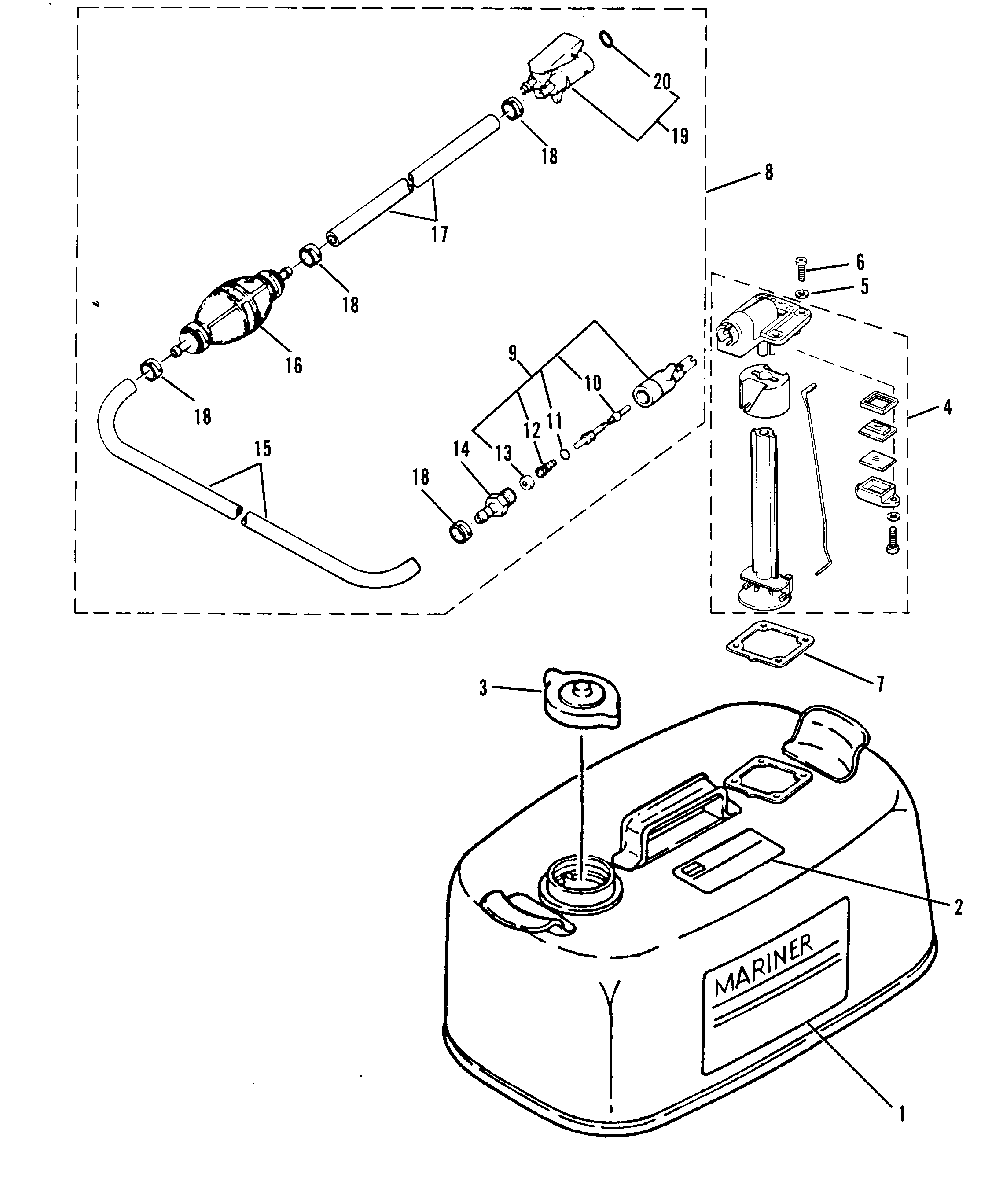

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - W15 662-001846 AND UP
-
№АртикулНазвание
-
137-14617M DECAL, SIDE (ENGLISH)
SERIAL 00004957-09999999DECAL, SIDE (ENGLISH)
SERIAL 00004957-09999999 -
137-14617M DECAL, SIDE (ENGLISH)
SERIAL 00000000-00004956DECAL, SIDE (ENGLISH)
SERIAL 00000000-00004956 -
137-95504M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
237-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M FUEL TANK CAP
SERIAL 00004957-09999999FUEL TANK CAP
SERIAL 00004957-09999999 -
336-18962M FUEL TANK CAP
SERIAL 00000000-00004956FUEL TANK CAP
SERIAL 00000000-00004956 -
495499M FUEL METER ASS'YFUEL METER ASS'Y
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKET, FUEL METER ASS'YGASKET, FUEL METER ASS'Y
-
832-17143M FUEL LINE ASS'Y
SERIAL 00015135-09999999FUEL LINE ASS'Y
SERIAL 00015135-09999999 -
832-17143M FUEL LINE ASS'Y
SERIAL 00000000-00015134FUEL LINE ASS'Y
SERIAL 00000000-00015134 -
930185Q3 BAYONET BODY ASS'YBAYONET BODY ASS'Y
-
1030185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
1125-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1224-30189 SPRING, BAYONET BODY ASS'YSPRING, BAYONET BODY ASS'Y
-
1330188 WASHER, CAPWASHER, CAP
-
1422-63187 FITTING, FUEL LINEFITTING, FUEL LINE
-
1532-94727M HOSE, CONNECTOR HOUSING TO BULB .
SERIAL 00005135-09999999HOSE, CONNECTOR HOUSING TO BULB .
SERIAL 00005135-09999999 -
1532-94727M HOSE, CONNECTOR HOUSING TO BULB .
SERIAL 00004957-00005134HOSE, CONNECTOR HOUSING TO BULB .
SERIAL 00004957-00005134 -
1532-94727M HOSE, CONNECTOR HOUSING TO BULB .
SERIAL 00000000-00004956HOSE, CONNECTOR HOUSING TO BULB .
SERIAL 00000000-00004956 -
1689396Q01 BULB, PRIMER .
SERIAL 00005135-09999999BULB, PRIMER .
SERIAL 00005135-09999999 -
1689396Q01 BULB, PRIMER .
SERIAL 00004957-00005134BULB, PRIMER .
SERIAL 00004957-00005134 -
1732-94727M HOSE BULB TO ENGINE CONNECTOR .
SERIAL 00005135-09999999HOSE BULB TO ENGINE CONNECTOR .
SERIAL 00005135-09999999 -
1732-94727M HOSE BULB TO ENGINE CONNECTOR .
SERIAL 00004957-00005134HOSE BULB TO ENGINE CONNECTOR .
SERIAL 00004957-00005134 -
1732-94727M HOSE BULB TO ENGINE CONNECTOR .
SERIAL 00000000-00004956HOSE BULB TO ENGINE CONNECTOR .
SERIAL 00000000-00004956 -
1854-16725M CLAMP, HOSECLAMP, HOSE
-
1995569M FUEL CONNECTOR .
SERIAL 00005135-09999999FUEL CONNECTOR .
SERIAL 00005135-09999999 -
1980751M FUEL CONNECTOR, ENGINE END
SERIAL 00000000-00005134FUEL CONNECTOR, ENGINE END
SERIAL 00000000-00005134 -
2025-82789M O-RING
SERIAL 00005135-09999999O-RING
SERIAL 00005135-09999999
