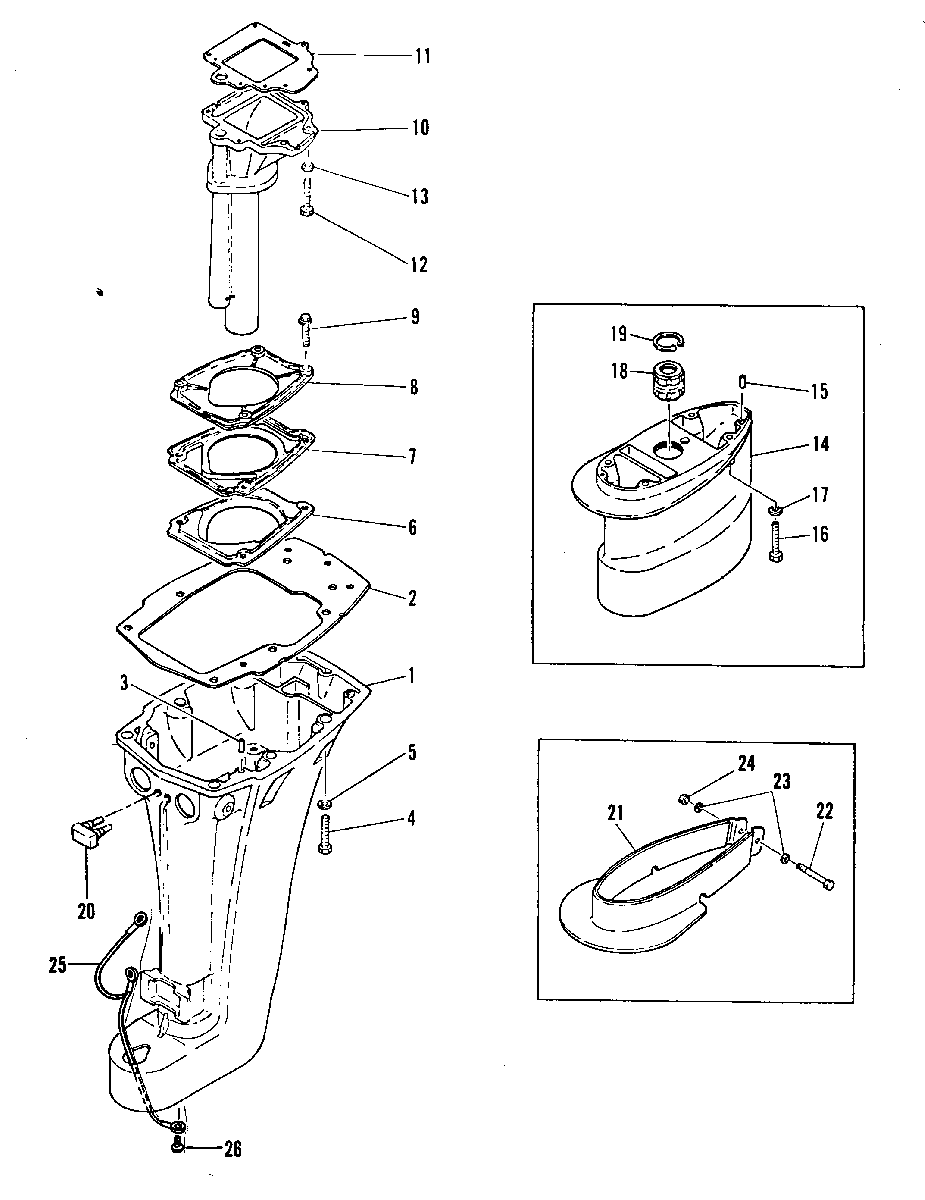

DRIVESHAFT HOUSING для Mariner - W15 684-346712 AND UP
-
№АртикулНазвание
-
11587-811276M DRIVESHAFT HOUSING (SHORT SHAFT)DRIVESHAFT HOUSING (SHORT SHAFT)
-
11587-811277M DRIVESHAFT HOUSING (LONG/SUPER LONG SHAFT)DRIVESHAFT HOUSING (LONG/SUPER LONG SHAFT)
-
227-96618 GASKETGASKET
-
317-82364M DOWEL PINDOWEL PIN
-
410-97749M BOLTBOLT
-
512-82217M WASHERWASHER
-
6810453M PLATEPLATE
-
784041M SEALSEAL
-
883953M SEAL PROTECTORSEAL PROTECTOR
-
910-82476M BOLTBOLT
-
10810454M EXHAUST MANIFOLDEXHAUST MANIFOLD
-
1127-83955M GASKETGASKET
-
1210-84058M BOLTBOLT
-
1312-82214M WASHERWASHER
-
1484042M EXTENSION - SUPER LONG SHAFTEXTENSION - SUPER LONG SHAFT
-
1517-82364M DOWEL PIN - SUPER LONG SHAFTDOWEL PIN - SUPER LONG SHAFT
-
1610-82442M BOLT - SUPER LONG SHAFTBOLT - SUPER LONG SHAFT
-
1712-82217M WASHER - SUPER LONG SHAFTWASHER - SUPER LONG SHAFT
-
1823-815011M BUSHING - SUPER LONG SHAFTBUSHING - SUPER LONG SHAFT
-
1953-83758M SNAP RING - SUPER LONG SHAFTSNAP RING - SUPER LONG SHAFT
-
2094621M STOPPERSTOPPER
-
2184269M SPLASH PLATE - LONG SHAFTSPLASH PLATE - LONG SHAFT
-
2210-827043M BOLT - LONG SHAFTBOLT - LONG SHAFT
-
2312-82214M WASHER - LONG SHAFTWASHER - LONG SHAFT
-
2411-82390M NUT - LONG SHAFTNUT - LONG SHAFT
-
2584-811994M LEAD WIRELEAD WIRE
-
2610-811995M SCREWSCREW
