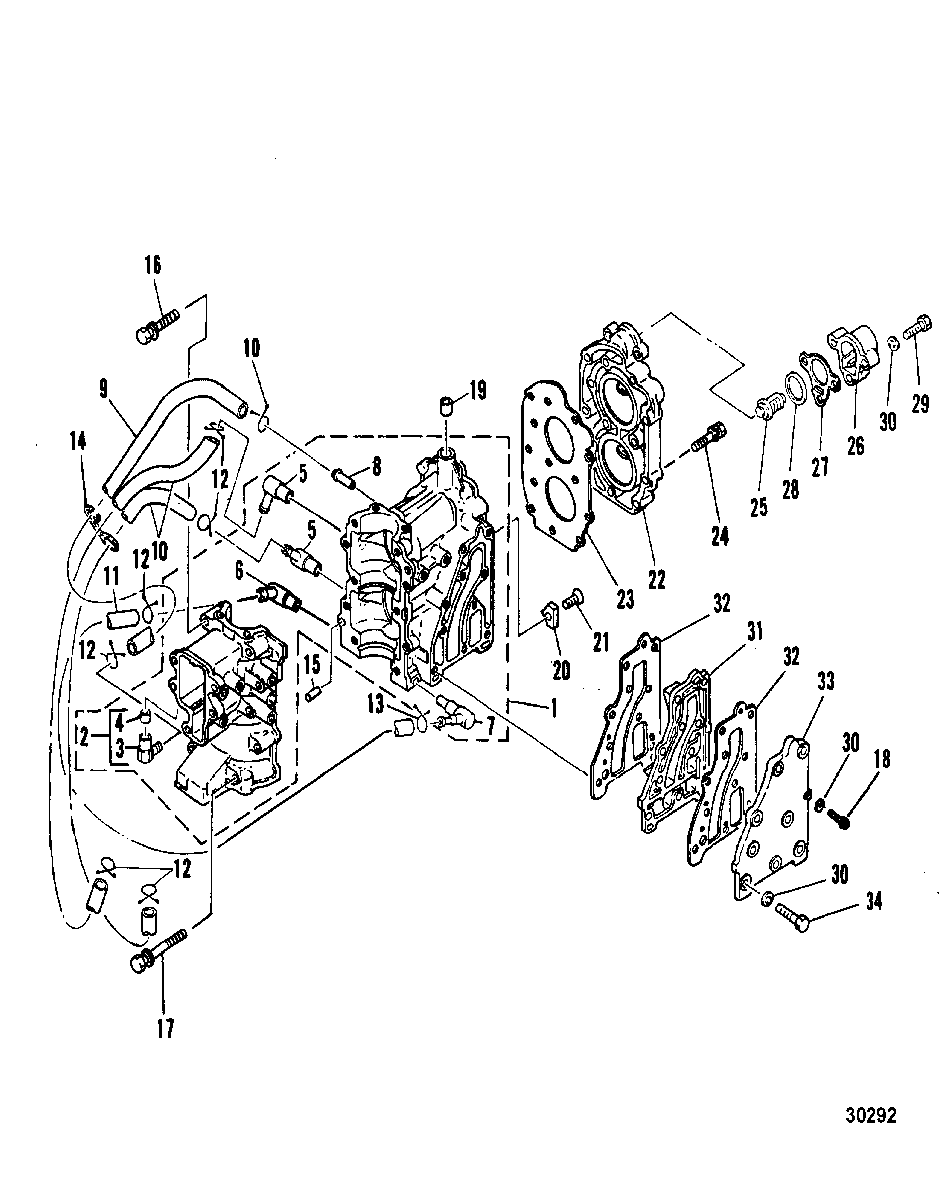

CRANKCASE AND CYLINDER HEAD для Mariner - W8 (M)(W/Marathon) 677-057507 & Up
-
№АртикулНазвание
-
1968-6973M CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
221-80727M CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
322-82975M ELBOW, DRAIN
SN# M-057970/ML-383908/MUL-702820 & BelowELBOW, DRAIN
SN# M-057970/ML-383908/MUL-702820 & Below -
421-80107M VALVE, CHECK
SN# M-057970/ML-383908/MUL-702820 & BelowVALVE, CHECK
SN# M-057970/ML-383908/MUL-702820 & Below -
521-82692M CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
622-84661M FITTING, DrainFITTING, Drain
-
722-83326M FITTING, DRAINFITTING, DRAIN
-
822-80122M FITTING, DRAINFITTING, DRAIN
-
932-811045M HOSEHOSE
-
1032-811045M HOSEHOSE
-
1132-82012M HOSEHOSE
-
1254-82046M CLAMPCLAMP
-
1354-98974M CLAMPCLAMP
-
1482038M CLAMPCLAMP
-
1517-82359M PIN, DowelPIN, Dowel
-
1610-95592M BOLT, WITH WASHERBOLT, WITH WASHER
-
1710-95593M BOLT, WITH WASHERBOLT, WITH WASHER
-
1810-826957M BOLTBOLT
-
1917-14214M PIN, Dowel
SN# M-059525/ML-387112/MUL-702821 & UpPIN, Dowel
SN# M-059525/ML-387112/MUL-702821 & Up -
1917-14214M PIN, DOWEL
SN# M-059524/ML-387111/MUL-702820 & BelowPIN, DOWEL
SN# M-059524/ML-387111/MUL-702820 & Below -
2097-84732M ANODE
SN# M-060864/ML-389233/MUL-702829 & UpANODE
SN# M-060864/ML-389233/MUL-702829 & Up -
2110-95594M SCREWSCREW
-
22968-6964M HEAD, CYLINDERHEAD, CYLINDER
-
2327-95595 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2410-43092M BOLT, (M6 x 14), WITH WASHERBOLT, (M6 x 14), WITH WASHER
-
2511919001 THERMOSTAT
SN# M-057971/ML-383909/MUL-702821 & UpTHERMOSTAT
SN# M-057971/ML-383909/MUL-702821 & Up -
2583282M THERMOSTAT
SN# M-057970/ML-383908/MUL-702820 & BelowTHERMOSTAT
SN# M-057970/ML-383908/MUL-702820 & Below -
2683241M COVER, THERMOSTATCOVER, THERMOSTAT
-
2727-83242 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
2812-81835M WASHER
SN# M-059524/ML-387111/MUL-702820 & BelowWASHER
SN# M-059524/ML-387111/MUL-702820 & Below -
2910-82405M BOLTBOLT
-
3012-82214M WASHERWASHER
-
3195596M COVER, Exhaust, InnerCOVER, Exhaust, Inner
-
3295596M COVER, ExhaustCOVER, Exhaust
-
3395598M COVER, Exhaust, OuterCOVER, Exhaust, Outer
-
3410-83285M BOLTBOLT
-
-95403M POWERHEAD ASSEMBLY
SN# M-057971/ML-383909/MUL-702821 & UpPOWERHEAD ASSEMBLY
SN# M-057971/ML-383909/MUL-702821 & Up -
-83783M POWERHEAD ASSEMBLY
SN# M-057970/ML-383908/MUL-702820 & BelowPOWERHEAD ASSEMBLY
SN# M-057970/ML-383908/MUL-702820 & Below -
-27-84161M GASKET SETGASKET SET
