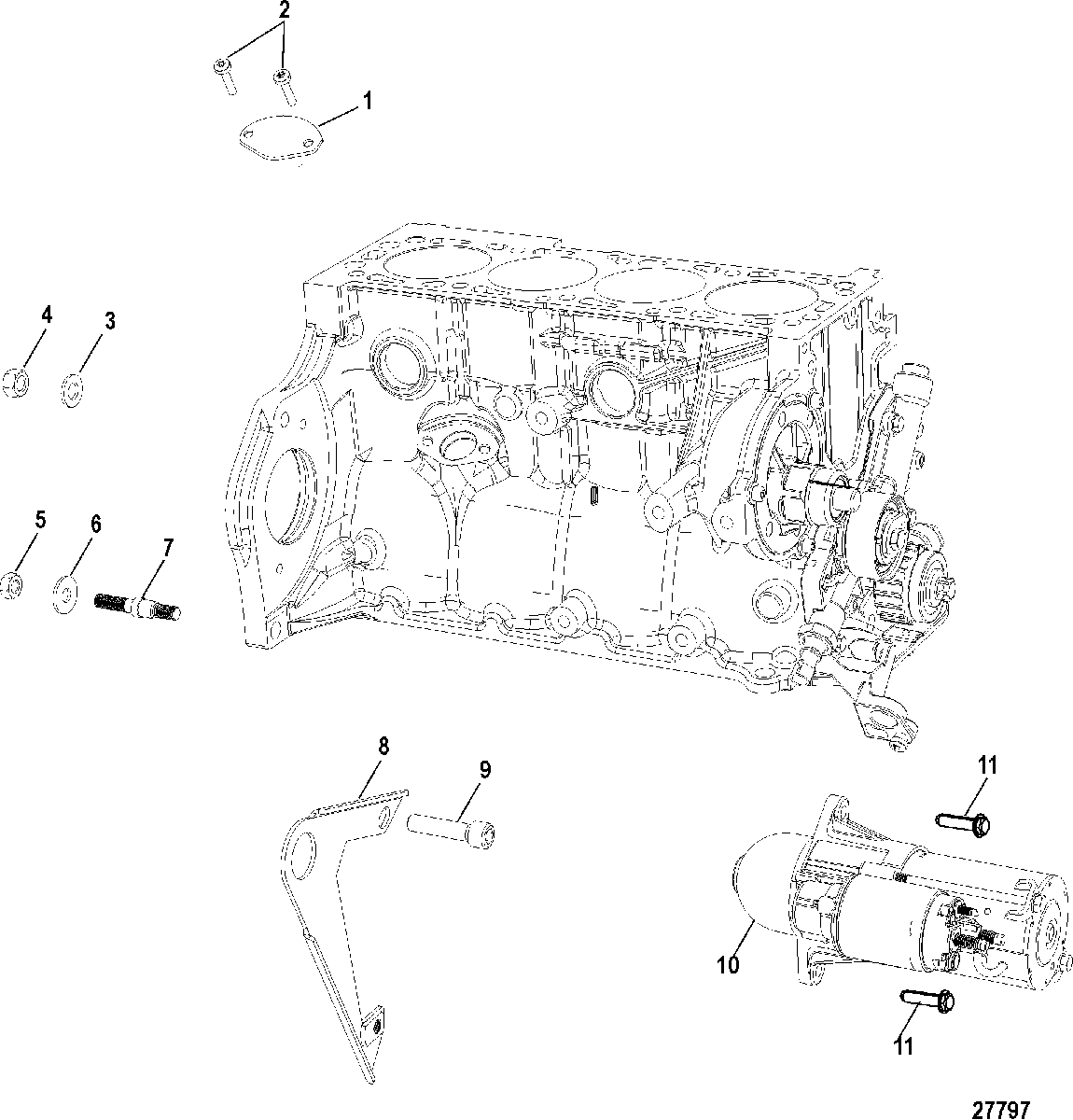

Cylinder Block, Starter для Mercruiser - 100 VAZER EC 1A035295 THRU 1A036006
-
№АртикулНазвание
-
136-8M2000595 CAPCAP
-
210-85593914 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
312-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless SteelWASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
-
411-82375110 NUT, (M12)NUT, (M12)
-
511-40114 NUT, (M10 x 1.5)NUT, (M10 x 1.5)
-
612-4002320 WASHERWASHER
-
716-8M2001034 STUD, Stainless SteelSTUD, Stainless Steel
-
88M2000328 BRACKETBRACKET
-
910-4009150 SCREW, (M12 x 50)SCREW, (M12 x 50)
-
10866512T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1110-4010725 SCREW, (M8 x 25)SCREW, (M8 x 25)
