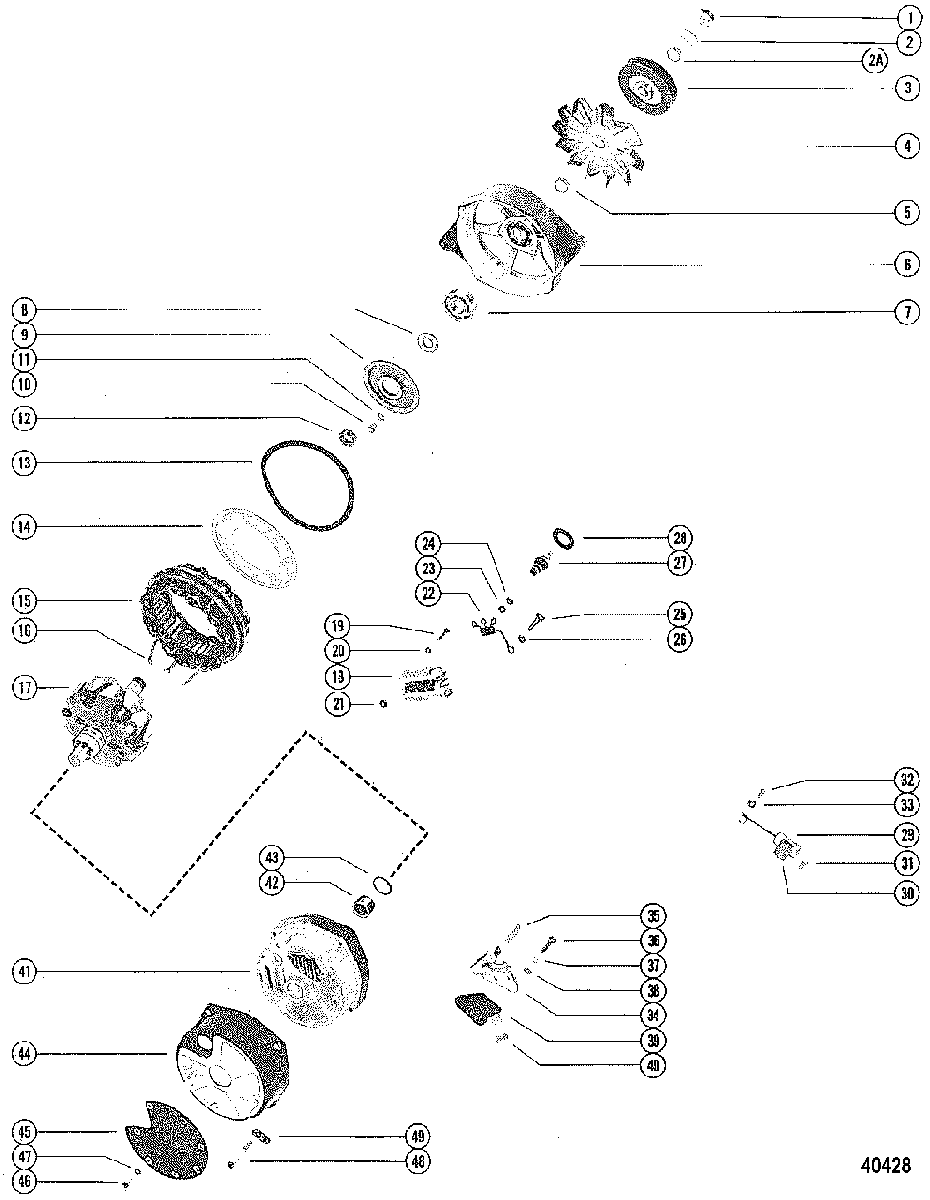

ALTERNATOR ASSEMBLY, COMPLETE для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717
-
№АртикулНазвание
-
-N.S.S. Not Sold Separate, ALTERNATOR ASSEMBLY, Complete
(DELCO REMY #1102939)Not Sold Separate, ALTERNATOR ASSEMBLY, Complete
(DELCO REMY #1102939) -
-N.S.S. Not Sold Separate, ALTERNATOR ASSEMBLY, Complete
(DELCO REMY #1103113)Not Sold Separate, ALTERNATOR ASSEMBLY, Complete
(DELCO REMY #1103113) -
111-33272 NUT, Fan & Pulley to RotorNUT, Fan & Pulley to Rotor
-
213-33309 WASHER, Fan & Pulley NutWASHER, Fan & Pulley Nut
-
2A90667 COLLAR, Shaft, Between Fan & Pulley
(Delco Remy #1103113 Only)COLLAR, Shaft, Between Fan & Pulley
(Delco Remy #1103113 Only) -
338766 PULLEY, Drive End Frame
(Delco Remy # 1102939 Only)PULLEY, Drive End Frame
(Delco Remy # 1102939 Only) -
390669 PULLEY, Drive End Frame
(Delco Remy # 1103113 Only)PULLEY, Drive End Frame
(Delco Remy # 1103113 Only) -
433336 FAN, Drive End FrameFAN, Drive End Frame
-
5N.S.S. Not Sold Separate, COLLAR, Drive End Frame - Outer
(DELCO REMY #1959991)Not Sold Separate, COLLAR, Drive End Frame - Outer
(DELCO REMY #1959991) -
642792 FRAME, Drive End
(Delco Remy # 1103113 Only)FRAME, Drive End
(Delco Remy # 1103113 Only) -
671704 FRAME, Drive End
(Delco Remy # 1102939 Only)FRAME, Drive End
(Delco Remy # 1102939 Only) -
730-56955 BEARING, Ball, Drive End Frame
(Delco Remy # 1102939 Only)BEARING, Ball, Drive End Frame
(Delco Remy # 1102939 Only) -
730-90665 BEARING, Ball, Drive End Frame
(Delco Remy # 1103113 Only)BEARING, Ball, Drive End Frame
(Delco Remy # 1103113 Only) -
812-56958 WASHER, Grease Slinger
(Delco Remy # 1102939 Only)WASHER, Grease Slinger
(Delco Remy # 1102939 Only) -
956956 PLATE, Ball Bearing RetainerPLATE, Ball Bearing Retainer
-
1010-27304 SCREW, Retainer Plate to Drive End Frame
(Delco Remy # 1102939 Only)SCREW, Retainer Plate to Drive End Frame
(Delco Remy # 1102939 Only) -
1010-38028 SCREW, Retainer Plate to Drive End Frame
(Delco Remy # 1103113 Only)SCREW, Retainer Plate to Drive End Frame
(Delco Remy # 1103113 Only) -
1113-35208 WASHER, RETAINER PLATE SCREW
(Delco Remy # 1102939 Only)WASHER, RETAINER PLATE SCREW
(Delco Remy # 1102939 Only) -
12N.S.S. Not Sold Separate, COLLAR, Drive End Frame - Inner (DELCO REMY #1963139)
(Component of Delco Remy # 1102939 Only)Not Sold Separate, COLLAR, Drive End Frame - Inner (DELCO REMY #1963139)
(Component of Delco Remy # 1102939 Only) -
1460694 SCREEN ASSEMBLY, Drive End Frame
(Delco Remy # 1102939 Only)SCREEN ASSEMBLY, Drive End Frame
(Delco Remy # 1102939 Only) -
1490668 SCREEN, Drive End Frame
(Delco Remy # 1103113 Only)SCREEN, Drive End Frame
(Delco Remy # 1103113 Only) -
1556935 STATOR ASSEMBLYSTATOR ASSEMBLY
-
1654-33329 CLIP, Terminal - Stator Leads
(Delco Remy # 1102939 Only)CLIP, Terminal - Stator Leads
(Delco Remy # 1102939 Only) -
1756934 ROTORROTOR
-
1856939 RECTIFIER BRIDGERECTIFIER BRIDGE
-
1910-71702 SCREW, Rectifier Bridge AttachingSCREW, Rectifier Bridge Attaching
-
2013-34383 LOCKWASHER, Rectifier Bridge Attaching
(Delco Remy # 1102939 Only)LOCKWASHER, Rectifier Bridge Attaching
(Delco Remy # 1102939 Only) -
2256938 DIODE TRIODIODE TRIO
-
2313-34383 LOCKWASHER, Diode Trio to Rectifier Bridge Terminal
(Delco Remy # 1102939 Only)LOCKWASHER, Diode Trio to Rectifier Bridge Terminal
(Delco Remy # 1102939 Only) -
2411-21923T NUT, ( 8-32), Diode Trio to Rectifier Bridge TerminalNUT, ( 8-32), Diode Trio to Rectifier Bridge Terminal
-
2510-71703 SCREW, Brush Holder AttachingSCREW, Brush Holder Attaching
-
2613-34383 LOCKWASHER, Ground Brush Holder Screw
(Delco Remy # 1102939 Only)LOCKWASHER, Ground Brush Holder Screw
(Delco Remy # 1102939 Only) -
2760692 TERMINAL PACKAGE, BatteryTERMINAL PACKAGE, Battery
-
2812-56947 WASHER, Sponge Neoprene - Battery Terminal (1-1/4" O.D.)WASHER, Sponge Neoprene - Battery Terminal (1-1/4" O.D.)
-
2958296 CONDENSERCONDENSER
-
30393-2730 BRACKET, CONDENSERBRACKET, CONDENSER
-
3110-60693 SCREW, Condensor AttachingSCREW, Condensor Attaching
-
3210-60693 SCREW, Condensor Lead Terminal AttachingSCREW, Condensor Lead Terminal Attaching
-
3442791 HOLDER AND BRUSH ASSEMBLYHOLDER AND BRUSH ASSEMBLY
-
3524-56943 SPRING, TensionSPRING, Tension
-
3610-60691 SCREW, Brush Holder Attaching - InsulatedSCREW, Brush Holder Attaching - Insulated
-
3978385 REGULATOR, Voltage, TransistorREGULATOR, Voltage, Transistor
-
4054-56933 CLIP, Shorting - Voltage Regulator
(Delco Remy # 1102939 Only)CLIP, Shorting - Voltage Regulator
(Delco Remy # 1102939 Only) -
4160689 FRAME ASSEMBLY, Slip Ring EndFRAME ASSEMBLY, Slip Ring End
-
4231-60690 BEARING, RollerBEARING, Roller
-
4478387 COVER ASSEMBLY, Slip Ring End
(Delco Remy # 1102939 Only)COVER ASSEMBLY, Slip Ring End
(Delco Remy # 1102939 Only) -
4490670 COVER ASSEMBLY, Slip Ring End
(Delco Remy # 1103113 Only)COVER ASSEMBLY, Slip Ring End
(Delco Remy # 1103113 Only) -
4535-60696 SCREEN, Cover
(Delco Remy # 1102939 Only)SCREEN, Cover
(Delco Remy # 1102939 Only) -
4610-56963 SCREW, Screen to Cover
(Delco Remy # 1102939 Only)SCREW, Screen to Cover
(Delco Remy # 1102939 Only) -
4713-35208 WASHER
(Delco Remy # 1102939 Only)WASHER
(Delco Remy # 1102939 Only) -
4810-33322 BOLT, ThruBOLT, Thru
-
4954-56953 CLIP, Ground, Thru BoltCLIP, Ground, Thru Bolt
-
--78386 BOOT, Voltage Regulator TerminalsBOOT, Voltage Regulator Terminals
-
--78388 CONNECTOR
(Delco Remy # 1102939 Only)CONNECTOR
(Delco Remy # 1102939 Only) -
--90671 CONNECTOR
(Delco Remy # 1103113 Only)CONNECTOR
(Delco Remy # 1103113 Only) -
--78389 BRACKET, Connector Attaching
(Delco Remy # 1102939 Only)BRACKET, Connector Attaching
(Delco Remy # 1102939 Only) -
--11-71701 NUT, Bracket Attaching
(Delco Remy # 1102939 Only)NUT, Bracket Attaching
(Delco Remy # 1102939 Only)
