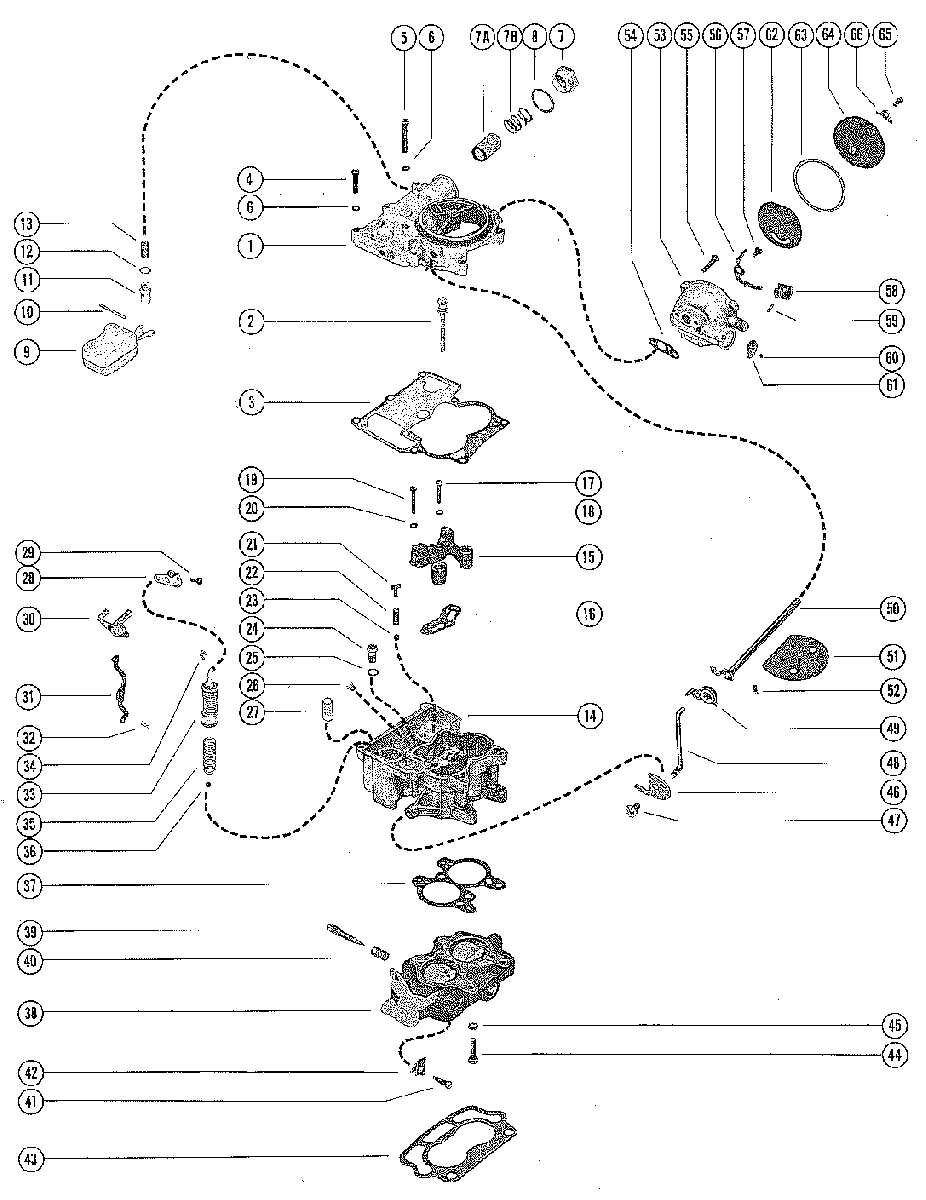

CARBURETOR ASSEMBLY для Mercruiser - 140 GM 181 I/L4 1968-1972 2508261 THRU 3332137

№

Артикул

Название
-

1351-3635A2 CARBURETOR ASSEMBLY, COMPLETE
SERIAL 00000000-02816416

CARBURETOR ASSEMBLY, COMPLETE
SERIAL 00000000-02816416

0 ₽
-

1347-818620R02 CARBURETOR ASSEMBLY, COMPLETE
SERIAL 02816417-02911439

CARBURETOR ASSEMBLY, COMPLETE
SERIAL 02816417-02911439

78 010 ₽
-

1347-818620R02 CARBURETOR ASSEMBLY, COMPLETE
SERIAL 02911440-09999999

CARBURETOR ASSEMBLY, COMPLETE
SERIAL 02911440-09999999

78 010 ₽
1

1397-3852 AIR HORN
SERIAL 00000000-02816416

AIR HORN
SERIAL 00000000-02816416

0 ₽
1

1397-4336 AIR HORN
SERIAL 02816417-02911439

AIR HORN
SERIAL 02816417-02911439

0 ₽
1

1397-4336 AIR HORN
SERIAL 02911440-09999999

AIR HORN
SERIAL 02911440-09999999

0 ₽
2

1397-2256 POWER PISTON ASSEMBLY

POWER PISTON ASSEMBLY

0 ₽
3

90-8M0143356 GASKET, AIR HORN

GASKET, AIR HORN

0 ₽
4

10-33043 SCREW, AIR HORN TO FLOAT BOWL (SHORT)

SCREW, AIR HORN TO FLOAT BOWL (SHORT)

0 ₽
5

10-33048 SCREW, AIR HORN TO FLOAT BOWL (LONG)

SCREW, AIR HORN TO FLOAT BOWL (LONG)

0 ₽
6

13-26996 LOCKWASHER, AIR HORN SCREW

LOCKWASHER, AIR HORN SCREW

60 ₽
7

11-33631 NUT, FUEL INLET
SERIAL 02816417-02911439

NUT, FUEL INLET
SERIAL 02816417-02911439

0 ₽
7

1397-4337 NUT, FUEL INLET
SERIAL 02911440-09999999

NUT, FUEL INLET
SERIAL 02911440-09999999

1 020 ₽
7A

35-53336Q FILTER, FUEL INLET
SERIAL 02911440-09999999

FILTER, FUEL INLET
SERIAL 02911440-09999999

670 ₽
7B

3302-9032 SPRING, FUEL FILTER 1
SERIAL 02911440-09999999

SPRING, FUEL FILTER 1
SERIAL 02911440-09999999

430 ₽
8

90-8M0143356 GASKET, FUEL INLET NUT
SERIAL 02816417-09999999

GASKET, FUEL INLET NUT
SERIAL 02816417-09999999

0 ₽
9

1397-2060 FLOAT ASSEMBLY

FLOAT ASSEMBLY

2 090 ₽
10

17-33037 PIN, HINGE - FLOAT TO AIR HORN

PIN, HINGE - FLOAT TO AIR HORN

0 ₽
11

90-8M0143356 INLET NEEDLE AND SEAT ASSEMBLY

INLET NEEDLE AND SEAT ASSEMBLY

0 ₽
12

90-8M0143356 GASKET, INLET NEEDLE AND SEAT

GASKET, INLET NEEDLE AND SEAT

0 ₽
13

90-8M0143356 STRAINER, INLET NEEDLE AND SEAT

STRAINER, INLET NEEDLE AND SEAT

0 ₽
14

1397-2993 FLOAT BOWL ASSEMBLY
SERIAL 00000000-02816416

FLOAT BOWL ASSEMBLY
SERIAL 00000000-02816416

0 ₽
14

1397-4258 FLOAT BOWL ASSEMBLY
SERIAL 02816417-09999999

FLOAT BOWL ASSEMBLY
SERIAL 02816417-09999999

0 ₽
15

1397-2640 VENTURI CLUSTER ASSEMBLY, FLOAT BOWL
SERIAL 00000000-02911439

VENTURI CLUSTER ASSEMBLY, FLOAT BOWL
SERIAL 00000000-02911439

0 ₽
15

1397-4259 VENTURI CLUSTER ASSEMBLY, FLOAT BOWL
SERIAL 02911440-09999999

VENTURI CLUSTER ASSEMBLY, FLOAT BOWL
SERIAL 02911440-09999999

0 ₽
16

90-8M0143356 GASKET, VENTURI CLUSTER

GASKET, VENTURI CLUSTER

0 ₽
17

10-33034 SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)

SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)

0 ₽
18

90-8M0143356 GASKET, VENTURI CLUSTER SCREW (CENTER)

GASKET, VENTURI CLUSTER SCREW (CENTER)

0 ₽
19

10-33033 SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)

SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)

0 ₽
20

13-26995 LOCKWASHER, VENTURI CLUSTER SCREW (OUTER)

LOCKWASHER, VENTURI CLUSTER SCREW (OUTER)

60 ₽
21

90-8M0143356 GUIDE, PUMP DISCHARGE - FLOAT BOWL

GUIDE, PUMP DISCHARGE - FLOAT BOWL

0 ₽
22

90-8M0143356 SPRING, PUMP DISCHARGE - FLOAT BOWL

SPRING, PUMP DISCHARGE - FLOAT BOWL

0 ₽
23

90-8M0143356 BALL, PUMP DISCHARGE - FLOAT BOWL

BALL, PUMP DISCHARGE - FLOAT BOWL

0 ₽
24

90-8M0143356 POWER VALVE ASSEMBLY, FLOAT BOWL

POWER VALVE ASSEMBLY, FLOAT BOWL

0 ₽
25

90-8M0143356 GASKET, POWER VALVE

GASKET, POWER VALVE

0 ₽
26

1397-2994 JET, FLOAT BOWL (STANDARD)
SERIAL 00000000-02816416

JET, FLOAT BOWL (STANDARD)
SERIAL 00000000-02816416

0 ₽
26

1397-2447 JET, FLOAT BOWL (STANDARD)
SERIAL 02816417-09999999

JET, FLOAT BOWL (STANDARD)
SERIAL 02816417-09999999

0 ₽
27

90-8M0143356 STRAINER, PUMP INLET

STRAINER, PUMP INLET

0 ₽
28

1397-2048 LEVER, PUMP - AIR HORN

LEVER, PUMP - AIR HORN

0 ₽
29

10-33047 SCREW, AIR HORN PUMP LEVER

SCREW, AIR HORN PUMP LEVER

0 ₽
30

1397-2054 PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN

PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN

0 ₽
31

1397-2051 ROD, PUMP

ROD, PUMP

0 ₽
32

90-8M0143356 CLIP, RETAINER - PUMP ROD

CLIP, RETAINER - PUMP ROD

0 ₽
33

90-8M0143356 PUMP ASSEMBLY, FLOAT BOWL

PUMP ASSEMBLY, FLOAT BOWL

0 ₽
34

90-8M0143356 CLIP, RETAINER - FLOAT BOWL PUMP

CLIP, RETAINER - FLOAT BOWL PUMP

0 ₽
35

90-8M0143356 SPRING, PUMP RETURN - FLOAT BOWL

SPRING, PUMP RETURN - FLOAT BOWL

0 ₽
36

90-8M0143356 BALL, CHECK - PUMP INLET - FLOAT BOWL

BALL, CHECK - PUMP INLET - FLOAT BOWL

0 ₽
37

90-8M0143356 GASKET, THROTTLE BODY

GASKET, THROTTLE BODY

0 ₽
38

1397-2639 THROTTLE BODY ASSEMBLY

THROTTLE BODY ASSEMBLY

0 ₽
39

1397-2120 IDLE ADJUSTING NEEDLE, THROTTLE BODY(INCLUDED WITH 0)

IDLE ADJUSTING NEEDLE, THROTTLE BODY(INCLUDED WITH 0)

0 ₽
40

24-33050 SPRING, IDLE ADJUSTING NEEDLE

SPRING, IDLE ADJUSTING NEEDLE

0 ₽
41

1397-2638 IDLE TOP SCREW, THROTTLE BODY

IDLE TOP SCREW, THROTTLE BODY

0 ₽
42

54-39108 CLIP, IDLE STOP SCREW

CLIP, IDLE STOP SCREW

0 ₽
43

27-64692 GASKET, CARBURETOR FLANGE(INCLUDED WITH 0,3,4)

GASKET, CARBURETOR FLANGE(INCLUDED WITH 0,3,4)

270 ₽
44

10-33052 SCREW, THROTTLE BODY TO FLOAT BOWL

SCREW, THROTTLE BODY TO FLOAT BOWL

0 ₽
45

13-21547 LOCKWASHER, THROTTLE BODY SCREW

LOCKWASHER, THROTTLE BODY SCREW

0 ₽
46

1397-8877 CAM, FAST IDLE - FLOAT BOWL

CAM, FAST IDLE - FLOAT BOWL

0 ₽
47

10-33042 SCREW< FAST IDLE CAM TO FLOAT BOWL

SCREW< FAST IDLE CAM TO FLOAT BOWL

0 ₽
47

10-33042 SCREW, FAST IDLE CAM TO FLOAT BOWL

SCREW, FAST IDLE CAM TO FLOAT BOWL

0 ₽
48

1397-2052 ROD, CHOKE

ROD, CHOKE

0 ₽
49

1397-4257 CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
SERIAL 00000000-02816416

CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
SERIAL 00000000-02816416

0 ₽
49

1397-4257 CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
SERIAL 02816417-09999999

CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
SERIAL 02816417-09999999

0 ₽
50

1397-2632 CHOKE SHAFT ASSEMBLY

CHOKE SHAFT ASSEMBLY

0 ₽
51

1397-4358 VALVE, CHOKE - CHOKE SHAFT
SERIAL 00000000-02816416

VALVE, CHOKE - CHOKE SHAFT
SERIAL 00000000-02816416

0 ₽
51

1397-4358 VALVE, CHOKE - CHOKE SHAFT
SERIAL 02816417-02911439

VALVE, CHOKE - CHOKE SHAFT
SERIAL 02816417-02911439

0 ₽
52

10-33045 SCREW, CHOKE VALVE TO CHOKE SHAFT

SCREW, CHOKE VALVE TO CHOKE SHAFT

0 ₽
53

1397-2630 CHOKE HOUSING ASSEMBLY

CHOKE HOUSING ASSEMBLY

0 ₽
54

90-8M0143356 GASKET, CHOKE HOUSING

GASKET, CHOKE HOUSING

0 ₽
54

90-8M0143356 GASKET, CHOKE HOUSING

GASKET, CHOKE HOUSING

0 ₽
55

10-33053 SCREW, CHOKE HOUSING TO AIR HORN

SCREW, CHOKE HOUSING TO AIR HORN

0 ₽
54

90-8M0143356 GASKET, CHOKE HOUSING

GASKET, CHOKE HOUSING

0 ₽
55

10-33053 SCREW, CHOKE HOUSING TO AIR HORN

SCREW, CHOKE HOUSING TO AIR HORN

0 ₽
56

1397-2629 LEVER ASSEMBLY, CHOKE PISTON

LEVER ASSEMBLY, CHOKE PISTON

0 ₽
57

10-33056 SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING

SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING

0 ₽
58

1397-2059 CHOKE PISTON, CHOKE HOUSING

CHOKE PISTON, CHOKE HOUSING

0 ₽
59

17-33049 PIN, CHOKE PISTON TO CHOKE PISTON LEVER

PIN, CHOKE PISTON TO CHOKE PISTON LEVER

0 ₽
60

1397-2050 PLUG, BALL - CHOKE HOUSING

PLUG, BALL - CHOKE HOUSING

0 ₽
61

19-33041 WELCH PLUG, CHOKE HOUSING

WELCH PLUG, CHOKE HOUSING

0 ₽
62

1397-2057 PLATE, BAFFLE - CHOKE HOUSING

PLATE, BAFFLE - CHOKE HOUSING

0 ₽
63

90-8M0143356 GASKET, STAT COVER AND COIL

GASKET, STAT COVER AND COIL

0 ₽
64

1397-2648 STATE COVER AND COIL ASSEMBLY

STATE COVER AND COIL ASSEMBLY

0 ₽
65

10-33047 SCREW, STAT COVER AND COIL TO CHOKE HOUSING

SCREW, STAT COVER AND COIL TO CHOKE HOUSING

0 ₽
66

54-33036 RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW

RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW

220 ₽
--

823427A1 OVERHAUL KIT

OVERHAUL KIT

3 270 ₽
--

823427A1 POWER CARBURETOR KIT

POWER CARBURETOR KIT

3 270 ₽
--

823427A1 GASKET KIT

GASKET KIT

3 270 ₽
--

1397-2992 ALTITUDE KIT (5,000 FT.)

ALTITUDE KIT (5,000 FT.)

0 ₽
--

1397-2214 ALTITUDE KIT (10,000 FT.)

ALTITUDE KIT (10,000 FT.)

0 ₽
