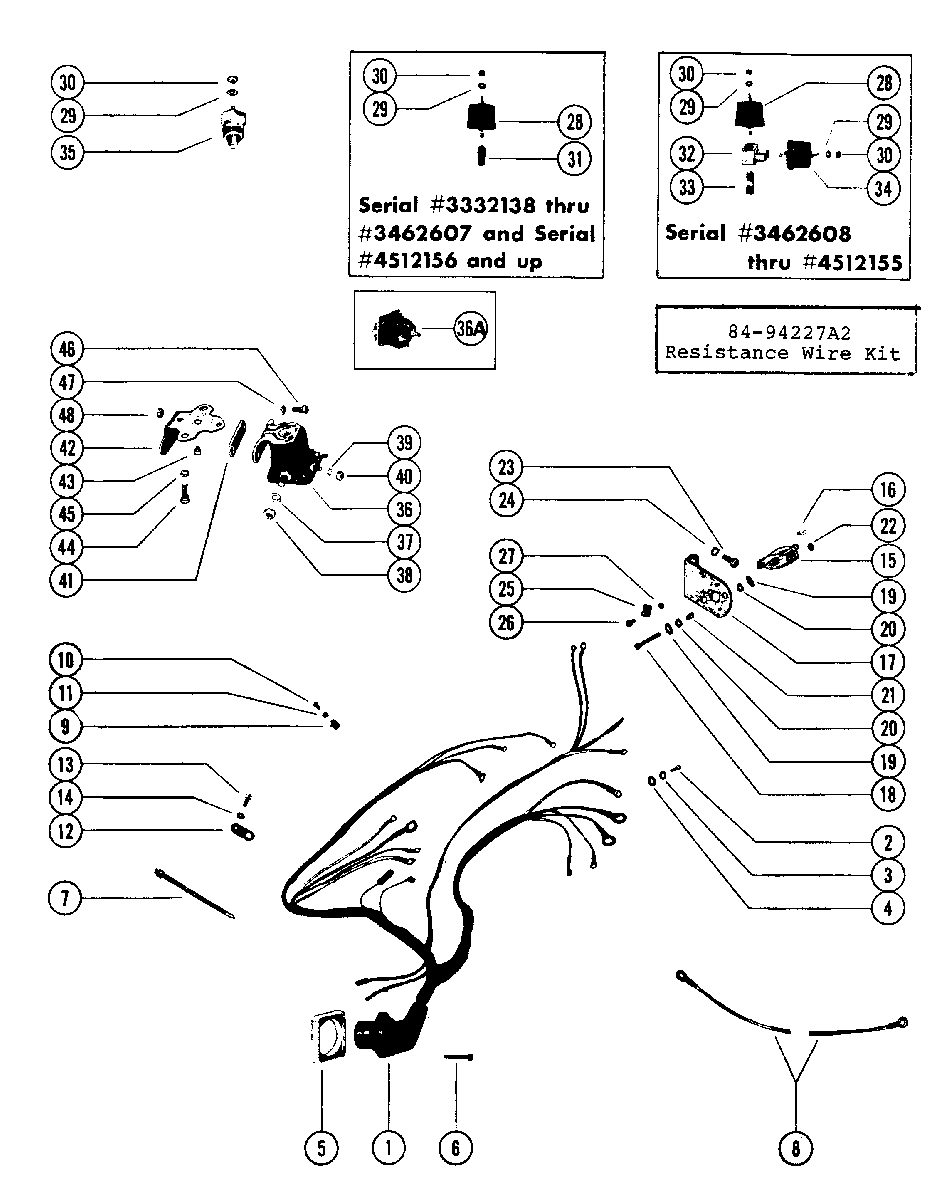

WIRING HARNESS,CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 140 GM 181 I/L4 1972-1978 3332138 THRU 5157668
-
№АртикулНазвание
-
184-61975 WIRING HARNESS, EXTERNAL
SERIAL 03332138-03462607WIRING HARNESS, EXTERNAL
SERIAL 03332138-03462607 -
184-63715A1 WIRING HARNESS, EXTERNAL
SERIAL 03462608-03771644WIRING HARNESS, EXTERNAL
SERIAL 03462608-03771644 -
184-86673A2 WIRING HARNESS, EXTERNAL
SERIAL 03771645-09999999WIRING HARNESS, EXTERNAL
SERIAL 03771645-09999999 -
210-20055 SCREW, WIRING HARNESS LEAD TO ALTERNATOR (3/8')SCREW, WIRING HARNESS LEAD TO ALTERNATOR (3/8')
-
313-26996 LOCKWASHER, WIRING HARNESS LEAD SCREWLOCKWASHER, WIRING HARNESS LEAD SCREW
-
412-30164 WASHER, WIRING HARNESS LEAD SCREWWASHER, WIRING HARNESS LEAD SCREW
-
526079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKETPLATE, WIRING HARNESS TO MOUNTING BRACKET
-
610-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4')SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4')
-
761990 STA-STRAP, STARTER SOLENOID LEAD
SERIAL 03332138-00346260STA-STRAP, STARTER SOLENOID LEAD
SERIAL 03332138-00346260 -
839593 BATTERY CABLE POSITIVE
SERIAL 03332138-00346260BATTERY CABLE POSITIVE
SERIAL 03332138-00346260 -
839594 BATTERY CABLE NEGATIVE
SERIAL 03332138-00346260BATTERY CABLE NEGATIVE
SERIAL 03332138-00346260 -
954-54178 CLAMP, WIRING HARNESS TO CVLINDER BLOCK
SERIAL 03332138-00346260CLAMP, WIRING HARNESS TO CVLINDER BLOCK
SERIAL 03332138-00346260 -
1010-98259 SCREW, WIRING HARNESS HARNESS CLAMP ATTACHING (1/2')
SERIAL 03332138-00346260SCREW, WIRING HARNESS HARNESS CLAMP ATTACHING (1/2')
SERIAL 03332138-00346260 -
1113-35048 LOCKWASHER, WIRING HARNESS CLAMP SCREW
SERIAL 03332138-00346260LOCKWASHER, WIRING HARNESS CLAMP SCREW
SERIAL 03332138-00346260 -
1263770 TAB, HARNESS ATTACHING
SERIAL 00462608-09999999TAB, HARNESS ATTACHING
SERIAL 00462608-09999999 -
1310-65746 SCREW, HARNESS TO ROCKER COVER
SERIAL 00462608-09999999SCREW, HARNESS TO ROCKER COVER
SERIAL 00462608-09999999 -
1412-20583 WASTHER, HARNESS TO ROCKER COVER SCREW
SERIAL 00462608-09999999WASTHER, HARNESS TO ROCKER COVER SCREW
SERIAL 00462608-09999999 -
1559816 CIRCUIT BREAKER
SERIAL 03332138-03771544CIRCUIT BREAKER
SERIAL 03332138-03771544 -
1610-36046 SCREW, WIRING HARNESS LEAD TO CIRCUIT BREAKER
SERIAL 03332138-03771544SCREW, WIRING HARNESS LEAD TO CIRCUIT BREAKER
SERIAL 03332138-03771544 -
1588-65093 CIRCUIT BREAKER
SERIAL 03771645-04918569CIRCUIT BREAKER
SERIAL 03771645-04918569 -
--11-68219 NUT, HARNESS TO CIRCUIT BREAKER STUD
SERIAL 03771645-04918569NUT, HARNESS TO CIRCUIT BREAKER STUD
SERIAL 03771645-04918569 -
--13-26996 LOCKWASHER, HARNESS TO CIRCUIT BREAKER STUD
SERIAL 03771645-04918569LOCKWASHER, HARNESS TO CIRCUIT BREAKER STUD
SERIAL 03771645-04918569 -
1588-11178A01 CIRCUIT BREAKER
SERIAL 04918570-09999999CIRCUIT BREAKER
SERIAL 04918570-09999999 -
1790923 BRACKET, CIRCUIT BREAKER
SERIAL 03332138-03462607BRACKET, CIRCUIT BREAKER
SERIAL 03332138-03462607 -
1790923 BRACKET, CIRCUIT BREAKER
SERIAL 03462608-09999999BRACKET, CIRCUIT BREAKER
SERIAL 03462608-09999999 -
1810-47618 SCREW, CIRCUIT BREAKER TO BRACKET (1')SCREW, CIRCUIT BREAKER TO BRACKET (1')
-
1912-47960 WASHER, CIRCUIT BREAKER ATTACHING SCREWWASHER, CIRCUIT BREAKER ATTACHING SCREW
-
2025-61999 GROMMET, CIRCUIT BREAKER ATTACHING SCREWGROMMET, CIRCUIT BREAKER ATTACHING SCREW
-
2123-61998 SPACER, CIRCUIT BREAKER ATTACHING SCREW
SERIAL 03332138-03462607SPACER, CIRCUIT BREAKER ATTACHING SCREW
SERIAL 03332138-03462607 -
2123-63431 SPACER, CIRCUIT BREAKER ATTACHING SCREW
SERIAL 03462608-09999999SPACER, CIRCUIT BREAKER ATTACHING SCREW
SERIAL 03462608-09999999 -
2211-46438 NUT, CIRCUIT BREAKER ATTACHING SCREWNUT, CIRCUIT BREAKER ATTACHING SCREW
-
2310-21077 SCREW, CIRCUIT BREAKER BRACKET TO CVLINDER HEAD (7/8') SERI
SERIAL 03332138-03462607SCREW, CIRCUIT BREAKER BRACKET TO CVLINDER HEAD (7/8') SERI
SERIAL 03332138-03462607 -
2310-98261 SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (3/4')
SERIAL 03332138-03462607SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (3/4')
SERIAL 03332138-03462607 -
2310-21077 SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (7/8')-SERI
SERIAL 03462608-09999999SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (7/8')-SERI
SERIAL 03462608-09999999 -
2413-35048 LOCKWASHER, CIRCUIT BREAKER BRACKET SCREWLOCKWASHER, CIRCUIT BREAKER BRACKET SCREW
-
2554-60517 CLAMP, WIRING HARNESS TO BRACKET
SERIAL 03332138-00377164CLAMP, WIRING HARNESS TO BRACKET
SERIAL 03332138-00377164 -
2610-37656 SCREW, CLAMP TO BRACKET (9/16')
SERIAL 03332138-00377164SCREW, CLAMP TO BRACKET (9/16')
SERIAL 03332138-00377164 -
2711-46438 NUT, CLAMP ATTACHING SCREW
SERIAL 03332138-00377164NUT, CLAMP ATTACHING SCREW
SERIAL 03332138-00377164 -
288M0068784 OIL PRESSURE SENDER ASSEMBLYOIL PRESSURE SENDER ASSEMBLY
-
2913-26996 WASHER, WATER SENDER/OIL PRESSURE SENDER TERMINAL (#10)WASHER, WATER SENDER/OIL PRESSURE SENDER TERMINAL (#10)
-
3011-68219 NUT, WATER SENDER/OIL PRESSURE SENDER TERMINAL (10-32)NUT, WATER SENDER/OIL PRESSURE SENDER TERMINAL (10-32)
-
3122-32974 ADAPTOR, OIL PRESSURE SENDER TO CYLINDER BLOCK
SERIAL 03332138-03462607ADAPTOR, OIL PRESSURE SENDER TO CYLINDER BLOCK
SERIAL 03332138-03462607 -
3222-52930 FITTING, TEE - OIL PRESSURE
SERIAL 03462608-04512155FITTING, TEE - OIL PRESSURE
SERIAL 03462608-04512155 -
3322-64698 FITTING, NIPPLE - OIL PRESSURE
SERIAL 03462608-04512155FITTING, NIPPLE - OIL PRESSURE
SERIAL 03462608-04512155 -
3487-805605A1 SWITCH, OIL PRESSURE
SERIAL 03462608-04512155SWITCH, OIL PRESSURE
SERIAL 03462608-04512155 -
35806490T WATER TEMPERATURE SENDER ASSEMBLYWATER TEMPERATURE SENDER ASSEMBLY
-
3625661T1 STARTER SOLENIOD ASSEMBLY
SERIAL 00000000-04460664STARTER SOLENIOD ASSEMBLY
SERIAL 00000000-04460664 -
36A89-853654A1 STARTER SOLENOID
SERIAL 04460665-09999999STARTER SOLENOID
SERIAL 04460665-09999999 -
3713-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16')LOCKWASHER, STARTER SOLENOID TERMINAL (5/16')
-
3811-68292 NUT, STARTER SOLENOID TERMINAL (5/16')NUT, STARTER SOLENOID TERMINAL (5/16')
-
3913-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
4011-68219 NUT, STARTE SOLENOID TERMINAL (10-32)NUT, STARTE SOLENOID TERMINAL (10-32)
-
4136177 INSULATOR, STARTER SOLENOID BRACKET
SERIAL 03332138-03462607INSULATOR, STARTER SOLENOID BRACKET
SERIAL 03332138-03462607 -
4236176A2 BRACKET ASSEMBLY, STARTER SOLENOID MOUNTING
SERIAL 03332138-03462607BRACKET ASSEMBLY, STARTER SOLENOID MOUNTING
SERIAL 03332138-03462607 -
4349342 BUMPER, MOUNTING BRACKET
SERIAL 03332138-03462607BUMPER, MOUNTING BRACKET
SERIAL 03332138-03462607 -
4410-98257 SCREW, MOUNTING BRACKET TO MANIFOLD BODY (1/2')
SERIAL 03332138-03462607SCREW, MOUNTING BRACKET TO MANIFOLD BODY (1/2')
SERIAL 03332138-03462607 -
4513-26993 LOCKWASHER, MOUNTING BRACKET SCREW
SERIAL 03332138-03462607LOCKWASHER, MOUNTING BRACKET SCREW
SERIAL 03332138-03462607 -
4610-69028 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (3/4')SCREW, STARTER SOLENOID TO MOUNTING BRACKET (3/4')
-
4713-26992 LOCKWASHER, STARTER SOLENOID SCREWLOCKWASHER, STARTER SOLENOID SCREW
-
4811-826709109 NUT, STARTER SOLENIOD SCREWNUT, STARTER SOLENIOD SCREW
-
--33865 WRAP, ENGINE HARNESSWRAP, ENGINE HARNESS
