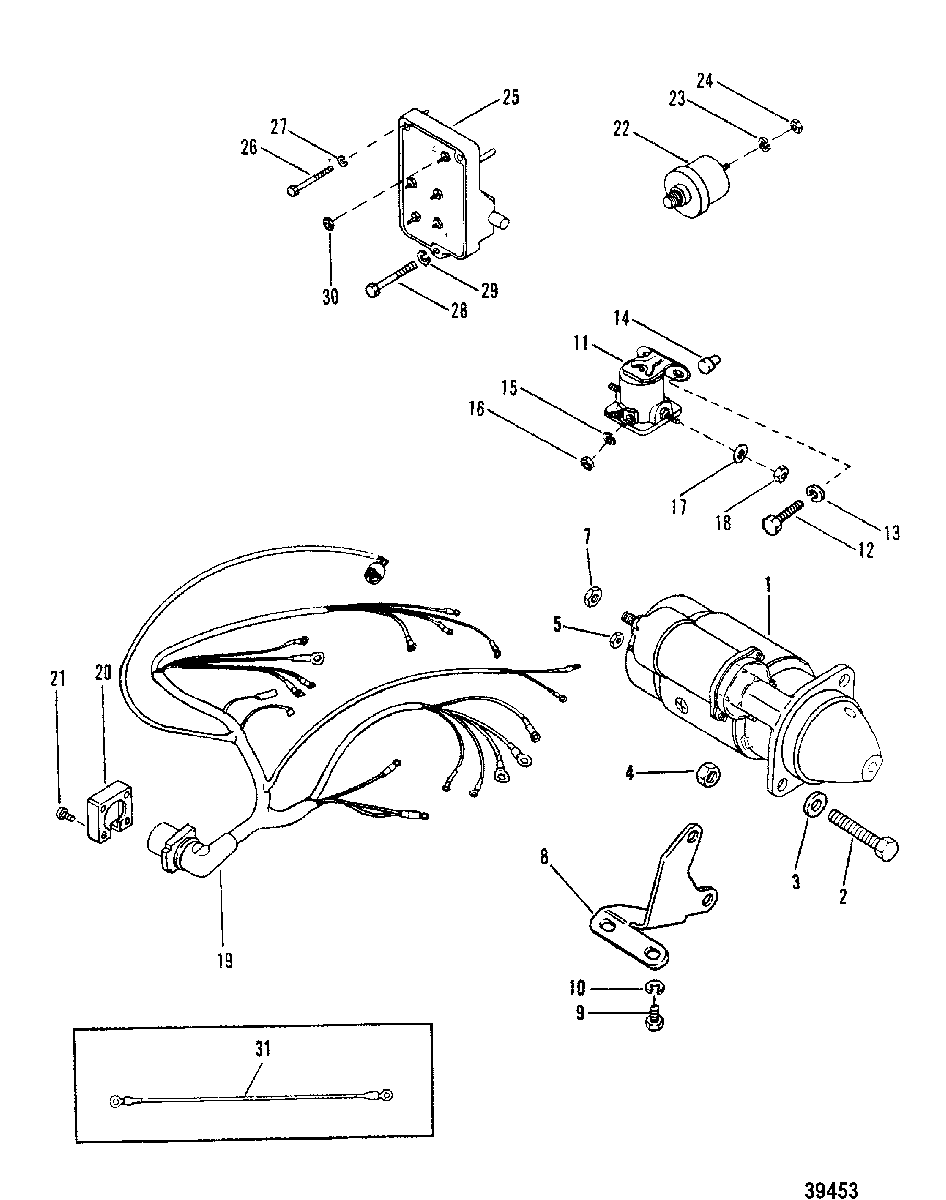

STARTER MOTOR AND WIRING HARNESS для Mercruiser - 165 (2 BBL.) MERCURY 224 I/L4 1987 0B434941 THRU 0B774251
-
№АртикулНазвание
-
150-97499R3 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-48130 SCREW, (.375-16 x 4.500), STARTER MOTORSCREW, (.375-16 x 4.500), STARTER MOTOR
-
312-25909 WASHER, (.406 x .812 x .065), STARTER MOTOR SCREWWASHER, (.406 x .812 x .065), STARTER MOTOR SCREW
-
411-82671112 NUT, STARTER MOTOR SCREWNUT, STARTER MOTOR SCREW
-
511-29031 NUT, (1/4-20), STARTER MOTOR TERMINAL (1/4-20)NUT, (1/4-20), STARTER MOTOR TERMINAL (1/4-20)
-
711-26419 NUT, (#8-32) Brass, STARTER MOTOR TERMINALNUT, (#8-32) Brass, STARTER MOTOR TERMINAL
-
711-15874 NUT, (M10), BATTERY TERMINALNUT, (M10), BATTERY TERMINAL
-
711-400211 NUT, (M5) Stainless Steel, SOLENOID SWITCH TERMINALNUT, (M5) Stainless Steel, SOLENOID SWITCH TERMINAL
-
897259A1 BRACKET, STARTER MOTOR TO CYLINDER BLOCKBRACKET, STARTER MOTOR TO CYLINDER BLOCK
-
910-98261 SCREW, (.375-16 x .750), BRACKET TO CYLINDER BLOCKSCREW, (.375-16 x .750), BRACKET TO CYLINDER BLOCK
-
1013-35048 LOCKWASHER, (.375), BRACKET SCREWLOCKWASHER, (.375), BRACKET SCREW
-
1165057T1 SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
1210-28635 SCREW, (.250-20 x .620) Stainless Steel, SOLENOID TO CYLINDER BLOCKSCREW, (.250-20 x .620) Stainless Steel, SOLENOID TO CYLINDER BLOCK
-
1313-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREWLOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
-
14269011 BUMPER, SOLENOIDBUMPER, SOLENOID
-
1513-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINAL
-
1611-68219 NUT, (#10-32) Stainless Steel, SOLENOID TERMINALNUT, (#10-32) Stainless Steel, SOLENOID TERMINAL
-
1713-26993 LOCKWASHER, (.312), SOLENOID TERMINALLOCKWASHER, (.312), SOLENOID TERMINAL
-
1811-22053 NUT, (.312-24), SOLENOID TERMINALNUT, (.312-24), SOLENOID TERMINAL
-
1984-98269A9 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2026079A2 PLATE
MetalPLATE
Metal -
2026079A2 PLATE KIT, Wire Harness Mount
PlasticPLATE KIT, Wire Harness Mount
Plastic -
2110-34696 SCREW, (#8-32 x .750), Use with Metal PlateSCREW, (#8-32 x .750), Use with Metal Plate
-
2110-15001 SCREW, (#8-16 x .875)
Use with Plastic Plate KitSCREW, (#8-16 x .875)
Use with Plastic Plate Kit -
228M0068784 SENDER, OIL PRESSURESENDER, OIL PRESSURE
-
2313-26996 LOCKWASHER, (#10) Stainless Steel, SENDING UNIT TERMINALLOCKWASHER, (#10) Stainless Steel, SENDING UNIT TERMINAL
-
2411-68219 NUT, (#10-32) Stainless Steel, SENDING UNIT TERMINALNUT, (#10-32) Stainless Steel, SENDING UNIT TERMINAL
-
2599502A13 REGULATOR ASSEMBLY, VoltageREGULATOR ASSEMBLY, Voltage
-
2610-98255 SCREW, (.250-20 x 2.25) , VOLTAGE REGULATOR (2-1/4")SCREW, (.250-20 x 2.25) , VOLTAGE REGULATOR (2-1/4")
-
2713-26992 LOCKWASHER, (.250) Stainless Steel, VOLTAGE REGULATOR SCREWLOCKWASHER, (.250) Stainless Steel, VOLTAGE REGULATOR SCREW
-
2810-34354 SCREW, (.375-16 x 1.50), VOLTAGE REGULATORSCREW, (.375-16 x 1.50), VOLTAGE REGULATOR
-
2913-58643 LOCKWASHER, (.375), VOLTAGE REGULATOR SCREWLOCKWASHER, (.375), VOLTAGE REGULATOR SCREW
-
3011-68219 NUT, (#10-32) Stainless Steel, VOLTAGE REGULATOR TERMINALSNUT, (#10-32) Stainless Steel, VOLTAGE REGULATOR TERMINALS
-
3184-94227A2 RESISTOR WIRE KIT (TO REPLACE RESISTOR WIRE)RESISTOR WIRE KIT (TO REPLACE RESISTOR WIRE)
-
-84-11149A5 HARNESS ASSEMBLY, Adapter
(See Note)HARNESS ASSEMBLY, Adapter
(See Note)
