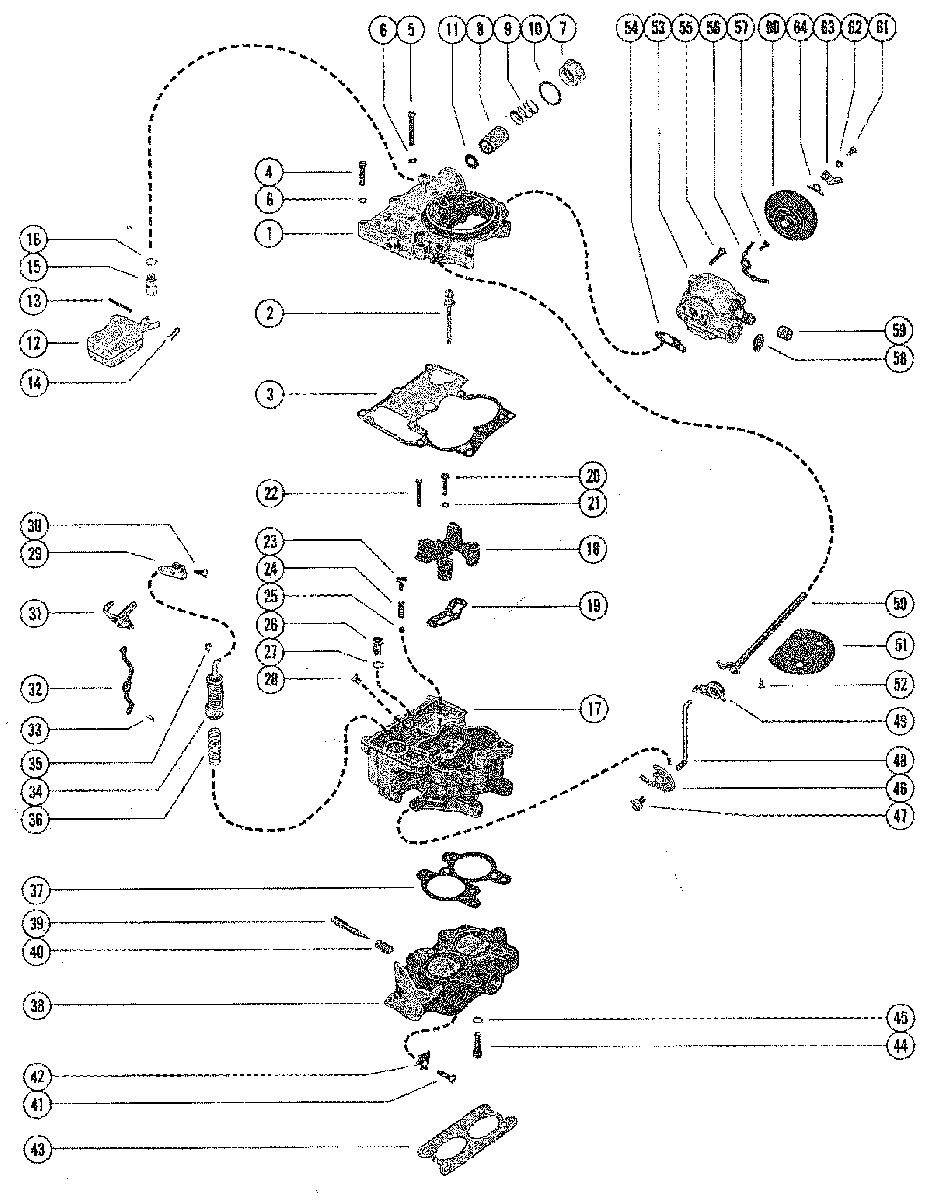

CARBURETOR ASSEMBLY для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

№

Артикул

Название
-

3310-860071A4 CARBURETOR ASSEMBLY, COMPLETE

CARBURETOR ASSEMBLY, COMPLETE

133 770 ₽
1

N.S.S. AIR HORN(NOT SOLD SEPARATELY)

AIR HORN(NOT SOLD SEPARATELY)

0 ₽
2

N.S.S. POWER PISTON ASSEMBLY (ROCHESTER #7009718)

POWER PISTON ASSEMBLY (ROCHESTER #7009718)

0 ₽
3

90-8M0143356 GASKET, AIR HORN

GASKET, AIR HORN

0 ₽
4

10-33043 SCREW, AIR HORN TO FLOAT BOWL (SHORT)

SCREW, AIR HORN TO FLOAT BOWL (SHORT)

0 ₽
5

10-33048 SCREW, AIR HORN TO FLOAT BOWL (LONG)

SCREW, AIR HORN TO FLOAT BOWL (LONG)

0 ₽
6

13-26996 LOCKWASHER, ARI HORN SCREW

LOCKWASHER, ARI HORN SCREW

60 ₽
7

1397-3330 NUT, FUEL INLET-AIR HORN

NUT, FUEL INLET-AIR HORN

5 170 ₽
8

35-53336Q FILTER, FUEL INLET -AIR HORN

FILTER, FUEL INLET -AIR HORN

670 ₽
9

3302-9032 SPRING, FUEL INLET - AIR HORN

SPRING, FUEL INLET - AIR HORN

430 ₽
10

90-8M0143356 GASKET, FUEL INLET NUT (LARGE)

GASKET, FUEL INLET NUT (LARGE)

0 ₽
11

90-8M0143356 GASKET, FUEL INLET (SMALL)

GASKET, FUEL INLET (SMALL)

0 ₽
12

1397-5837 FLOAT ASSEMBLY

FLOAT ASSEMBLY

1 560 ₽
13

N.S.S. PIN, HINGE-FLOAT TO AIR HORN (ROCHESTER #7002081)

PIN, HINGE-FLOAT TO AIR HORN (ROCHESTER #7002081)

0 ₽
14

90-8M0143356 CLIP, HINGE PIN

CLIP, HINGE PIN

0 ₽
15

90-8M0143356 INLET NEEDLE AND SEAT ASSEMBLY

INLET NEEDLE AND SEAT ASSEMBLY

0 ₽
16

90-8M0143356 GASKET, INLET NEEDLE AND SEAT

GASKET, INLET NEEDLE AND SEAT

0 ₽
17

N.S.S. FLOAT BOWL ASSEMBLY (ROCHESTER #17052724)

FLOAT BOWL ASSEMBLY (ROCHESTER #17052724)

0 ₽
18

N.S.S. VENRURI CLUSTER ASSEMBLY, FLOAT BOWL (NOT SOLD SEPARATELY)

VENRURI CLUSTER ASSEMBLY, FLOAT BOWL (NOT SOLD SEPARATELY)

0 ₽
19

90-8M0143356 GASKET, VENTURI CLUSTER

GASKET, VENTURI CLUSTER

0 ₽
20

N.S.S. SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)-ROCHESTER #70

SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)-ROCHESTER #70

0 ₽
21

90-8M0143356 GASKET, VENTURI CLUSTER SCREW (CENTER)

GASKET, VENTURI CLUSTER SCREW (CENTER)

0 ₽
22

N.S.S. SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)-ROCHESTER#70457

SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)-ROCHESTER#70457

0 ₽
23

90-8M0143356 GUIDE, PUMP DISCHARGE-FLOAT BOWL

GUIDE, PUMP DISCHARGE-FLOAT BOWL

0 ₽
24

90-8M0143356 SPRING, PUMP DISCHARGE-FLAOT BOWL

SPRING, PUMP DISCHARGE-FLAOT BOWL

0 ₽
25

90-8M0143356 BALL, PUMP DISCHARGE-FLOAT BOWL

BALL, PUMP DISCHARGE-FLOAT BOWL

0 ₽
26

90-8M0143356 POWER VALVE ASSEMBLY, FLOAT BOWL

POWER VALVE ASSEMBLY, FLOAT BOWL

0 ₽
27

90-8M0143356 GASKET,POWER VALVE

GASKET,POWER VALVE

0 ₽
28

1397-6365 JET, FLOAT BOWL (STANDARD)

JET, FLOAT BOWL (STANDARD)

0 ₽
29

1397-6364 LEVER, PUMP - AIR HORN

LEVER, PUMP - AIR HORN

0 ₽
30

10-33047 SCREW, AIR HORN PUMP LEVER

SCREW, AIR HORN PUMP LEVER

0 ₽
31

N.S.S. PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN (ROCHESTER #7038788)

PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN (ROCHESTER #7038788)

0 ₽
32

N.S.S. ROD, PUMP (ROCHESTER #7038799)

ROD, PUMP (ROCHESTER #7038799)

0 ₽
33

90-8M0143356 CLIP, RETAINER-PUMP ROD

CLIP, RETAINER-PUMP ROD

0 ₽
34

90-8M0143356 PUMP ASSEMBLY, FLOAT BOWL

PUMP ASSEMBLY, FLOAT BOWL

0 ₽
35

90-8M0143356 CLIP, RETAINER-FLOAT BOWL PUMP

CLIP, RETAINER-FLOAT BOWL PUMP

0 ₽
36

90-8M0143356 SPRING, PUMP RETURN-FLOAT BOWL

SPRING, PUMP RETURN-FLOAT BOWL

0 ₽
37

90-8M0143356 GASKET, THROTTLE BODY

GASKET, THROTTLE BODY

0 ₽
38

N.S.S. THROTTLE BODY ASSEMBLY (NOT SOLD SEPARATELY)

THROTTLE BODY ASSEMBLY (NOT SOLD SEPARATELY)

0 ₽
39

90-8M0143356 IDLE ADJUSING NEEDLE, THROTTLE BODY

IDLE ADJUSING NEEDLE, THROTTLE BODY

0 ₽
40

24-33050 SPRING, IDLE ADJUSTING NEEDLE

SPRING, IDLE ADJUSTING NEEDLE

0 ₽
41

N.S.S. IDLE STOP SCREW, THROTTLE BODY (ROCHESTER #7031547)

IDLE STOP SCREW, THROTTLE BODY (ROCHESTER #7031547)

0 ₽
42

54-39108 CLIP, IDLE STOP SCREW

CLIP, IDLE STOP SCREW

0 ₽
43

27-8079821 GASKET, CARBURETOR FLANGE

GASKET, CARBURETOR FLANGE

360 ₽
44

10-33052 SCREW, THROTTLE BODY TO FLOAT BOWL

SCREW, THROTTLE BODY TO FLOAT BOWL

0 ₽
45

13-26992 LOCKWASHER, THROTTLE BODY SCREW

LOCKWASHER, THROTTLE BODY SCREW

70 ₽
46

1397-8877 CAM, FAST IDLE-FLOAT BOWL

CAM, FAST IDLE-FLOAT BOWL

0 ₽
47

10-33042 SCREW, FAST IDLE CAM TO FLOAT BOWL

SCREW, FAST IDLE CAM TO FLOAT BOWL

0 ₽
48

N.S.S. ROD,CHOKE(ROCHESTER #7038821)

ROD,CHOKE(ROCHESTER #7038821)

0 ₽
49

1397-4257 CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT

CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT

0 ₽
50

1397-5840 CHOKE SHAFT ASSEMBLY

CHOKE SHAFT ASSEMBLY

0 ₽
51

1397-5839 VALVE, CHOKE-CHOKE SHAFT

VALVE, CHOKE-CHOKE SHAFT

740 ₽
52

10-33045 SCREW, CHOKE VALVE TO CHOKE SHAFT

SCREW, CHOKE VALVE TO CHOKE SHAFT

0 ₽
53

1397-5838 CHOKE HOUSING ASSEMBLY

CHOKE HOUSING ASSEMBLY

0 ₽
54

90-8M0143356 GASKET, CHOKE HOUSING

GASKET, CHOKE HOUSING

0 ₽
55

10-33053 SCREW, CHOKE HOUSING TO AIR HORN

SCREW, CHOKE HOUSING TO AIR HORN

0 ₽
56

N.S.S. LEVER ASSESMBLY, CHOKE PISOTN (ROCHESTER #7010051)

LEVER ASSESMBLY, CHOKE PISOTN (ROCHESTER #7010051)

0 ₽
57

10-33056 SCREW, CHOKE PISOTN LEVER TO CHOKE HOUSING

SCREW, CHOKE PISOTN LEVER TO CHOKE HOUSING

0 ₽
58

19-33041 WELCH PLUG, CHOKE HOUING

WELCH PLUG, CHOKE HOUING

0 ₽
59

22-56772 PLUG, CHOKE HOUSING

PLUG, CHOKE HOUSING

0 ₽
60

70125A02 COVER, CHOKE

COVER, CHOKE

19 430 ₽
61

10-33047 SCREW, CHOKE COVER TO CHOICE HOUSING

SCREW, CHOKE COVER TO CHOICE HOUSING

0 ₽
62

13-26995 LOCKWASHER, CHOKE COVER SCREW

LOCKWASHER, CHOKE COVER SCREW

60 ₽
63

86-70879 TERMINAL, CHOKE COVER SCREW

TERMINAL, CHOKE COVER SCREW

90 ₽
64

54-33036 RETAINER, CHOKE COVER SCREW

RETAINER, CHOKE COVER SCREW

220 ₽
--

1397-6367A1 OVERHAUL KIT

OVERHAUL KIT

6 630 ₽
--

1397-6362 POWER CARBURETOR KIT

POWER CARBURETOR KIT

0 ₽
--

1397-6367A1 GASKET KIT

GASKET KIT

6 630 ₽
