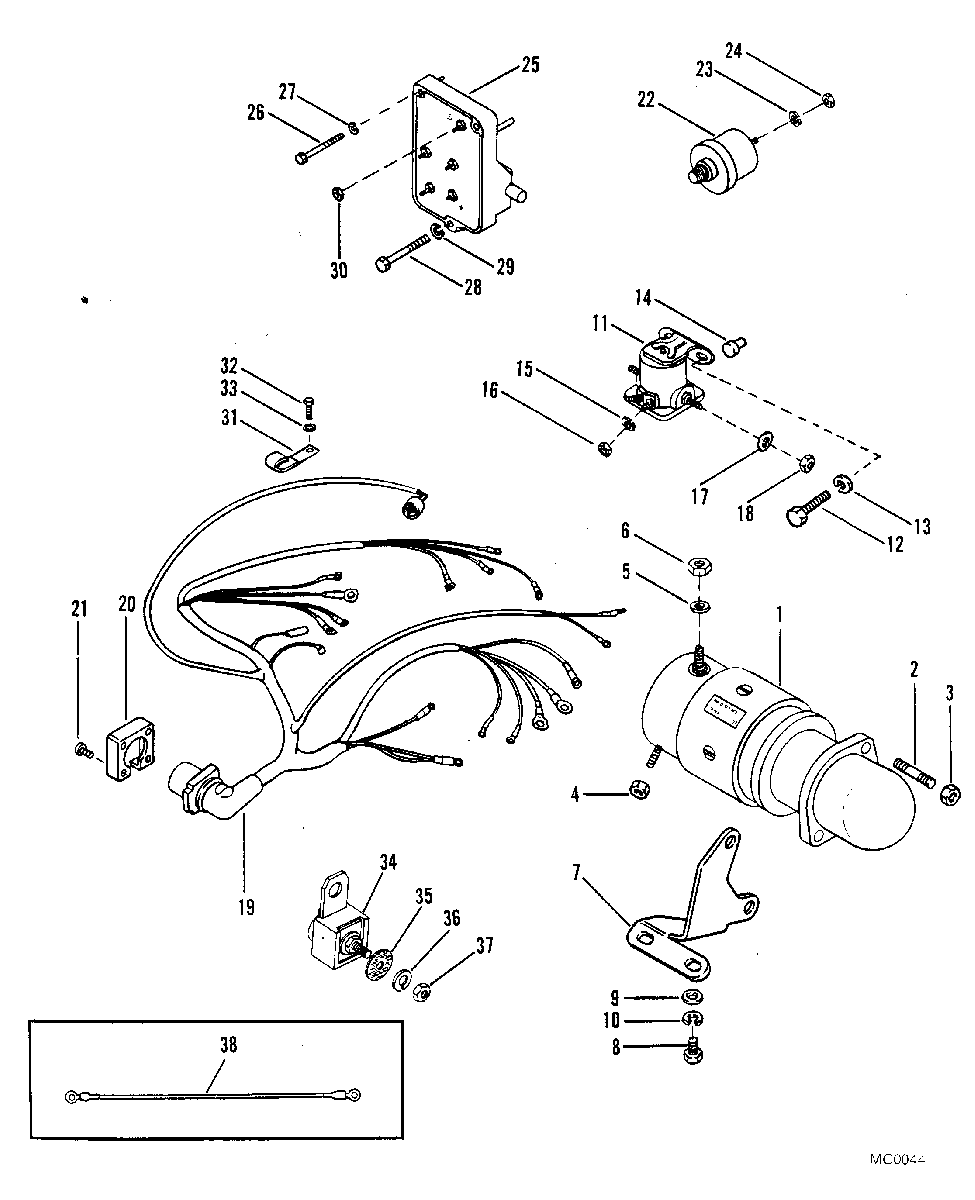

STARTER MOTOR AND WIRING HARNESS для Mercruiser - 488 (4 BBL.) MERCURY 224 I/L4 1983-1984 6170297 THRU 6916778
-
№АртикулНазвание
-
150-97499R3 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
216-97256 STUD,STARTER MOTOR TO CYLINDER BLOCKSTUD,STARTER MOTOR TO CYLINDER BLOCK
-
311-34933 NUT, STARTER MOTOR STUDNUT, STARTER MOTOR STUD
-
411-29031 NUT, STARTER MOTOR STUD (1/4-20)NUT, STARTER MOTOR STUD (1/4-20)
-
513-26995 LOCKWARSHER, STARTER MOTOR TERMINAL (#8)LOCKWARSHER, STARTER MOTOR TERMINAL (#8)
-
611-26419 NUT, STARTER MOTOR TERMINAL (8-32)NUT, STARTER MOTOR TERMINAL (8-32)
-
797259A1 BRACKET, STARTER MOTOR TO CYLINDER BLOCKBRACKET, STARTER MOTOR TO CYLINDER BLOCK
-
810-98261 SCREW, BRACKET TO CYLINDER BLOCKSCREW, BRACKET TO CYLINDER BLOCK
-
912-34931 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
1013-35048 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
1165057T1 STARTER SOLENOIDSTARTER SOLENOID
-
1210-28635 SCREW, SOLENOID TO CYLINDER BLOCK (5/8")SCREW, SOLENOID TO CYLINDER BLOCK (5/8")
-
1313-26992 LOCKWASHER, SOLENOID SCREWLOCKWASHER, SOLENOID SCREW
-
14269011 BUMP, SOLENOIDBUMP, SOLENOID
-
1513-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
1611-68219 NUT, SOLENOID TERMINAL (#10-32)NUT, SOLENOID TERMINAL (#10-32)
-
1713-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
1811-22053 NUT, SOLENOID TERMINAL (5/16-24)NUT, SOLENOID TERMINAL (5/16-24)
-
1984-98269A9 WIRING HARNESS (USE WITH 90 AMP. FUSE)WIRING HARNESS (USE WITH 90 AMP. FUSE)
-
1984-98269A9 WIRING HARNESS (USE WITH 90 AMP. FUSE)WIRING HARNESS (USE WITH 90 AMP. FUSE)
-
2026079A2 PLATE, HARNESS ATTACHINGPLATE, HARNESS ATTACHING
-
2110-34696 SCREW, PALTE TO BRACKET (3/4")SCREW, PALTE TO BRACKET (3/4")
-
228M0068784 SENDING UNIT, OIL PRESSURESENDING UNIT, OIL PRESSURE
-
2313-26996 LOCKWASHER, SENDING UNIT TERMINALLOCKWASHER, SENDING UNIT TERMINAL
-
2411-68219 NUT, SENDING UNIT TERMINALNUT, SENDING UNIT TERMINAL
-
2599502A13 VOLTAGE REGULATORVOLTAGE REGULATOR
-
2610-98255 SCREW, VOLTAGE REGULATOR (2-1/4")SCREW, VOLTAGE REGULATOR (2-1/4")
-
2713-26992 LOCKWASHER, VOLTAGE REGULATOR SCREWLOCKWASHER, VOLTAGE REGULATOR SCREW
-
2810-34354 SCREW, VOLTAGE REGULATOR (1-1/2")SCREW, VOLTAGE REGULATOR (1-1/2")
-
2913-58643 LOCKWASHER, VOLTAGE REGULATOR SCREWLOCKWASHER, VOLTAGE REGULATOR SCREW
-
3011-68219 NUT, VOLTAGE REGULATORR TERMINALSNUT, VOLTAGE REGULATORR TERMINALS
-
3154-642351 "J" CLIP, WIRING HARNESS TO MANIFOLD"J" CLIP, WIRING HARNESS TO MANIFOLD
-
3210-98253 SCREW, "J" CLIP TO MANIFOLDSCREW, "J" CLIP TO MANIFOLD
-
3313-26992 LOCKWASSHER, "J" CLIP SCREWLOCKWASSHER, "J" CLIP SCREW
-
3488-79023A91 FUSE ASSEMBLY (90 AMP.)
NOT USED ON LATER ENGINESFUSE ASSEMBLY (90 AMP.)
NOT USED ON LATER ENGINES -
3512-96457 WASHERN FUSE TERMINAL
NOT USED ON LATER ENGINESWASHERN FUSE TERMINAL
NOT USED ON LATER ENGINES -
3613-26992 LOCKWASHER, FUSE TERMINAL
NOT USED ON LATER ENGINESLOCKWASHER, FUSE TERMINAL
NOT USED ON LATER ENGINES -
3711-21825 NUT, FUSE TERMINAL
NOT USED ON LATER ENGINESNUT, FUSE TERMINAL
NOT USED ON LATER ENGINES -
3884-94227A2 RESISTANCE WIRE KIT ( TO REPLACE RESISTOR WIRE)RESISTANCE WIRE KIT ( TO REPLACE RESISTOR WIRE)
