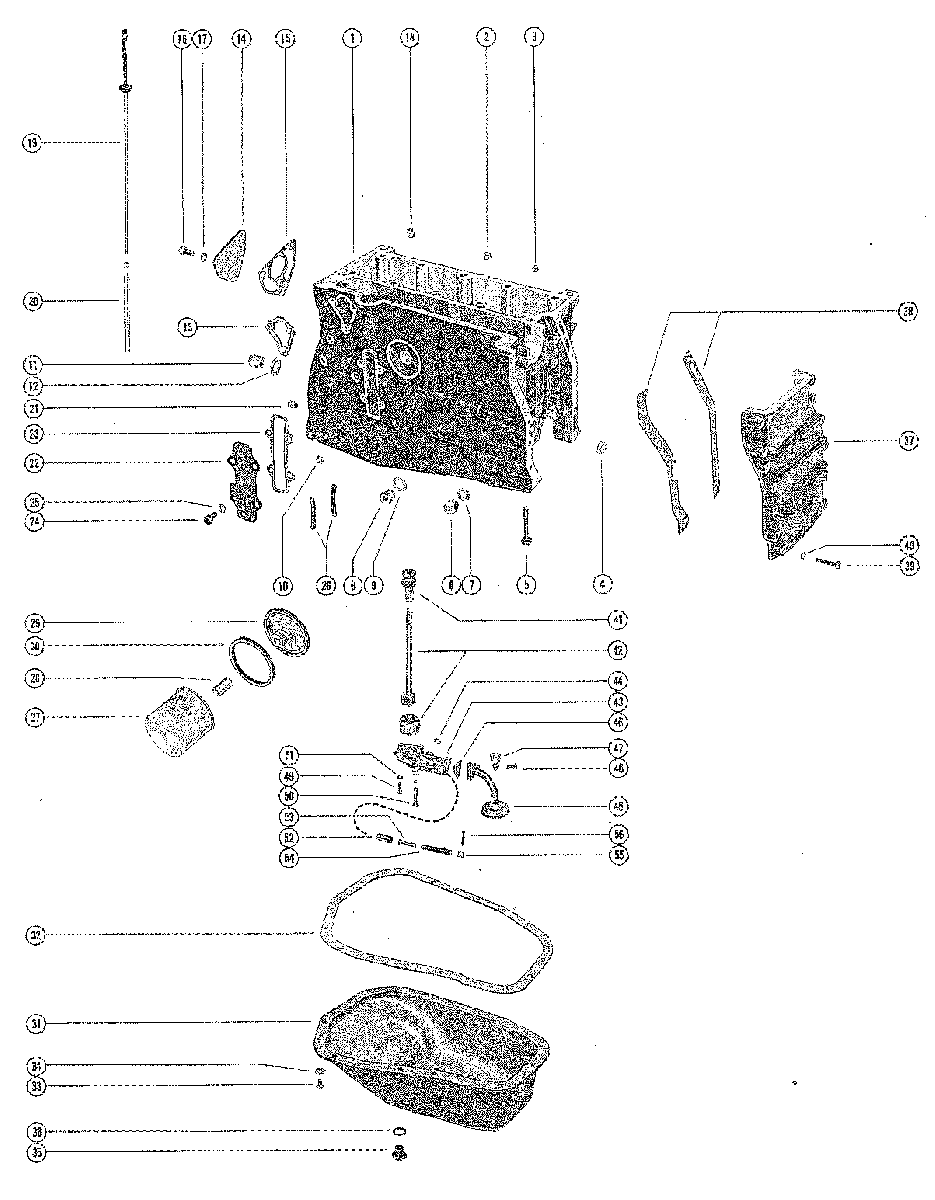

CYLINDER BLOCK, OIL PAN AND OIL PUMP MARINE 90 SHORT-BLOCK для Mercruiser - 90 RENAULT 96 I/L4 1970-1972 2851424 THRU 3226957
-
№АртикулНазвание
-
1845-4346 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
219-46516 PLUG, EXPANSION - CYLINDER BLOCK (TOP)PLUG, EXPANSION - CYLINDER BLOCK (TOP)
-
319-46515 PLUG, EXPANSION - CYLINDER BLOCK (TOP)PLUG, EXPANSION - CYLINDER BLOCK (TOP)
-
419-46503 PLUG, EXPANSION - CYLINDER BLOCK (FRONT)PLUG, EXPANSION - CYLINDER BLOCK (FRONT)
-
510-46504 BOLT, MAIN BEARING CAP TO CYLINDER BLOCK (67.5MM)BOLT, MAIN BEARING CAP TO CYLINDER BLOCK (67.5MM)
-
610-46506 PLUG, CYLINDER BLOCKPLUG, CYLINDER BLOCK
-
712-46505 WASHER, CYLINDER BLOCK PLUGWASHER, CYLINDER BLOCK PLUG
-
819-58573 PLUG, CYLINDER BLOCKPLUG, CYLINDER BLOCK
-
912-46507 WASHER, CYLINDER BLOCK PLUGWASHER, CYLINDER BLOCK PLUG
-
1019-46509 PLUG, EXPANSION - CYLINDER BLOCK (SIDE)PLUG, EXPANSION - CYLINDER BLOCK (SIDE)
-
1119-58512 PLUG, CYLINDER BLOCK - REARPLUG, CYLINDER BLOCK - REAR
-
1212-46513 WASHER, CYLINDER BLOCK REAR PLUGWASHER, CYLINDER BLOCK REAR PLUG
-
1327-58511 GASKET, WIRING HARNESS BRACKET TO CYLINDER BLOCKGASKET, WIRING HARNESS BRACKET TO CYLINDER BLOCK
-
1446537 COVER, CAMSHAFT HOLE - CYLINDER BLCOKCOVER, CAMSHAFT HOLE - CYLINDER BLCOK
-
1527-46524 GASKET, CAMSHAFT HOLE COVERGASKET, CAMSHAFT HOLE COVER
-
1610-58510 SCREW, CAMSHAFT HOLE COVER TO CYLINDER BLOCK (20MM)SCREW, CAMSHAFT HOLE COVER TO CYLINDER BLOCK (20MM)
-
1713-37141 LOCKWASHER, CAMSHAFT HOLE COVER SCREWLOCKWASHER, CAMSHAFT HOLE COVER SCREW
-
1823-37127 BUSHING, OIL PUMP SHAFT - CYLINDER BLOCKBUSHING, OIL PUMP SHAFT - CYLINDER BLOCK
-
1956202 GAUGE, OIL LEVEL (DIP STICK)GAUGE, OIL LEVEL (DIP STICK)
-
2032-58513 TUBE, OIL LEVEL GAUGE - CYLINDER BLOCKTUBE, OIL LEVEL GAUGE - CYLINDER BLOCK
-
2123-46689 SPACER, ALIGNMENT - CYLINDER BLOCK TO FLYWHEEL HOUSINGSPACER, ALIGNMENT - CYLINDER BLOCK TO FLYWHEEL HOUSING
-
2246511 COVER, INSPECTION - CYLINDER BLOCKCOVER, INSPECTION - CYLINDER BLOCK
-
2327-46510 GASKET, INSPECTION COVERGASKET, INSPECTION COVER
-
2410-58510 SCREW, INSPECTION COVER TO CYLINDER BLOCK (20MM)SCREW, INSPECTION COVER TO CYLINDER BLOCK (20MM)
-
2513-37141 WASHER, INSPECTION COVER SCREWWASHER, INSPECTION COVER SCREW
-
2623-46527A1 SPACER ASSEMBLY, MAIN BEARING CAPSPACER ASSEMBLY, MAIN BEARING CAP
-
2758569 OIL FILTEROIL FILTER
-
2837125 ADAPTOR, OIL FILTER TO CYLINDER BLOCKADAPTOR, OIL FILTER TO CYLINDER BLOCK
-
2958570 PLATE, OIL FILTER ADAPTORPLATE, OIL FILTER ADAPTOR
-
3025-58571 "O" RING, OIL FILTER ADAPTOR PLATE"O" RING, OIL FILTER ADAPTOR PLATE
-
3146529 OIL PANOIL PAN
-
3227-46530 GASKET, OIL PANGASKET, OIL PAN
-
3310-58518 SCREW, OIL PAN TO CYLINDER BLOCKSCREW, OIL PAN TO CYLINDER BLOCK
-
3310-58521 SCREW, OIL PAN TO CYLINDER BLOCKSCREW, OIL PAN TO CYLINDER BLOCK
-
3412-46531 WASHER, OIL PAN SCREWWASHER, OIL PAN SCREW
-
3522-46534 PLUG, DRIAN - OIL PANPLUG, DRIAN - OIL PAN
-
3627-37105 GASKET, OIL PAN DRAIN PLUGGASKET, OIL PAN DRAIN PLUG
-
3758520 COVER, TIMINGCOVER, TIMING
-
3827-46536 GASKET, TIMING COVERGASKET, TIMING COVER
-
3910-58519 SCREW, TIMING COVER TO CYLINDER BLOCKSCREW, TIMING COVER TO CYLINDER BLOCK
-
4012-46540 WASHER, TIMING COVER SCREWWASHER, TIMING COVER SCREW
-
4158285 SHAFT, PINION - OIL PUMP SHAFT TO DISTRIBUTOR
PART OF B-435-4352 CAMSHAFT ASSEMBLYSHAFT, PINION - OIL PUMP SHAFT TO DISTRIBUTOR
PART OF B-435-4352 CAMSHAFT ASSEMBLY -
4247166 SHAFT, OIL PUMP BODY TO PINION SHAFTSHAFT, OIL PUMP BODY TO PINION SHAFT
-
4358562 BODY, OIL PUMPBODY, OIL PUMP
-
4422-58564 PLUG, OIL PUMP BODYPLUG, OIL PUMP BODY
-
4558568 TUBE, PICK-UPTUBE, PICK-UP
-
4627-58565 GASKET, PICK-UP TUBEGASKET, PICK-UP TUBE
-
4758566 PLATE, RETAINER - PICK-UP TUBEPLATE, RETAINER - PICK-UP TUBE
-
4810-58563 SCREW, PICK-UP TUBE TO OIL PUMP BODYSCREW, PICK-UP TUBE TO OIL PUMP BODY
-
4910-58563 SCREW, OIL PUMP BODY TO CYLINDER BLOCKSCREW, OIL PUMP BODY TO CYLINDER BLOCK
-
5010-46615 SCREW, OIL PUMP BODY TO CYLINDER BODYSCREW, OIL PUMP BODY TO CYLINDER BODY
-
5146646 WASHER, OIL PUMP BODY SCREWWASHER, OIL PUMP BODY SCREW
-
5223-46614 SLEEVE, OIL PREASURE RELEASE VALVESLEEVE, OIL PREASURE RELEASE VALVE
-
5317-46613 PIN, GUIDE - OIL PREASURE RELEASE VALVEPIN, GUIDE - OIL PREASURE RELEASE VALVE
-
5424-46612 SPRING, TENSION - OIL PREASURE RELEASE VALVESPRING, TENSION - OIL PREASURE RELEASE VALVE
-
5546611 CAP, OIL PRESSURE RELEASE VALVE SPRINGCAP, OIL PRESSURE RELEASE VALVE SPRING
-
5618-46605 COTTER PIN, OIL PRESSURE RELEASE VALVE CAPCOTTER PIN, OIL PRESSURE RELEASE VALVE CAP
