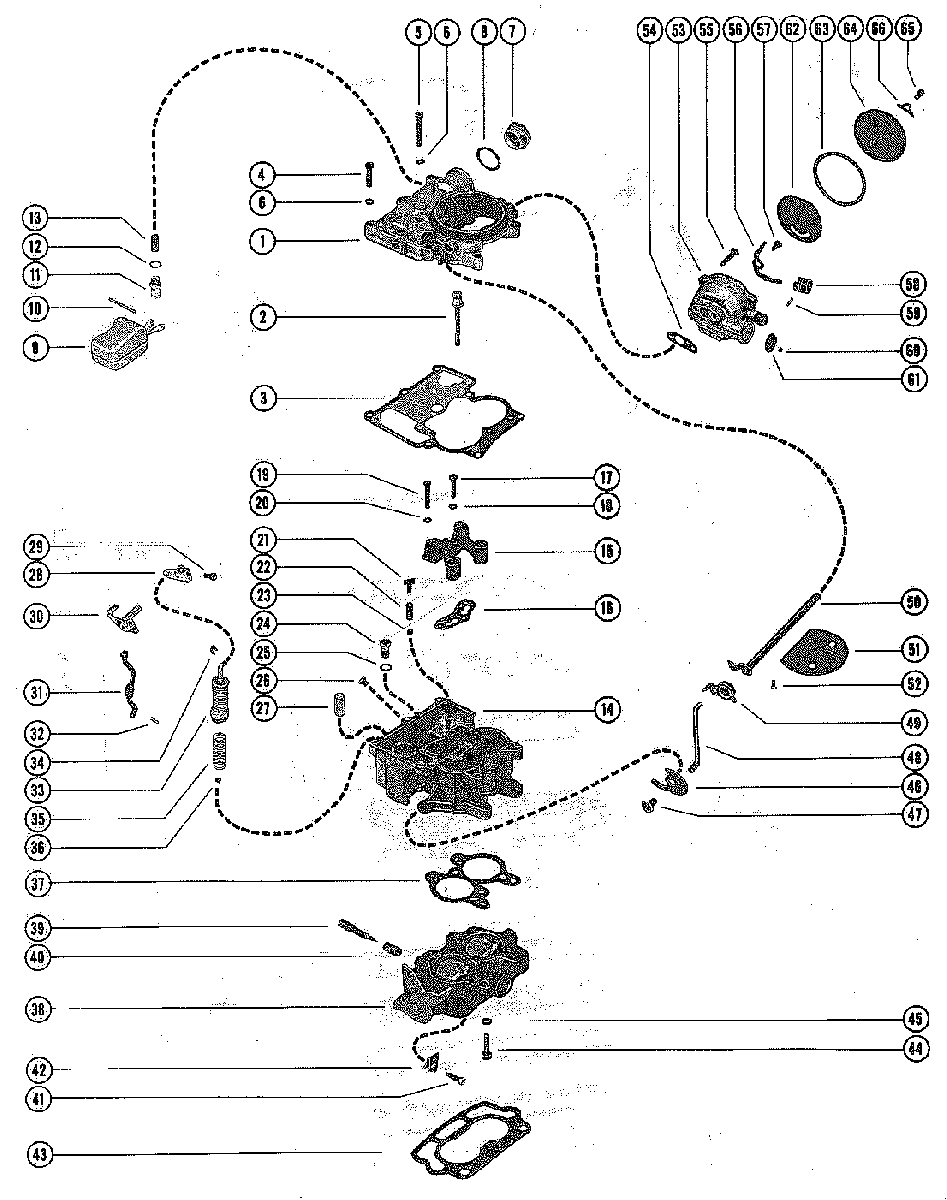

CARBURETOR ASSEMBLY COMPLETE(SINGLE CARB) для Mercruiser - 150 GM 230 I/L6 1964-1966 1666495 THRU 2048046
-
№АртикулНазвание
-
-1338-2633 CARBURETOR ASSEMBLY, COMPLETE
SERIAL 01830152-09999999CARBURETOR ASSEMBLY, COMPLETE
SERIAL 01830152-09999999 -
11397-2635 AIR HORNAIR HORN
-
21397-2256 POWER PISTON ASSEMBLYPOWER PISTON ASSEMBLY
-
390-8M0143356 GASKET, AIR HORN
SERIAL 00000003-000004,5GASKET, AIR HORN
SERIAL 00000003-000004,5 -
410-33043 SCREW, AIR HORN TO FLOAT BOWL (SHORT)SCREW, AIR HORN TO FLOAT BOWL (SHORT)
-
510-33048 SCREW, AIR HORN TO FLOAT (LONG)SCREW, AIR HORN TO FLOAT (LONG)
-
613-26996 LOCKWASHER, AIR HORN SCREWLOCKWASHER, AIR HORN SCREW
-
711-33631 NUT, FUEL INLET - AIR HORNNUT, FUEL INLET - AIR HORN
-
890-8M0143356 GASKET, FUEL INLET NUT
SERIAL 00000003-000004,5GASKET, FUEL INLET NUT
SERIAL 00000003-000004,5 -
91397-2060 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
1017-33037 PIN, HINGE - FLOAT TO AIR HORNPIN, HINGE - FLOAT TO AIR HORN
-
1190-8M0143356 INLET NEEDLE AND SEAT ASSEMBLY
SERIAL 00000004-00000005INLET NEEDLE AND SEAT ASSEMBLY
SERIAL 00000004-00000005 -
1290-8M0143356 GASKET, INLET NEEDLE AND SEAT
SERIAL 00000003-00004,5,GASKET, INLET NEEDLE AND SEAT
SERIAL 00000003-00004,5, -
1390-8M0143356 STRAINER, INLET NEEDLE AND SEAT
SERIAL 00000004-00000005STRAINER, INLET NEEDLE AND SEAT
SERIAL 00000004-00000005 -
141397-2636 FLOAT BOWL ASSEMBLYFLOAT BOWL ASSEMBLY
-
151397-2640 VENTURI CLUSTER ASSEMBLY, FLOAT BOWLVENTURI CLUSTER ASSEMBLY, FLOAT BOWL
-
1690-8M0143356 GASKET, VENTURI CLUSTER
SERIAL 00000003-000004,5GASKET, VENTURI CLUSTER
SERIAL 00000003-000004,5 -
1710-33034 SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)
-
1890-8M0143356 GASKET, VENTURI CLUSTER SCREW (CENTER)
SERIAL 00000003-000004,5GASKET, VENTURI CLUSTER SCREW (CENTER)
SERIAL 00000003-000004,5 -
1910-33033 SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)
-
2013-26995 LOCKWASHER, VENTURI CLUSTER SCREW (OUTER)LOCKWASHER, VENTURI CLUSTER SCREW (OUTER)
-
2190-8M0143356 GUIDE, PUMP DISCHARGE - FLOAT BOWL
SERIAL 00000000-00000005GUIDE, PUMP DISCHARGE - FLOAT BOWL
SERIAL 00000000-00000005 -
2290-8M0143356 SPRING, PUMP DISCHARGE - FLOAT BOWL
SERIAL 00000000-00000005SPRING, PUMP DISCHARGE - FLOAT BOWL
SERIAL 00000000-00000005 -
2390-8M0143356 BALL, PUMP DISCHARGE - FLOAT BOWL
SERIAL 00000000-00000005BALL, PUMP DISCHARGE - FLOAT BOWL
SERIAL 00000000-00000005 -
2490-8M0143356 POWER VALVE ASSEMBLY, FLOAT BOWL
SERIAL 00000000-00000005POWER VALVE ASSEMBLY, FLOAT BOWL
SERIAL 00000000-00000005 -
2590-8M0143356 GASKET, POWER VALVE
SERIAL 00000003-000004,5GASKET, POWER VALVE
SERIAL 00000003-000004,5 -
261397-2448 JET, FLOAT BOWL (STANDARD)JET, FLOAT BOWL (STANDARD)
-
2790-8M0143356 STRAINER, PUMP INLET
SERIAL 00000000-00000005STRAINER, PUMP INLET
SERIAL 00000000-00000005 -
281397-2048 LEVER, PUMP - AIR HORNLEVER, PUMP - AIR HORN
-
2910-33047 SCREW, AIR HORN PUMP LEVERSCREW, AIR HORN PUMP LEVER
-
301397-2054 PUMP SHAFT AND LEVER ASSEMBLY, AIR HORNPUMP SHAFT AND LEVER ASSEMBLY, AIR HORN
-
311397-2051 ROD, PUMPROD, PUMP
-
3290-8M0143356 CLIP, RETAINER - PUMP ROD
SERIAL 00000004-00000005CLIP, RETAINER - PUMP ROD
SERIAL 00000004-00000005 -
3390-8M0143356 PUMP ASSEMBLY, FLOAT BOWL
SERIAL 00000004-00000005PUMP ASSEMBLY, FLOAT BOWL
SERIAL 00000004-00000005 -
3490-8M0143356 CLIP, RETAINER - FLOAT BOWL PUMP
SERIAL 00000004-00000005CLIP, RETAINER - FLOAT BOWL PUMP
SERIAL 00000004-00000005 -
3590-8M0143356 SPRING, PUMP RETURN - FLOAT BOWL
SERIAL 00000000-00000005SPRING, PUMP RETURN - FLOAT BOWL
SERIAL 00000000-00000005 -
3690-8M0143356 BALL, CHECK - PUMP INLET - FLOAT BOWL
SERIAL 00000000-00000005BALL, CHECK - PUMP INLET - FLOAT BOWL
SERIAL 00000000-00000005 -
3790-8M0143356 GASKET, THROTTLE BODY
SERIAL 00000003-000004,5GASKET, THROTTLE BODY
SERIAL 00000003-000004,5 -
381397-2639 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
391397-2120 IDLE ADJUSTING NEEDLE, THROTTLE BODY (INCLUDED WITH O)IDLE ADJUSTING NEEDLE, THROTTLE BODY (INCLUDED WITH O)
-
4024-33050 SPRING, IDLE ADJUSTING NEEDLESPRING, IDLE ADJUSTING NEEDLE
-
411397-2638 IDLE STOP SCREW, THROTTLE BODYIDLE STOP SCREW, THROTTLE BODY
-
4254-39108 CLIP, IDLE STOP SCREWCLIP, IDLE STOP SCREW
-
4327-64692 GASKET, CARBURETOR FLANGE (INCLUDED WITH)
SERIAL 00000003-000004,5GASKET, CARBURETOR FLANGE (INCLUDED WITH)
SERIAL 00000003-000004,5 -
4410-33052 SCREW, THROTTLE BODY TO FLOAT BOWLSCREW, THROTTLE BODY TO FLOAT BOWL
-
4513-21547 LOCKWASHER, THROTTLE BODY SCREWLOCKWASHER, THROTTLE BODY SCREW
-
461397-8877 CAM, FAST IDLE - FLOAT BOWLCAM, FAST IDLE - FLOAT BOWL
-
4710-33042 SCREW, FAST IDLE CAM TO FLOAT BOWLSCREW, FAST IDLE CAM TO FLOAT BOWL
-
481397-2052 ROD, CHOKEROD, CHOKE
-
491397-4257 CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFTCHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
-
501397-2632 CHOKE SHAFT ASSEMBLYCHOKE SHAFT ASSEMBLY
-
511397-2047 VALVE, CHOKE - CHOKE SHAFTVALVE, CHOKE - CHOKE SHAFT
-
5210-33045 SCREW, CHOKE VALVE TO CHOKE SHAFTSCREW, CHOKE VALVE TO CHOKE SHAFT
-
531397-2630 CHOKE HOUSING ASSEMBLYCHOKE HOUSING ASSEMBLY
-
5490-8M0143356 GASKET, CHOKE HOUSING
SERIAL 00000003-000004,5GASKET, CHOKE HOUSING
SERIAL 00000003-000004,5 -
5510-33053 SCREW, CHOKE HOUSING TO AIR HORNSCREW, CHOKE HOUSING TO AIR HORN
-
561397-2629 LEVER ASSEMBLY, CHOKE PISTONLEVER ASSEMBLY, CHOKE PISTON
-
5710-33056 SCREW, CHOKE PISTON LEVER TO CHOKE HOUSINGSCREW, CHOKE PISTON LEVER TO CHOKE HOUSING
-
581397-2059 CHOKE PISTON, CHOKE HOUSINGCHOKE PISTON, CHOKE HOUSING
-
5917-33049 PIN, CHOKE PISTON TO CHOKE PISTON LEVERPIN, CHOKE PISTON TO CHOKE PISTON LEVER
-
601397-2050 PLUG, BALL - CHOKE HOUSINGPLUG, BALL - CHOKE HOUSING
-
6119-33041 WELCH PLUG, CHOKE HOUSINGWELCH PLUG, CHOKE HOUSING
-
621397-2057 PLATE, BAFFLE - CHOKE HOUSINGPLATE, BAFFLE - CHOKE HOUSING
-
6390-8M0143356 GASKET, STAT COVER AND COIL
SERIAL 00000003-000004,5GASKET, STAT COVER AND COIL
SERIAL 00000003-000004,5 -
641397-2648 STAT COVER AND COIL ASSEMBLYSTAT COVER AND COIL ASSEMBLY
-
6510-33047 SCREW, STAT COVER AND COIL TO CHOKE HOUSINGSCREW, STAT COVER AND COIL TO CHOKE HOUSING
-
6654-33036 RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREWRETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW
-
--823427A1 OVERHAUL KITOVERHAUL KIT
-
--823427A1 OFF ENGINE KITOFF ENGINE KIT
-
--823427A1 GASKET KITGASKET KIT
-
--1397-2213 ALTITUDE KIT (5,000 FT.)ALTITUDE KIT (5,000 FT.)
-
--1397-2214 ALTITUDE KIT (10,000 FT.)ALTITUDE KIT (10,000 FT.)
