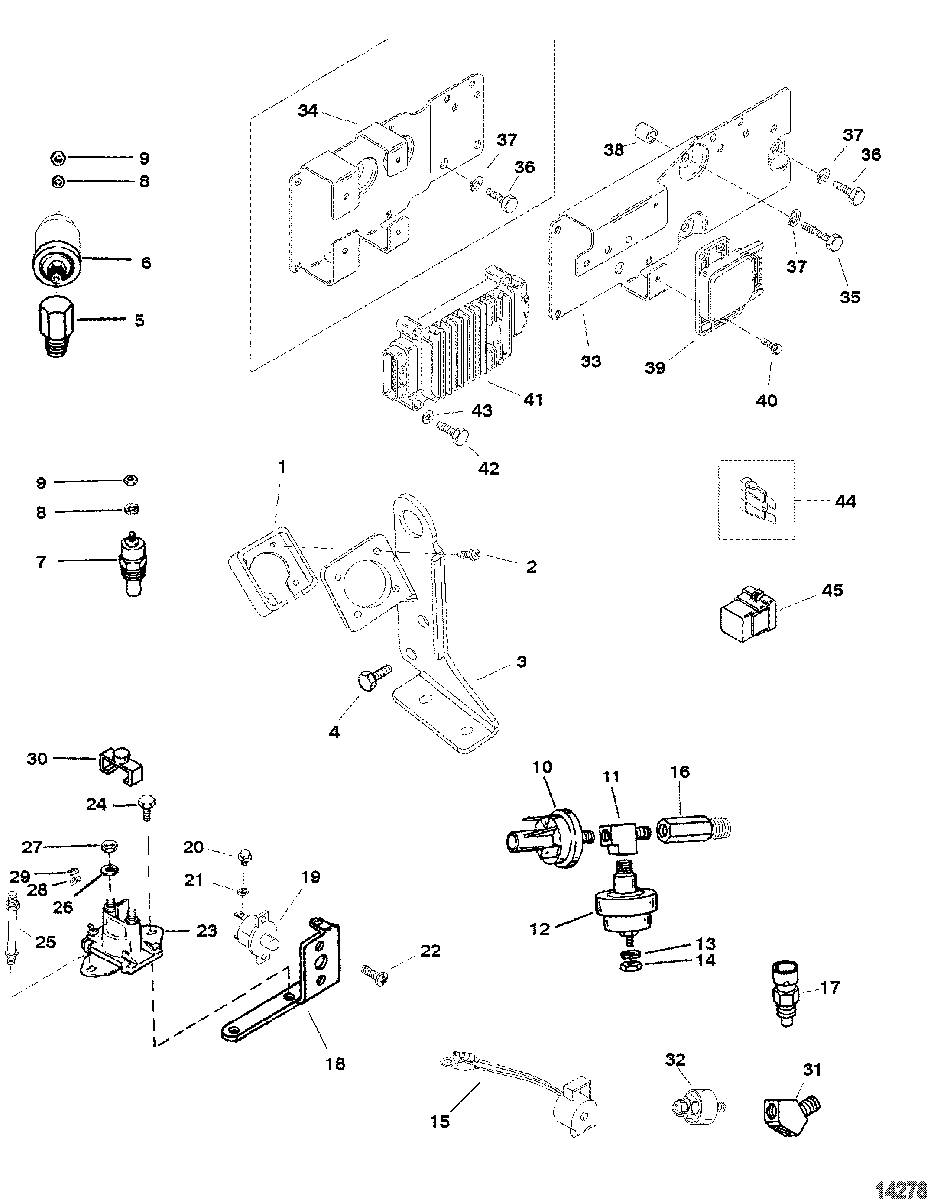

Wiring Harness And Electrical Components для Mercruiser - 262 MAG (TBI)(GEN+) 0F803800 THRU 0K999999
-
№АртикулНазвание
-
126079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
210-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
3806816T BRACKET/LIFTING EYE, Harness MountingBRACKET/LIFTING EYE, Harness Mounting
-
410-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
522-8053281 FITTING, Elbow (90 Degree - .125)FITTING, Elbow (90 Degree - .125)
-
68M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
637293T SENDER ASSEMBLY, Oil Pressure
(Dual Station)SENDER ASSEMBLY, Oil Pressure
(Dual Station) -
7806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
749734 SENDER ASSEMBLY, Water Temperature
(Dual Station)SENDER ASSEMBLY, Water Temperature
(Dual Station) -
813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
911-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1087-864252A01 SWITCH, Oil PressureSWITCH, Oil Pressure
-
1122-286241 FITTING, TFITTING, T
-
1287-805605A1 SWITCH ASSEMBLY
(Audio Warning System)SWITCH ASSEMBLY
(Audio Warning System) -
1313-26996 LOCKWASHER, (#10) Stainless Steel
(Audio Warning System)LOCKWASHER, (#10) Stainless Steel
(Audio Warning System) -
1411-68219 NUT, (#10-32) Stainless Steel
(Audio Warning System)NUT, (#10-32) Stainless Steel
(Audio Warning System) -
15816492A6 ALARM KIT
(Audio Warning System)ALARM KIT
(Audio Warning System) -
1622-805059 FITTINGFITTING
-
17805218T SENSORSENSOR
-
18899719T01 BRACKET, ElectricalBRACKET, Electrical
-
1988-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
2010-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
2113-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2210-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
2389-96158T SOLENOID, StarterSOLENOID, Starter
-
2410-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2516-805459 STUD, Mercathode MountingSTUD, Mercathode Mounting
-
2613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2711-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2911-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
3085-97861 INSULATORINSULATOR
-
3122-806705 Y-FITTING
(Use With Brass Drain Plugs)Y-FITTING
(Use With Brass Drain Plugs) -
3122-8067051 FITTING, Dual
(Use With Plastic Drain Plugs)FITTING, Dual
(Use With Plastic Drain Plugs) -
32808015T SENSOR, ESC ControlSENSOR, ESC Control
-
33807852T BRACKET
SN# 0K000000 & BelowBRACKET
SN# 0K000000 & Below -
34860080T BRACKET
SN# 0K001511 & UpBRACKET
SN# 0K001511 & Up -
3510-76630 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
3610-98253 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
3713-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3823-91034 SPACER, (.380 x 1.00 x .530)SPACER, (.380 x 1.00 x .530)
-
39808014T MODULE, ESCMODULE, ESC
-
4010-806827 SCREW, (#8-32 x .380)SCREW, (#8-32 x .380)
-
41807865T1 ECM, Engine Control Module
(VST Fuel System) SN# 0K000000 & BelowECM, Engine Control Module
(VST Fuel System) SN# 0K000000 & Below -
41861001T1 ECM, Engine Control Module
(Fuel Cooled System) SN# 0K001511 & UpECM, Engine Control Module
(Fuel Cooled System) SN# 0K001511 & Up -
4210-76596 SCREW, (.250-20 x 1.250)SCREW, (.250-20 x 1.250)
-
4312-20533 WASHERWASHER
-
4488-804642 FUSE, 15 AmpereFUSE, 15 Ampere
-
44862647 FUSE, 10 AmpereFUSE, 10 Ampere
-
4586-865202T RELAY, Fuel PumpRELAY, Fuel Pump
