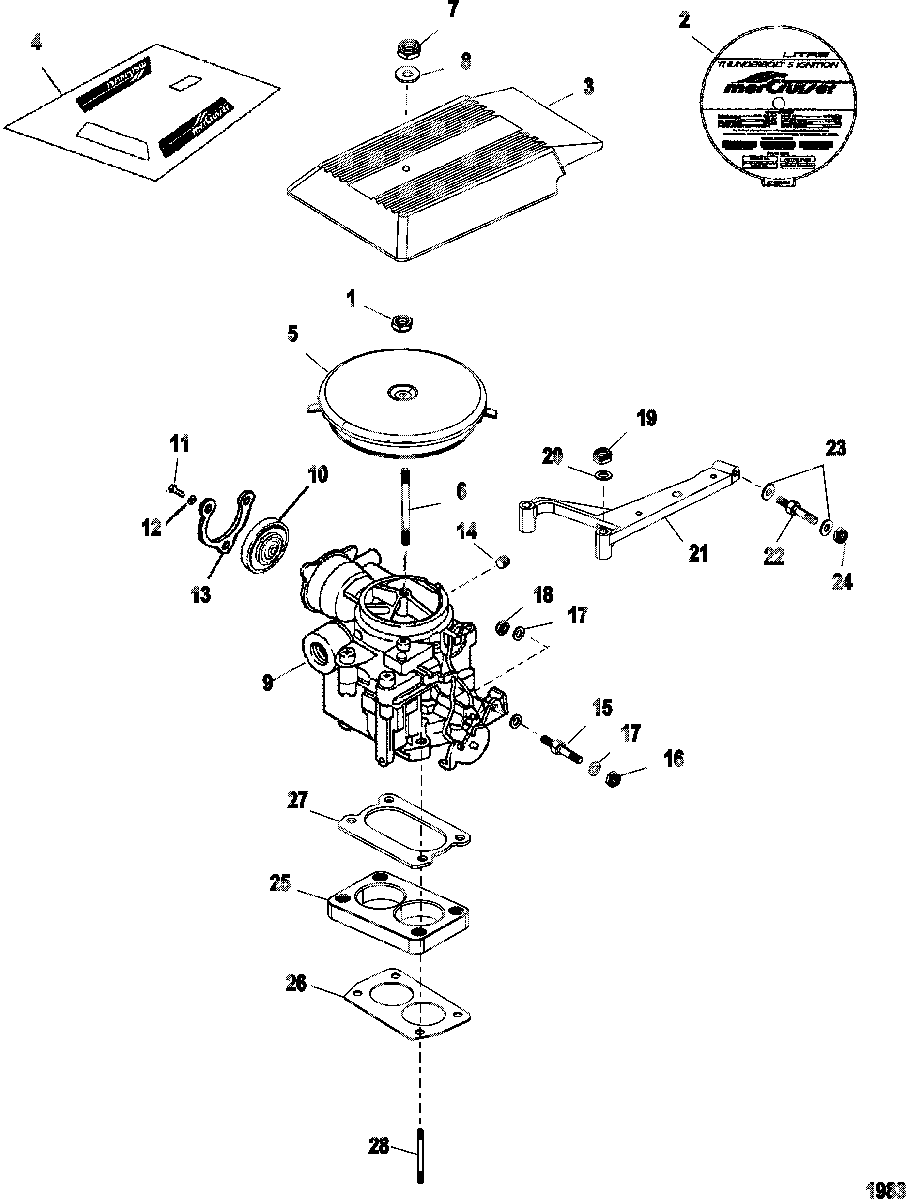

Carburetor and Throttle Linkage для Mercruiser - 4.3L CARB ALPHA/BRAVO 0M615000 THRU 0W300012
-
№АртикулНазвание
-
111-863001 NUT, (.250-28) (.25-28)NUT, (.250-28) (.25-28)
-
237-8615071 DECAL SET
(Alpha)DECAL SET
(Alpha) -
318484A3 COVER
(Bravo)COVER
(Bravo) -
437-861314A7 DECAL SET
(Bravo)DECAL SET
(Bravo) -
5863200 FLAME ARRESTORFLAME ARRESTOR
-
616-8M0113181 STUD, (.250-20/.250-28 x Special) (3 Inch)STUD, (.250-20/.250-28 x Special) (3 Inch)
-
711-8267139 NUT, (.250-28)NUT, (.250-28)
-
812-86400 WASHERWASHER
-
93310-807764A1 CARBURETOR ASSEMBLY
SN# 0M624749 & BelowCARBURETOR ASSEMBLY
SN# 0M624749 & Below -
93310-864941A01 CARBURETOR ASSEMBLY
SN# 0M624750 & UpCARBURETOR ASSEMBLY
SN# 0M624750 & Up -
1070125A02 COVER, ChokeCOVER, Choke
-
1110-33047 SCREWSCREW
-
1213-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1353-805140 PLATEPLATE
-
1422-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
1516-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
1611-8267089 NUT, (.250-28)NUT, (.250-28)
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1811-8267139 NUT, (.250-28)NUT, (.250-28)
-
1911-862902 NUT, (.312-24)NUT, (.312-24)
-
2012-20084 WASHER, (.328 x .562 x .062) (.5625)WASHER, (.328 x .562 x .062) (.5625)
-
2012-26825 WASHER, (.328 x .750 x .06) (.328)WASHER, (.328 x .750 x .06) (.328)
-
21805489T BRACKETBRACKET
-
2216-38525 STUDSTUD
-
2312-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
2411-8267139 NUT, (.250-28)NUT, (.250-28)
-
25807726A2 ADAPTORADAPTOR
-
2627-8079821 GASKETGASKET
-
2727-861246 GASKETGASKET
-
2816-807849 STUD, (.312-18/.312-24 x 3.380) (.3125 X 3.375)STUD, (.312-18/.312-24 x 3.380) (.3125 X 3.375)
-
2816-65868 STUD, (.312-18/.312-24 x 2.120) (.3125 X 2.125)STUD, (.312-18/.312-24 x 2.120) (.3125 X 2.125)
-
-27-824326A02 GASKET SETGASKET SET
