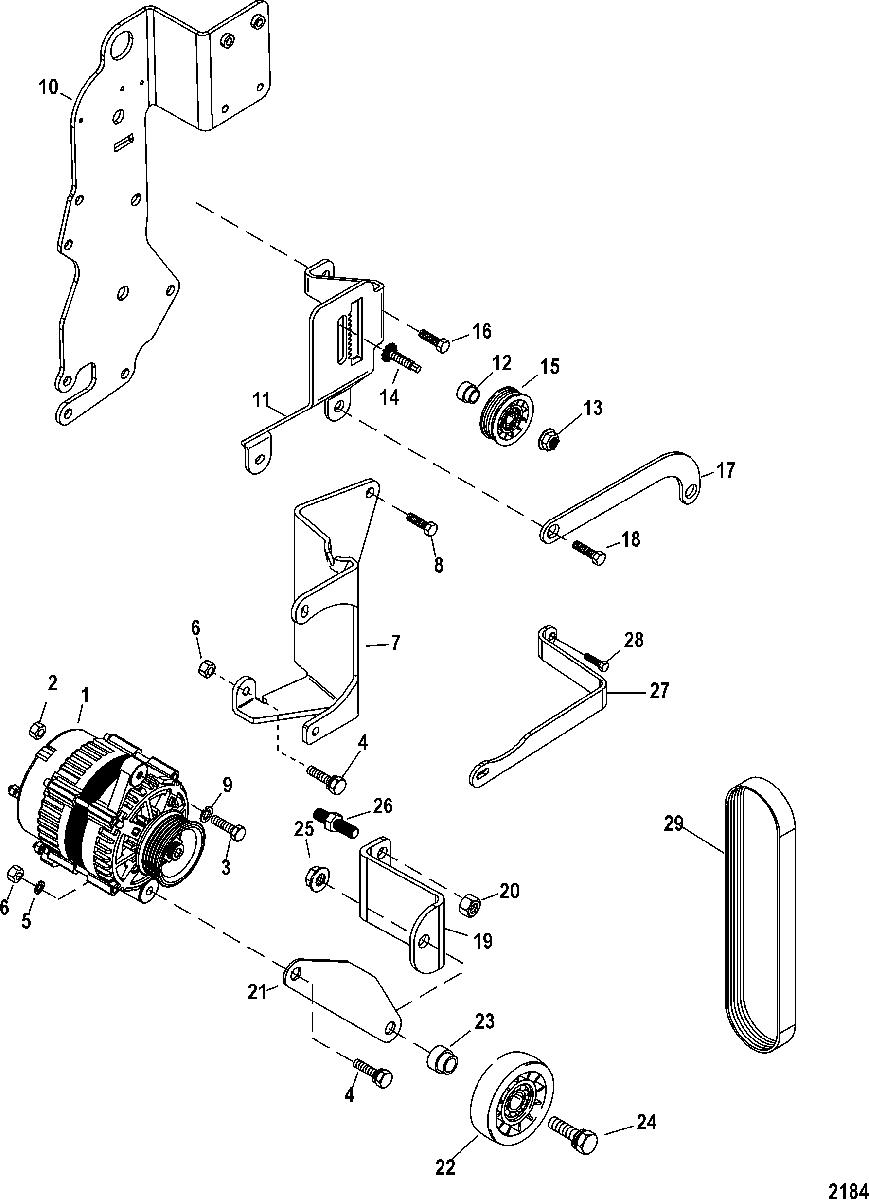

Alternator and Brackets для Mercruiser - 4.3L CARB ALPHA/BRAVO 0W310000 THRU 0W649999
-
№АртикулНазвание
-
1863077T ALTERNATOR ASSEMBLY, Black, 65 Ampere With 50mm Pulley
(Non Serviceable)ALTERNATOR ASSEMBLY, Black, 65 Ampere With 50mm Pulley
(Non Serviceable) -
211-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
310-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
410-828213 SCREW, (.312-18 x 1.500) Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange
-
512-57792 WASHERWASHER
-
611-26484 NUT, (.312-18)NUT, (.312-18)
-
7863211T01 BRACKET, Alternator MountingBRACKET, Alternator Mounting
-
810-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
912-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
10865188T01 BRACKETBRACKET
-
11862083T BRACKET, Idler AdjustingBRACKET, Idler Adjusting
-
12865193 BUSHINGBUSHING
-
1311-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
1443-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
15864625T PULLEY
(4.25 Inch Diameter)(With Power Steering)PULLEY
(4.25 Inch Diameter)(With Power Steering) -
15807757T PULLEY ASSEMBLY, Idler - Black
(3 Inch Diatmeter)(Compact Hydraulic Steering)PULLEY ASSEMBLY, Idler - Black
(3 Inch Diatmeter)(Compact Hydraulic Steering) -
1610-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
17862082T BRACE, Power SteeringBRACE, Power Steering
-
1810-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
19862084T BRACKET, Idler, Alternator Brace
(Bravo Standard Cooling)BRACKET, Idler, Alternator Brace
(Bravo Standard Cooling) -
19864456T BRACKET
(Alpha/Bravo Closed Cooling)BRACKET
(Alpha/Bravo Closed Cooling) -
2011-32219 NUT, (.375-16)
(Bravo Standard Cooling)NUT, (.375-16)
(Bravo Standard Cooling) -
2011-82671112 NUT, (.375-16)
(Alpha/Bravo Closed Cooling)NUT, (.375-16)
(Alpha/Bravo Closed Cooling) -
21862085T BRACE, Idler Bracket
(Bravo) (Alpha, Closed Cooling)BRACE, Idler Bracket
(Bravo) (Alpha, Closed Cooling) -
228M6500024 PULLEY
(Bravo) (Alpha, Closed Cooling)PULLEY
(Bravo) (Alpha, Closed Cooling) -
23865193 BUSHING
(Bravo) (Alpha, Closed Cooling)BUSHING
(Bravo) (Alpha, Closed Cooling) -
2410-56393 SCREW, (.437-20 x 1.75)
(Bravo) (Alpha, Closed Cooling)SCREW, (.437-20 x 1.75)
(Bravo) (Alpha, Closed Cooling) -
2511-859135 NUT, (.437-20) Brass/Nickel Plated
(Bravo) (Alpha, Closed Cooling)NUT, (.437-20) Brass/Nickel Plated
(Bravo) (Alpha, Closed Cooling) -
2616-860102 STUD, (.375-16 x 1.730)
(Bravo Standard Cooling)STUD, (.375-16 x 1.730)
(Bravo Standard Cooling) -
2616-863853 STUD
(Alpha/Bravo Closed Cooling)STUD
(Alpha/Bravo Closed Cooling) -
2610-32132 SCREW, (.375-16 x 1.750)
(Alpha/Bravo Closed Cooling)SCREW, (.375-16 x 1.750)
(Alpha/Bravo Closed Cooling) -
27862778 BRACKET, Alternator Brace
(Alpha, Standard Cooling)BRACKET, Alternator Brace
(Alpha, Standard Cooling) -
2810-34353 SCREW, (.375-16 x 1.00)
(Alpha, Standard Cooling)SCREW, (.375-16 x 1.00)
(Alpha, Standard Cooling) -
2957-865615Q04 BELT, Serpentine
(Alpha)(Power Steering)BELT, Serpentine
(Alpha)(Power Steering) -
2957-865615Q09 BELT, Serpentine
(Alpha)(Compact Hydraulic Steering)BELT, Serpentine
(Alpha)(Compact Hydraulic Steering) -
2957-865615Q03 BELT, Serpentine
(Bravo)(Power Steering)BELT, Serpentine
(Bravo)(Power Steering) -
2957-865615Q08 BELT, Serpentine
(Bravo)(Compact Hydraulic Steering)BELT, Serpentine
(Bravo)(Compact Hydraulic Steering)
