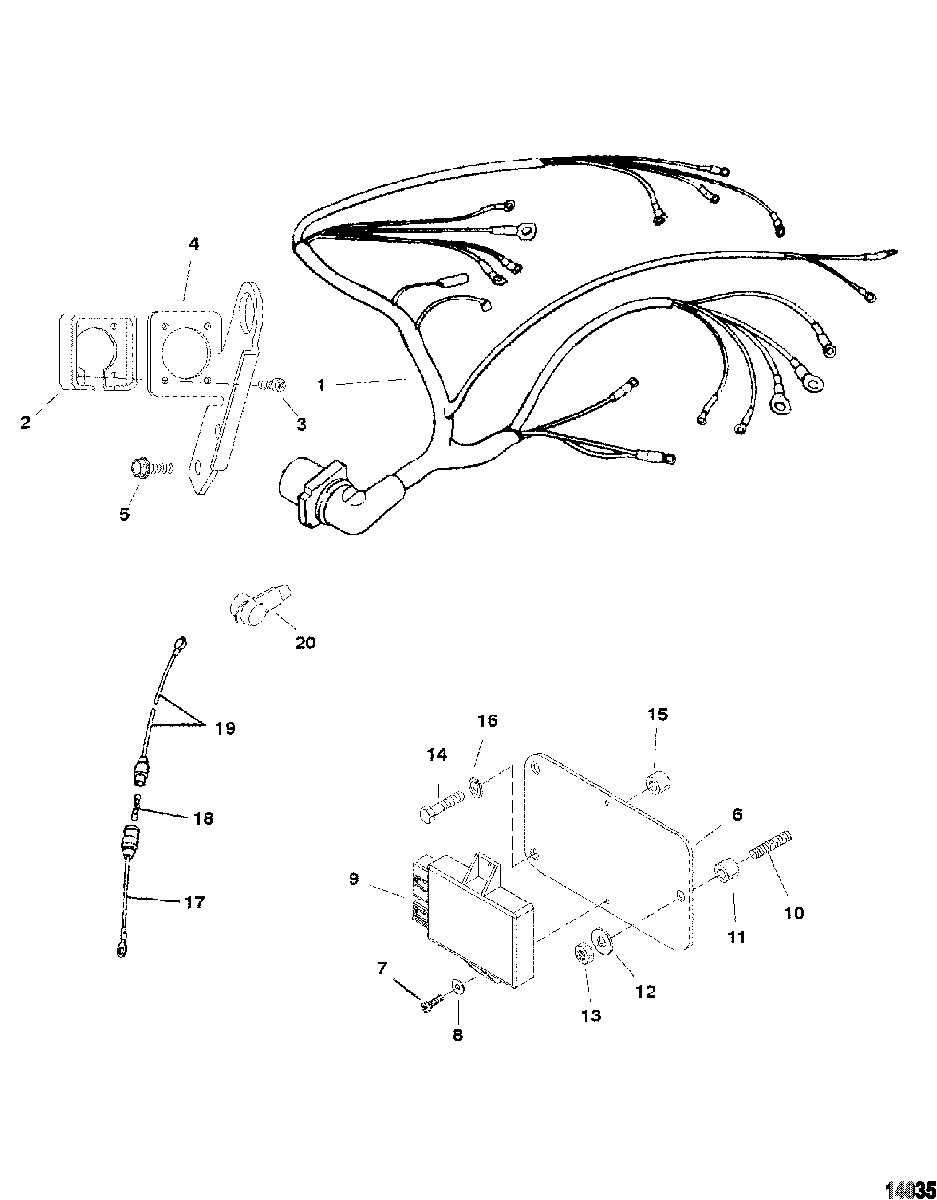

Wiring Harness And Electrical Components для Mercruiser - 4.3L (GEN +) (2 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999
-
№АртикулНазвание
-
184-861235A5 HARNESS ASSEMBLY, Wiring
(4.3L Alpha) SN# 0L618999 & BelowHARNESS ASSEMBLY, Wiring
(4.3L Alpha) SN# 0L618999 & Below -
184-861235A6 HARNESS ASSEMBLY, Wiring
(4.3LH Alpha And 4.3L/LH Bravo) SN# 0L618999 & BelowHARNESS ASSEMBLY, Wiring
(4.3LH Alpha And 4.3L/LH Bravo) SN# 0L618999 & Below -
184-862163T03 HARNESS ASSEMBLY, Wiring
SN# 0L619000 THRU 0M330610HARNESS ASSEMBLY, Wiring
SN# 0L619000 THRU 0M330610 -
184-862163T02 HARNESS ASSEMBLY, Wiring
SN# 0M330611 & UpHARNESS ASSEMBLY, Wiring
SN# 0M330611 & Up -
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4865480T BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
6861516 BRACKETBRACKET
-
710-861520 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
812-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
9861251T1 ICM MODULE, Ignition Control Module
(Alpha)ICM MODULE, Ignition Control Module
(Alpha) -
9861252T1 ICM MODULE, Ignition Control Module
(Bravo)ICM MODULE, Ignition Control Module
(Bravo) -
1010-24323 SET SCREW, (.250-20 x 1.25)
(Two Piece Exhaust Manifold)SET SCREW, (.250-20 x 1.25)
(Two Piece Exhaust Manifold) -
1123-806981 SPACER
(Two Piece Exhaust Manifold)SPACER
(Two Piece Exhaust Manifold) -
1212-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
(Two Piece Exhaust Manifold)WASHER, (.2656 x .625 x .0625) Stainless Steel
(Two Piece Exhaust Manifold) -
1311-64015 NUT, (.250-20)
(Two Piece Exhaust Manifold)NUT, (.250-20)
(Two Piece Exhaust Manifold) -
1410-98253 SCREW, (.250-20 x .500)
(OnePiece Exhaust Manifold)SCREW, (.250-20 x .500)
(OnePiece Exhaust Manifold) -
1410-76630 SCREW, (.250-20 x 1.00)
(OnePiece Exhaust Manifold)SCREW, (.250-20 x 1.00)
(OnePiece Exhaust Manifold) -
1523-91034 SPACER, (.380 x 1.00 x .530)
(OnePiece Exhaust Manifold)SPACER, (.380 x 1.00 x .530)
(OnePiece Exhaust Manifold) -
1613-26992 LOCKWASHER, (.250) Stainless Steel
(OnePiece Exhaust Manifold)LOCKWASHER, (.250) Stainless Steel
(OnePiece Exhaust Manifold) -
1784-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo Engines)CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo Engines) -
1888-79091 FUSE, 20 Ampere
(Bravo Engines)FUSE, 20 Ampere
(Bravo Engines) -
1984-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo Engines)CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo Engines) -
2085-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
