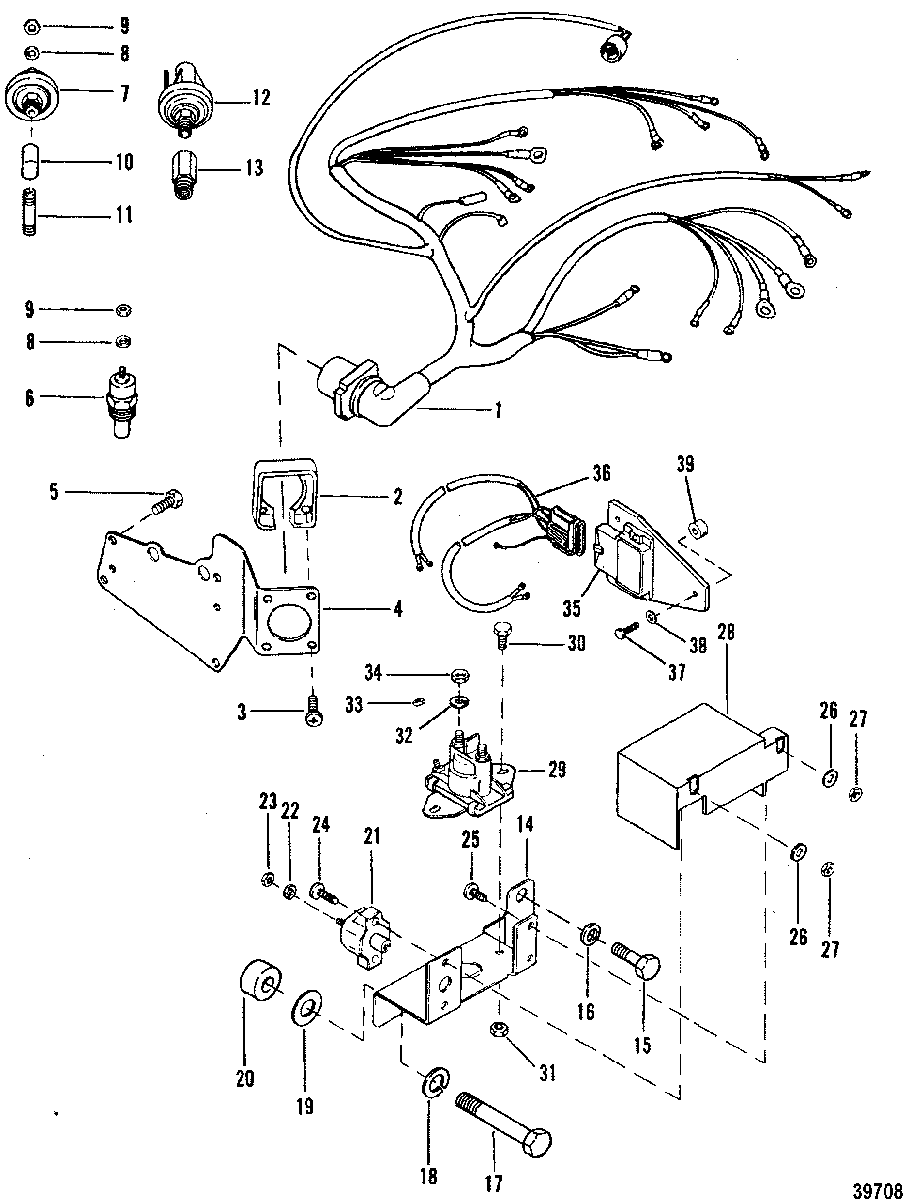

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 4.3L (GEN II) (2 BBL.) GM 262 V-6 1992-1993 0D714107 THRU 0F000877
-
№АртикулНазвание
-
184-99510A13 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
498493A2 BRACKETBRACKET
-
510-65746 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
6806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
649734 SENDER ASSEMBLY, Water Temperature (DUAL)SENDER ASSEMBLY, Water Temperature (DUAL)
-
78M0068784 SENDER, Oil PressureSENDER, Oil Pressure
-
737293T SENDER ASSEMBLY, Oil Pressure (DUAL)SENDER ASSEMBLY, Oil Pressure (DUAL)
-
813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
911-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1022-46932 ELBOWELBOW
-
1122-885153 NIPPLENIPPLE
-
1287-864252A01 SWITCH, Oil PressureSWITCH, Oil Pressure
-
1322-18021 FITTINGFITTING
-
1441170T BRACKETBRACKET
-
1510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1710-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1813-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1912-20572 WASHER, (.390 x .750 x .093)WASHER, (.390 x .750 x .093)
-
2023-57369 SPACERSPACER
-
2188-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
2213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2311-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2410-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2510-71405 SCREW, (#10-32 x .440)SCREW, (#10-32 x .440)
-
2612-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2711-61356 NUT, (#10-32) Reduced HexNUT, (#10-32) Reduced Hex
-
2885-96819T INSULATORINSULATOR
-
2989-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
3010-96138 SCREW, (1/4-28 x 5/8) (5/8")SCREW, (1/4-28 x 5/8) (5/8")
-
3111-20088 NUTNUT
-
3213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3311-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
3411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
3515247A1 IGNITION AMPLIFIERIGNITION AMPLIFIER
-
3684-15275A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
3710-76630 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
3813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3923-92152T SPACER, (.27 x .75 x .38)SPACER, (.27 x .75 x .38)
