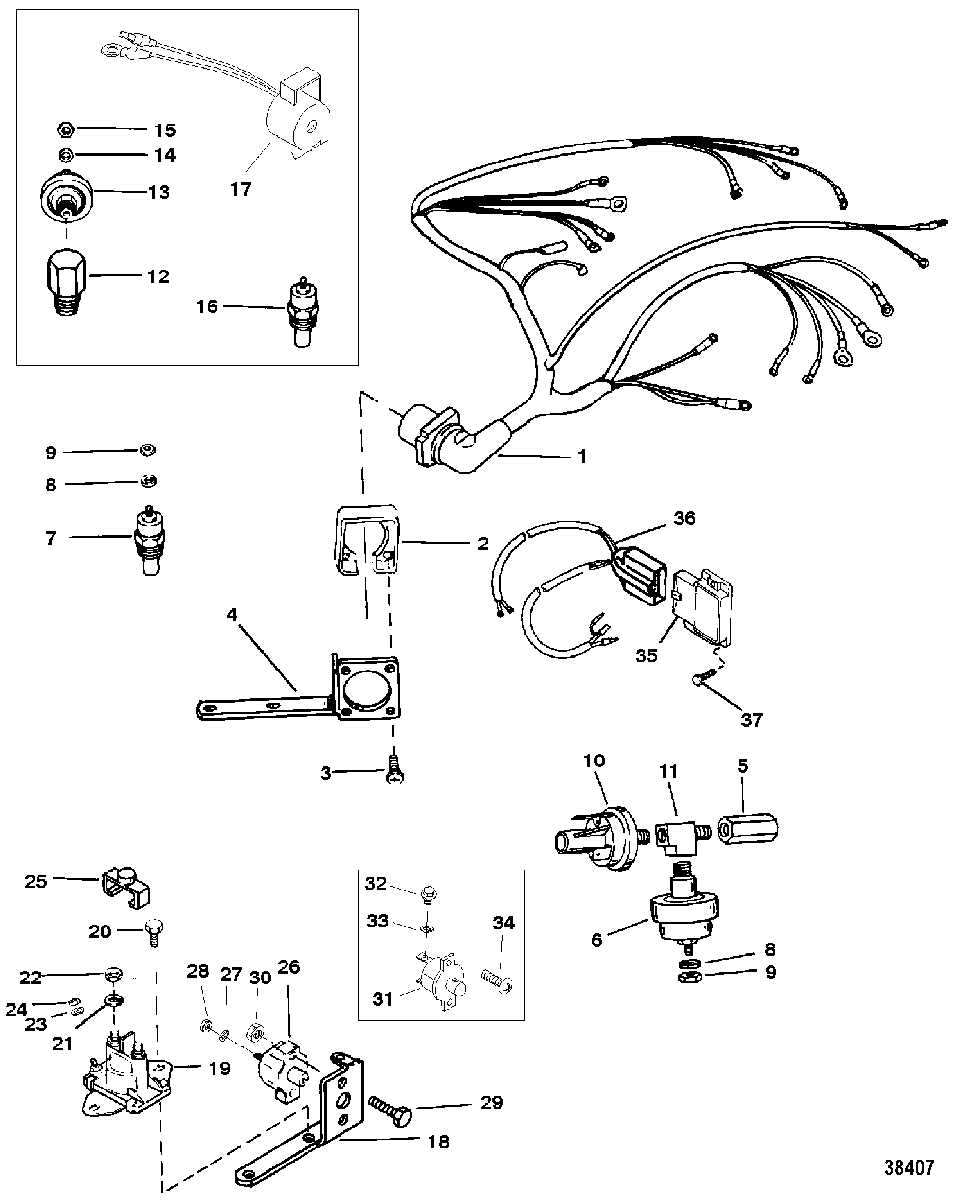

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 4.3L (GEN II) (2 BBL.) GM 262 V-6 1996 0F601127 THRU 0F802999
-
№АртикулНазвание
-
184-806217A8 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4805383T BRACKET, Harness MountingBRACKET, Harness Mounting
-
522-805059 FITTING, ReducerFITTING, Reducer
-
68M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
637293T SENDER ASSEMBLY, Oil Pressure
(DUAL STATION)SENDER ASSEMBLY, Oil Pressure
(DUAL STATION) -
7806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
749734 SENDER ASSEMBLY, Water Temperature
(DUAL STATION)SENDER ASSEMBLY, Water Temperature
(DUAL STATION) -
813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
911-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1087-864252A01 SWITCH, Oil PressureSWITCH, Oil Pressure
-
1122-286241 FITTING, TFITTING, T
-
1222-8053281 FITTING, Elbow (90 Degree - .125)
AUDIO WARNING SYSTEMFITTING, Elbow (90 Degree - .125)
AUDIO WARNING SYSTEM -
1387-805605A1 SWITCH ASSEMBLY, Oil Pressure
AUDIO WARNING SYSTEMSWITCH ASSEMBLY, Oil Pressure
AUDIO WARNING SYSTEM -
1413-26996 LOCKWASHER, (#10) Stainless Steel
AUDIO WARNING SYSTEMLOCKWASHER, (#10) Stainless Steel
AUDIO WARNING SYSTEM -
1511-68219 NUT, (#10-32) Stainless Steel
AUDIO WARNING SYSTEMNUT, (#10-32) Stainless Steel
AUDIO WARNING SYSTEM -
1648952 SWITCH, Water Temperature
AUDIO WARNING SYSTEMSWITCH, Water Temperature
AUDIO WARNING SYSTEM -
17816492A6 ALARM KIT
AUDIO WARNING SYSTEMALARM KIT
AUDIO WARNING SYSTEM -
18899719T01 BRACKET, ElectricalBRACKET, Electrical
-
1989-96158T SOLENOID, StarterSOLENOID, Starter
-
2010-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2211-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2313-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2411-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2585-97861 INSULATORINSULATOR
-
2688-11178A01 BREAKER, Circuit - 50 Ampere
BREAKER W/ NUT CONNECTIONSBREAKER, Circuit - 50 Ampere
BREAKER W/ NUT CONNECTIONS -
2713-26996 LOCKWASHER, (#10) Stainless Steel
BREAKER W/ NUT CONNECTIONSLOCKWASHER, (#10) Stainless Steel
BREAKER W/ NUT CONNECTIONS -
2811-68219 NUT, (#10-32) Stainless Steel
BREAKER W/ NUT CONNECTIONSNUT, (#10-32) Stainless Steel
BREAKER W/ NUT CONNECTIONS -
2910-45862 SCREW, (#10-32 x .875)
BREAKER W/ NUT CONNECTIONSSCREW, (#10-32 x .875)
BREAKER W/ NUT CONNECTIONS -
3011-61356 NUT, (#10-32) Reduced Hex
BREAKER W/ NUT CONNECTIONSNUT, (#10-32) Reduced Hex
BREAKER W/ NUT CONNECTIONS -
3188-11178A01 BREAKER, Circuit - 50 Ampere
BREAKER W/ SCREW CONNECTIONSBREAKER, Circuit - 50 Ampere
BREAKER W/ SCREW CONNECTIONS -
3210-68513 SCREW, (#10-32 x .375) Stainless Steel
BREAKER W/ SCREW CONNECTIONSSCREW, (#10-32 x .375) Stainless Steel
BREAKER W/ SCREW CONNECTIONS -
3313-26996 LOCKWASHER, (#10) Stainless Steel
BREAKER W/ SCREW CONNECTIONSLOCKWASHER, (#10) Stainless Steel
BREAKER W/ SCREW CONNECTIONS -
3410-57583T SCREW, (#8-32 x .375)
BREAKER W/ SCREW CONNECTIONSSCREW, (#8-32 x .375)
BREAKER W/ SCREW CONNECTIONS -
3515247T02 IGNITION MODULE, IgnitionIGNITION MODULE, Ignition
-
3684-805363A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
3710-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
