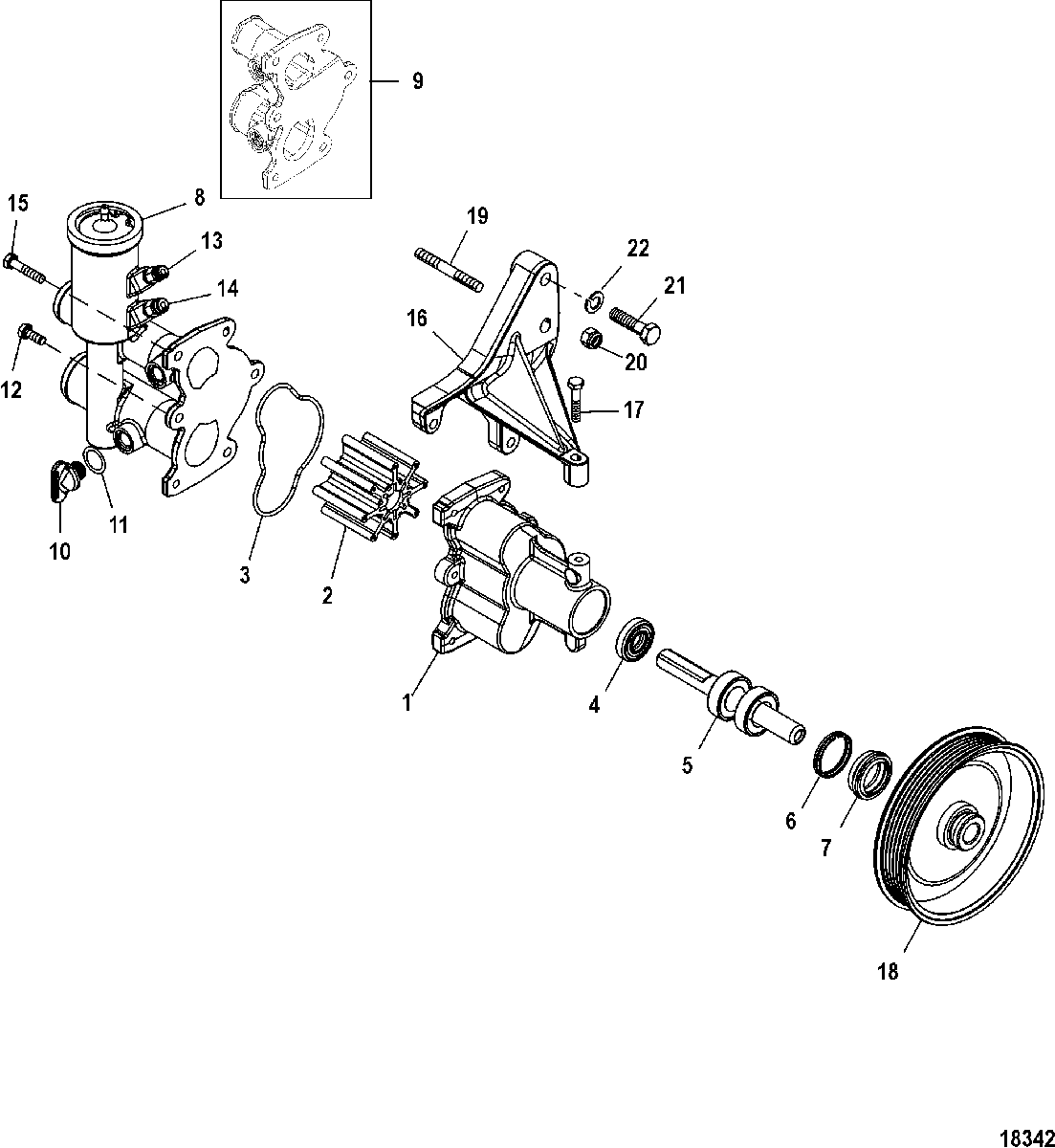

Sea Water Pump Assembly для Mercruiser - 4.3L MPI ALPHA/BRAVO 0W310000 THRU 0W649999
-
№АртикулНазвание
-
-46-8M0137216 PUMP KIT, Sea Water
(Without Air Fittings)PUMP KIT, Sea Water
(Without Air Fittings) -
-46-8M0137217 PUMP KIT, Sea Water
(With Air Fittings)PUMP KIT, Sea Water
(With Air Fittings) -
18M0118062 HOUSING ASSEMBLY, ImpellerHOUSING ASSEMBLY, Impeller
-
247-8M0104229 IMPELLERIMPELLER
-
325-841807 O-RING, (3.500 x .103) (Also included with Reference 8 and 9)O-RING, (3.500 x .103) (Also included with Reference 8 and 9)
-
426-8M2001645 SEAL, OilSEAL, Oil
-
58M0050018 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
6862039 TOLERANCE RINGTOLERANCE RING
-
726-862040 SEAL, LipSEAL, Lip
-
8863674A05 COVER KIT, Impeller Housing
(With Air Fittings)COVER KIT, Impeller Housing
(With Air Fittings) -
9862776A01 COVER KIT, Impeller Housing
(Without Air Fittings)COVER KIT, Impeller Housing
(Without Air Fittings) -
1022-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
1125-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
1210-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1322-8M0082319 FITTING, Gray - Straight, Male Air
(.1562)(Component of 46-862914T11)FITTING, Gray - Straight, Male Air
(.1562)(Component of 46-862914T11) -
1422-8M0082320 FITTING, Orange - Straight, Male Air
(.1875)(Component of 46-862914T11)FITTING, Orange - Straight, Male Air
(.1875)(Component of 46-862914T11) -
1510-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
16865143T01 BRACKET, Sea Water PumpBRACKET, Sea Water Pump
-
1710-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
18862351T PULLEYPULLEY
-
1916-863853 STUDSTUD
-
2011-82671112 NUT, (.375-16)NUT, (.375-16)
-
2110-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
2213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
