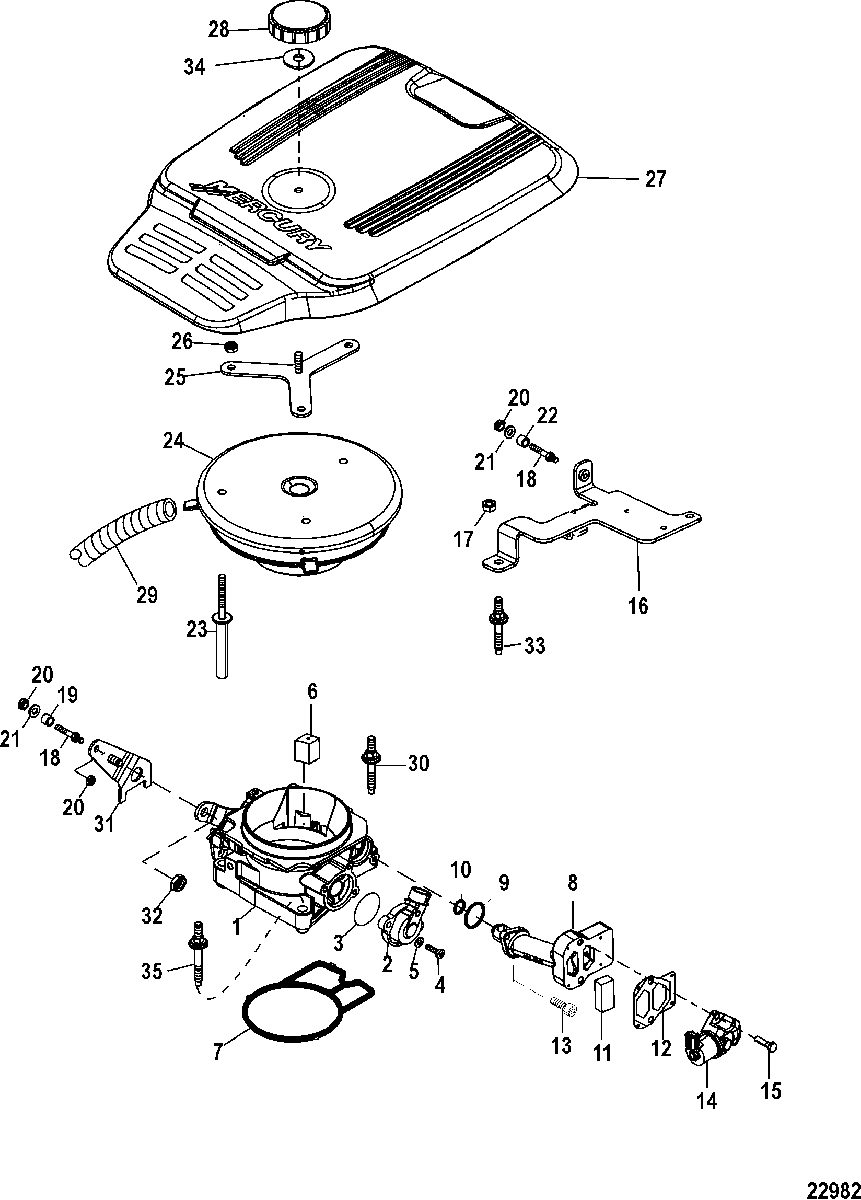

Throttle Body для Mercruiser - 4.3L MPI ALPHA/BRAVO 1A030370 THRU 1A063239
-
№АртикулНазвание
-
18M4502084 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
28M0097035 SENSOR, TPSSENSOR, TPS
-
3NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
410-853680 SCREW KITSCREW KIT
-
5NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
635-863829 MUFFLER, Intake Air ControlMUFFLER, Intake Air Control
-
727-8M4502066 GASKET, Throttle BodyGASKET, Throttle Body
-
8866295A02 IAC ADAPTOR KITIAC ADAPTOR KIT
-
925-863006 O-RINGO-RING
-
1025-808547 O-RINGO-RING
-
1135-865266 FILTERFILTER
-
12NSS NOT SOLD SEPARATE, GASKETNOT SOLD SEPARATE, GASKET
-
1310-4008612 SCREW, (M4 x 12)SCREW, (M4 x 12)
-
14862998 VALVE, Idle AirVALVE, Idle Air
-
1510-4008820 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
16863421T1 BRACKETBRACKET
-
1711-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1816-97477A3 STUD KIT, Throttle AnchorSTUD KIT, Throttle Anchor
-
19NSS NOT SOLD SEPARATE, SpacerNOT SOLD SEPARATE, Spacer
-
2011-8267139 NUT, (.250-28)NUT, (.250-28)
-
2112-20533 WASHERWASHER
-
2223-31866 SPACER, (.256 x .313 x .625)SPACER, (.256 x .313 x .625)
-
2223-11284 SPACER, (.62 Diameter)SPACER, (.62 Diameter)
-
2316-864338 STUD, SpecialSTUD, Special
-
24863416T FLAME ARRESTORFLAME ARRESTOR
-
25863423 BRACKET, Cover MountBRACKET, Cover Mount
-
2611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
27879288T66 COVER, Black, EngineCOVER, Black, Engine
-
2811-863701 KNOB, Engine CoverKNOB, Engine Cover
-
2932-8M0086022 HOSE, (16.50 Inches Bulk), BreatherHOSE, (16.50 Inches Bulk), Breather
-
3016-8M0088142 STUDSTUD
-
31863417 BRACKET, ThrottleBRACKET, Throttle
-
3211-8267138 NUT, (.25-20)NUT, (.25-20)
-
3316-8M0088142 STUDSTUD
-
3412-86400 WASHER, SealWASHER, Seal
-
3516-8M0054510 STUDSTUD
