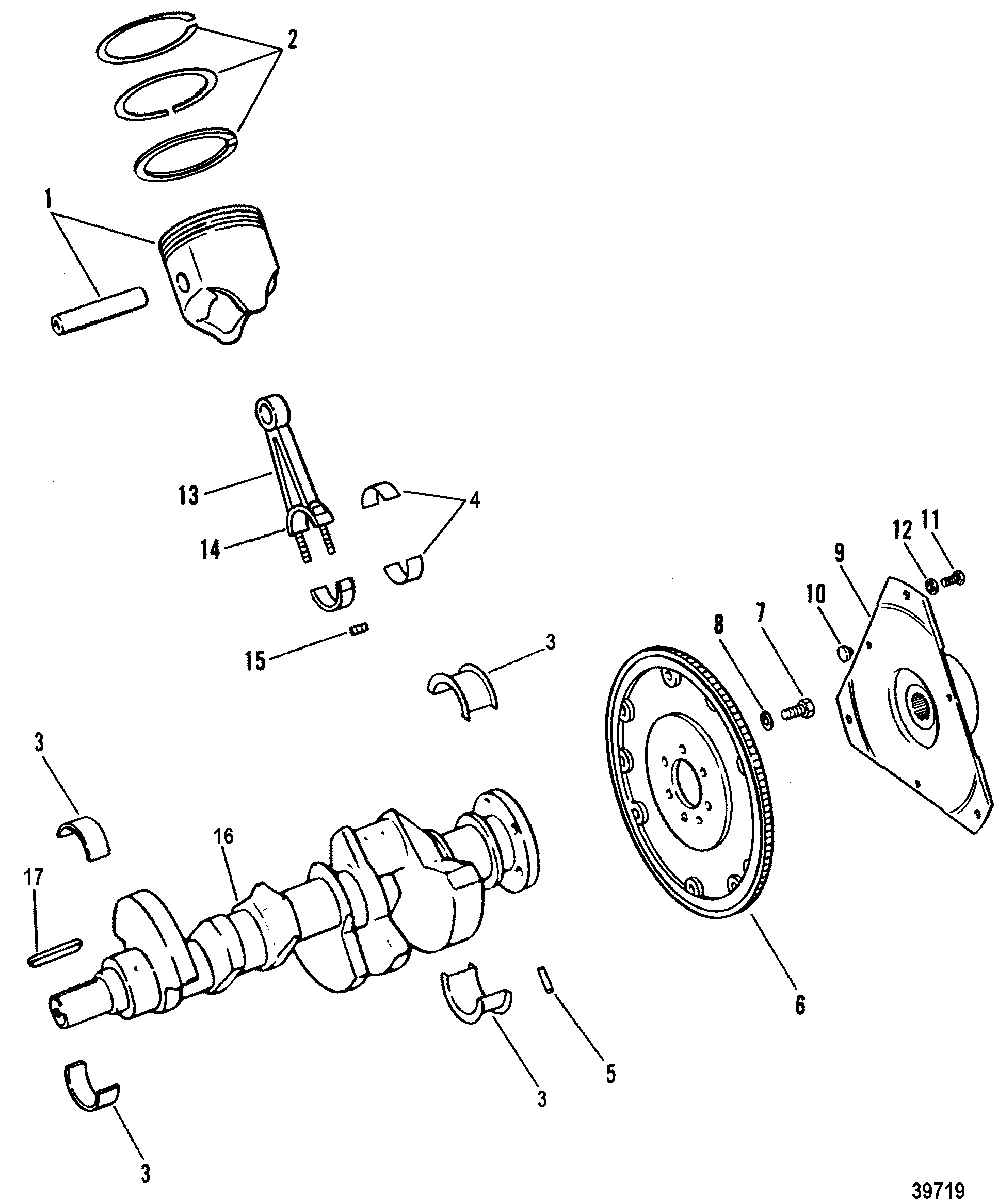

CRANKSHAFT AND PISTONS для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1992-1993 0D714370 THRU 0F001219

№

Артикул

Название
1

735-850097 PISTON ASSEMBLY (Standard)
(SEE NOTE)

PISTON ASSEMBLY (Standard)
(SEE NOTE)

26 520 ₽
1

735-850098 PISTON ASSEMBLY (.030 O.S.)

PISTON ASSEMBLY (.030 O.S.)

30 020 ₽
2

39-17464 RING SET, Piston (Standard)
(SEE NOTE)

RING SET, Piston (Standard)
(SEE NOTE)

3 960 ₽
2

39-17465 RING, Piston (.030 O.S.)

RING, Piston (.030 O.S.)

3 790 ₽
3

23-818465 BEARING SET, 5 Pair (Standard)

BEARING SET, 5 Pair (Standard)

14 090 ₽
3

23-818466 BEARING SET, 5 Pair (.001 U.S.)

BEARING SET, 5 Pair (.001 U.S.)

11 400 ₽
3

23-818467 BEARING SET, 5 Pair (.010 U.S.)

BEARING SET, 5 Pair (.010 U.S.)

15 510 ₽
3

23-818468 BEARING SET, 5 Pair (.020 U.S.)

BEARING SET, 5 Pair (.020 U.S.)

13 990 ₽
4

23-11992001 BEARING (Standard - PAIR)

BEARING (Standard - PAIR)

17 000 ₽
4

23-11993 BEARING (.001 U.S. - PAIR)

BEARING (.001 U.S. - PAIR)

12 630 ₽
4

23-811858001 BEARING (.010 U.S. - PAIR)

BEARING (.010 U.S. - PAIR)

2 440 ₽
4

23-811859 BEARING (.020 U.S. - PAIR)

BEARING (.020 U.S. - PAIR)

2 410 ₽
5

17-843378 PIN, Dowel (1/4 n. Diameter)

PIN, Dowel (1/4 n. Diameter)

1 110 ₽
6

222-9518 FLYWHEEL

FLYWHEEL

53 850 ₽
7

10-845757 SCREW, (.437-20 x 1.00)

SCREW, (.437-20 x 1.00)

360 ₽
8

13-39131 LOCKWASHER, (.437)

LOCKWASHER, (.437)

90 ₽
9

18643A7 COUPLING ASSEMBLY

COUPLING ASSEMBLY

51 270 ₽
10

18644 BUMPER, Rubber

BUMPER, Rubber

280 ₽
11

10-14883 SCREW, (.375-16 x 1.12)

SCREW, (.375-16 x 1.12)

150 ₽
12

12-13510 WASHER

WASHER

350 ₽
13

614-811839T02 CONNECTING ROD

CONNECTING ROD

41 160 ₽
14

10-11969 BOLT

BOLT

1 180 ₽
15

11-37493 NUT, (.375-24)

NUT, (.375-24)

260 ₽
16

429-9517A1 CRANKSHAFT

CRANKSHAFT

135 300 ₽
17

28-818485 KEY

KEY

800 ₽
