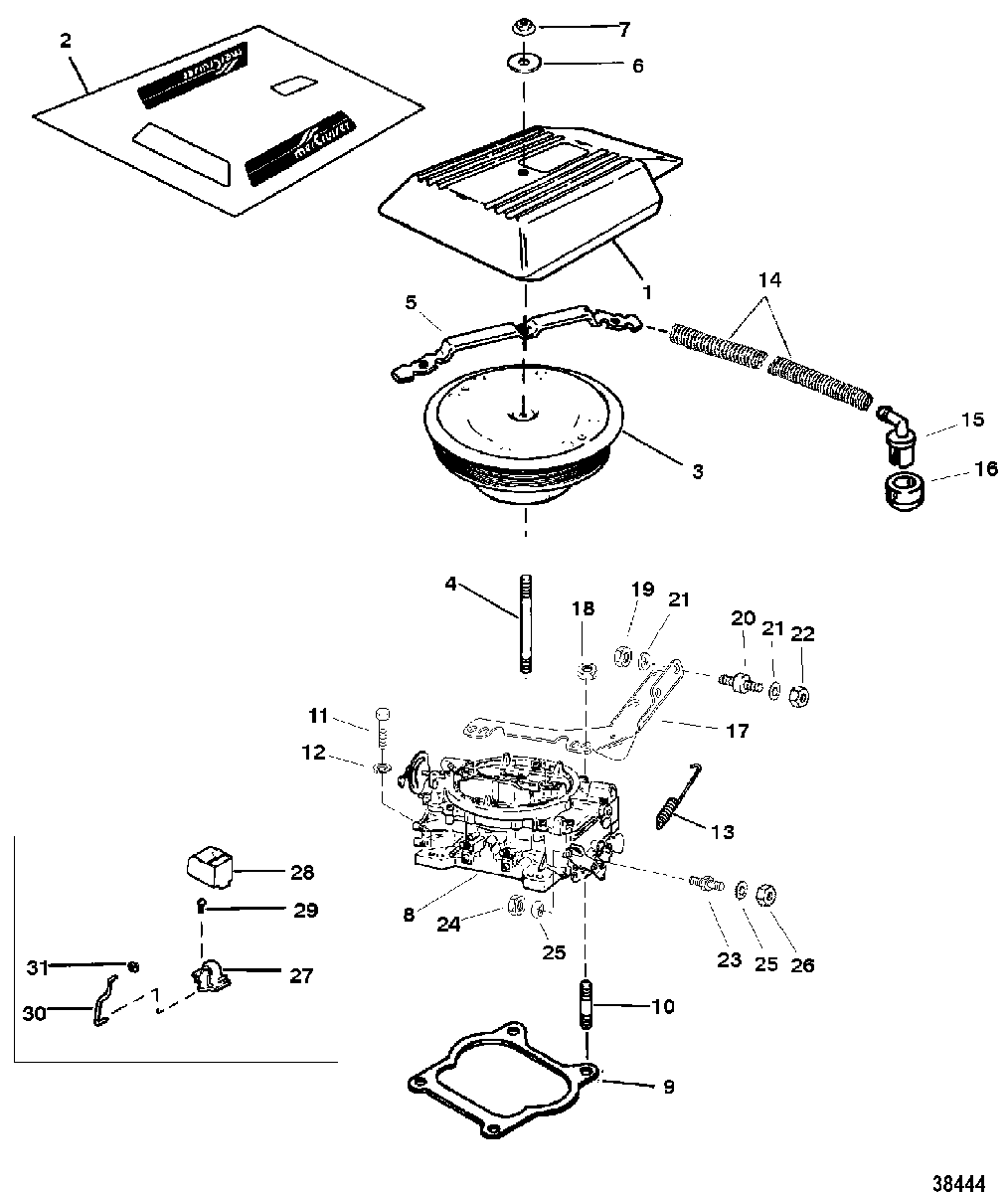

CARBURETOR AND THROTTLE LINKAGE(4 BARREL) для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1993-1995 0F001220 THRU 0F601126
-
№АртикулНазвание
-
118484A3 COVERCOVER
-
237-812776A23 DECAL SETDECAL SET
-
3805298A1 FLAME ARRESTORFLAME ARRESTOR
-
416-805296 STUD, (4.50 Inch)STUD, (4.50 Inch)
-
5805314 RETAINER, Breather HoseRETAINER, Breather Hose
-
612-86400 WASHERWASHER
-
711-826709109 NUT, (.250-28)NUT, (.250-28)
-
83310-807826R02 CARBURETOR (WEBER)
(See Note)CARBURETOR (WEBER)
(See Note) -
83310-806120A1 CARBURETOR (WEBER)(BODENSEE)
(See Note)CARBURETOR (WEBER)(BODENSEE)
(See Note) -
927-524572 GASKETGASKET
-
1016-8M0113177 STUD, (.312 x 1.500)STUD, (.312 x 1.500)
-
1110-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
1213-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
1324-897454 SPRINGSPRING
-
1432-8M0086022 HOSE, Breather (11.25")HOSE, Breather (11.25")
-
NS54-53101 CLAMPCLAMP
-
1597850T ELBOW, 90 Degree, BreatherELBOW, 90 Degree, Breather
-
1623-8M0071559 GROMMET (USE WITH METAL ROCKER COVER)GROMMET (USE WITH METAL ROCKER COVER)
-
1625-827152 GROMMET (USE WITH PLASTIC ROCKER COVER)GROMMET (USE WITH PLASTIC ROCKER COVER)
-
17805359T BRACKETBRACKET
-
1811-29250 NUT, (.312-24)NUT, (.312-24)
-
1911-8267089 NUT, (.250-28)NUT, (.250-28)
-
2016-818192 STUDSTUD
-
2112-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
2211-826709109 NUT, (.250-28)NUT, (.250-28)
-
2316-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
2411-8267089 NUT, (.250-28)NUT, (.250-28)
-
2512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2611-826709109 NUT, (.250-28)NUT, (.250-28)
-
2766205 CHOKECHOKE
-
2863922 COVERCOVER
-
2910-69235 SCREW, (.190-24 x .500)SCREW, (.190-24 x .500)
-
30806936 ROD, ChokeROD, Choke
-
3153-818299 E RINGE RING
