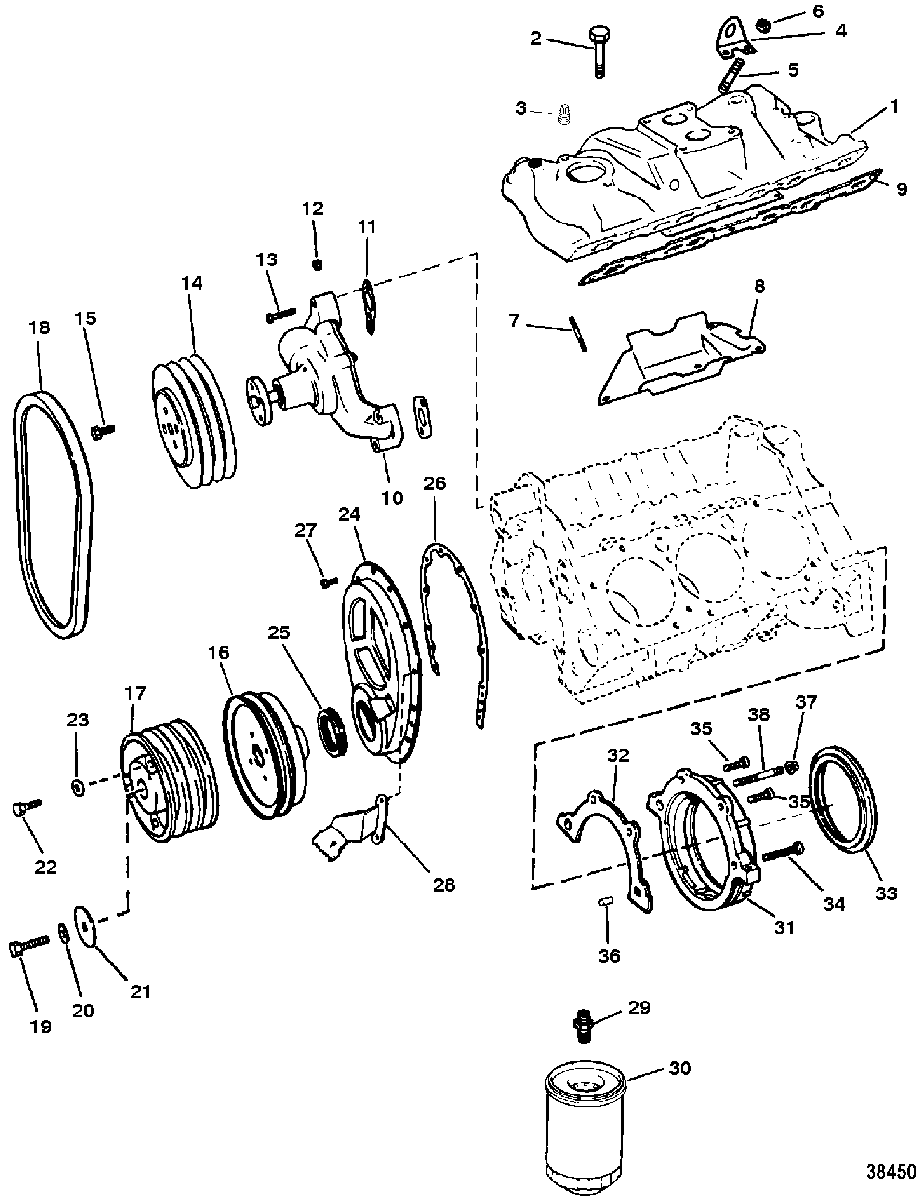

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1996 0F601127 THRU 0F802999
-
№АртикулНазвание
-
1824324T MANIFOLD, Intake
(2 BBL.)MANIFOLD, Intake
(2 BBL.) -
1824330T MANIFOLD, Intake
(4 BBL.)MANIFOLD, Intake
(4 BBL.) -
210-11976 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
322-75983 PLUG (1/2-14)PLUG (1/2-14)
-
442453 BRACKET, FrontBRACKET, Front
-
454-47512 LIFTING EYE, RearLIFTING EYE, Rear
-
516-8M2004610 STUD, (.375-16 x 2.130)STUD, (.375-16 x 2.130)
-
611-32219 NUT, (.375-16)NUT, (.375-16)
-
7NSS NOT SOLD SEPARATE, STUD (GM#3959544)NOT SOLD SEPARATE, STUD (GM#3959544)
-
8824325 GUARDGUARD
-
927-824326 GASKET SETGASKET SET
-
1046-8M0113734 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
1127-34897 GASKETGASKET
-
1222-48336 PLUG, Water Pump, Pipe (1/2-14)PLUG, Water Pump, Pipe (1/2-14)
-
1310-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
1310-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
1310-52200 SCREW, (1.625 In.) (3/8-16 x 1-1/2 in.)SCREW, (1.625 In.) (3/8-16 x 1-1/2 in.)
-
1316-8M0076418 STUD, (.312-24/.375-16 x 2.5625)STUD, (.312-24/.375-16 x 2.5625)
-
1419692T01 PULLEY, (7 In. Diameter)PULLEY, (7 In. Diameter)
-
1510-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
16824319 BALANCER
(USE WITH STAMPED METAL TIMING COVER)BALANCER
(USE WITH STAMPED METAL TIMING COVER) -
16809892T BALANCER, Harmonic
(USE WITH PLASTIC TIMING COVER)BALANCER, Harmonic
(USE WITH PLASTIC TIMING COVER) -
1790081A1 PULLEYPULLEY
-
1857-48120Q1 V BELT, (46 Inch)V BELT, (46 Inch)
-
1910-8M2021674 SCREW, (.437-20 x 2.50)SCREW, (.437-20 x 2.50)
-
2013-39131 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
2112-35332001 WASHERWASHER
-
2210-53833 BOLT, (.375-24 x 2.00)BOLT, (.375-24 x 2.00)
-
2312-34714 WASHERWASHER
-
24855400 COVER
STAMPED METAL TIMING COVERCOVER
STAMPED METAL TIMING COVER -
24809893T TIMING COVER ASSEMBLY (screws, grommets and oil seal are N.S.S.)
PLASTIC TIMING COVERTIMING COVER ASSEMBLY (screws, grommets and oil seal are N.S.S.)
PLASTIC TIMING COVER -
2526-97335 SEAL, Oil
STAMPED METAL TIMING COVERSEAL, Oil
STAMPED METAL TIMING COVER -
2627-824323 GASKET
STAMPED METAL TIMING COVERGASKET
STAMPED METAL TIMING COVER -
2710-8M0040582 SCREW
STAMPED METAL TIMING COVERSCREW
STAMPED METAL TIMING COVER -
2875435A1 POINTER
STAMPED METAL TIMING COVERPOINTER
STAMPED METAL TIMING COVER -
2911972 ADAPTOR
W/O REMOTE OIL FILTERADAPTOR
W/O REMOTE OIL FILTER -
3035-883702Q FILTER, Oil
W/O REMOTE OIL FILTERFILTER, Oil
W/O REMOTE OIL FILTER -
3114239 RETAINER, Oil SealRETAINER, Oil Seal
-
3227-881715 GASKETGASKET
-
3326-8M0077606 SEAL, OilSEAL, Oil
-
3410-8M0064241 BOLT, (.250-20 x 1.750)BOLT, (.250-20 x 1.750)
-
3510-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
3617-14263 PIN, DowelPIN, Dowel
-
3711-11996 NUT (1/4-20)NUT (1/4-20)
-
3816-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
