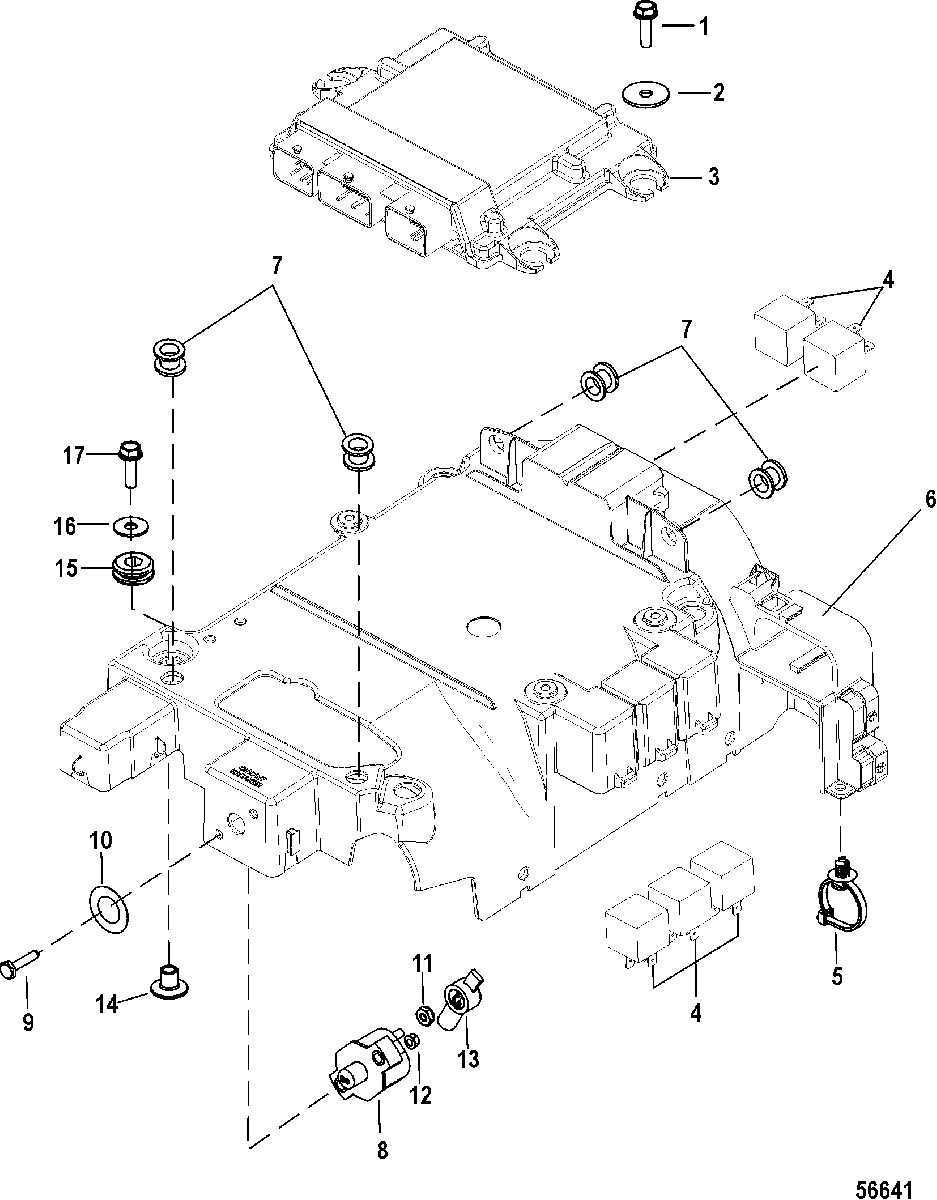

Electrical Components, Bracket and Propulsion Control Module для Mercruiser - 4.5L MPI 250 Alpha/Bravo 2A441953 & Up
-
№АртикулНазвание
-
110-897445501 SCREW, (M6 x 20 MM)SCREW, (M6 x 20 MM)
-
212-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
377-8M0097176 PCM, Propulsion Control Module
250 HP A EC (DTM)PCM, Propulsion Control Module
250 HP A EC (DTM) -
377-8M0097177 PCM, Propulsion Control Module
250 HP A Non-EC (DTM)PCM, Propulsion Control Module
250 HP A Non-EC (DTM) -
377-8M0097178 PCM, Propulsion Control Module
250 HP B Non-EC (DTS)PCM, Propulsion Control Module
250 HP B Non-EC (DTS) -
377-8M0097179 PCM, Propulsion Control Module
250 HP B EC (DTS)PCM, Propulsion Control Module
250 HP B EC (DTS) -
377-8M0097180 PCM, Propulsion Control Module
250 HP B EC (DTM)PCM, Propulsion Control Module
250 HP B EC (DTM) -
377-8M0097181 PCM, Propulsion Control Module
250 HP B Non-EC (DTM)PCM, Propulsion Control Module
250 HP B Non-EC (DTM) -
377-8M0104328 PCM, Propulsion Control Module
200 HP A EC (DTM)PCM, Propulsion Control Module
200 HP A EC (DTM) -
377-8M0104329 PCM, Propulsion Control Module
200 HP A Non-EC (DTM)PCM, Propulsion Control Module
200 HP A Non-EC (DTM) -
48M0057697 CUBE RELAYCUBE RELAY
-
554-899145 CLIP, Tie StrapCLIP, Tie Strap
-
68M0095476 BRACKET, ElectricalBRACKET, Electrical
-
725-8M0096302 GROMMETGROMMET
-
888-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
910-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
1037-72554 DECAL, Circuit BreakerDECAL, Circuit Breaker
-
1111-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1211-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1385-89919 BOOT, Insulator - BlackBOOT, Insulator - Black
-
1423-856954 BUSHINGBUSHING
-
1525-834985 GROMMETGROMMET
-
1612-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1710-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
NS54-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
