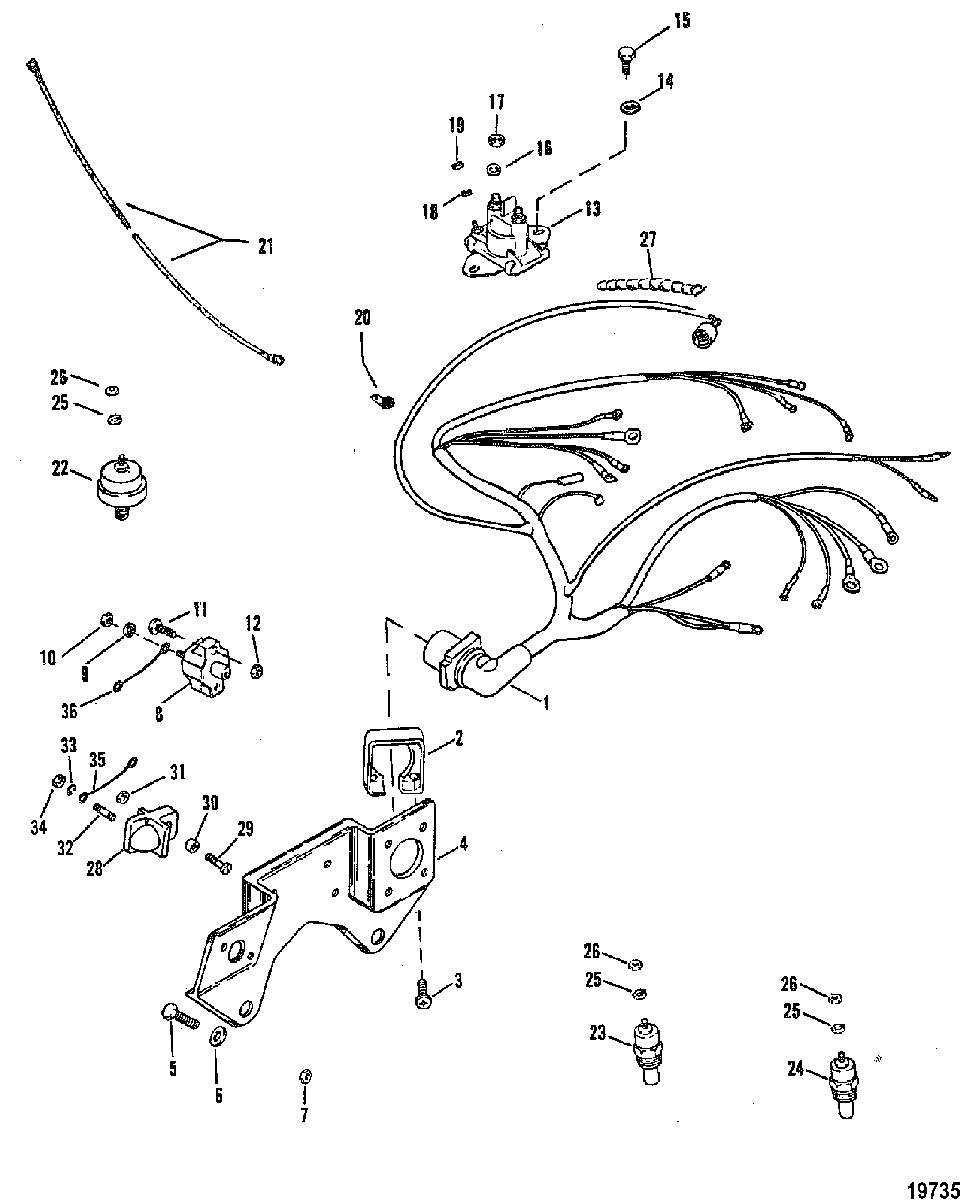

Wiring Harness, Electrical and Ignition для Mercruiser - 370 TRS GM 454 V-8 1978-1985 4179554 THRU 6721527
-
№АртикулНазвание
-
184-86677A04 HARNESS ASSEMBLY
SN# 05346944 & BelowHARNESS ASSEMBLY
SN# 05346944 & Below -
184-86683A3 HARNESS ASSEMBLY
(370/400/440) SN# 05346945 & UpHARNESS ASSEMBLY
(370/400/440) SN# 05346945 & Up -
184-93449A1 HARNESS ASSEMBLY
(460) SN# 05346945 & UpHARNESS ASSEMBLY
(460) SN# 05346945 & Up -
-88-79023T90 FUSE ASSEMBLY, 90 Ampere
SN# 05346944 & BelowFUSE ASSEMBLY, 90 Ampere
SN# 05346944 & Below -
-85-79695T BOOT, Insulator - Black
SN# 05346944 & BelowBOOT, Insulator - Black
SN# 05346944 & Below -
-13-26992 LOCKWASHER, (.250) Stainless Steel, FUSE STUD
SN# 05346944 & BelowLOCKWASHER, (.250) Stainless Steel, FUSE STUD
SN# 05346944 & Below -
-11-20088 NUT, FUSE STUD
SN# 05346944 & BelowNUT, FUSE STUD
SN# 05346944 & Below -
-84-79139A7 WIRE ASSEMBLY, FUSE TO CIRCUIT BREAKER
SN# 05346944 & BelowWIRE ASSEMBLY, FUSE TO CIRCUIT BREAKER
SN# 05346944 & Below -
-84-70503A5 WIRE ASSEMBLY, ALTERNATOR (WHITE)
SN# 05346944 & BelowWIRE ASSEMBLY, ALTERNATOR (WHITE)
SN# 05346944 & Below -
-84-62545A4 WIRE ASSEMBLY, ALTERNATOR (RED)
SN# 05346944 & BelowWIRE ASSEMBLY, ALTERNATOR (RED)
SN# 05346944 & Below -
226079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKETPLATE, WIRING HARNESS TO MOUNTING BRACKET
-
310-46718 SCREW, (#8-32 x 3/4), PLATE TO MOUNTING BRACKET (3/4")SCREW, (#8-32 x 3/4), PLATE TO MOUNTING BRACKET (3/4")
-
487090T BRACKET, MOUNTING HARNESS & CIRCUIT BREAKERBRACKET, MOUNTING HARNESS & CIRCUIT BREAKER
-
510-35871 SCREW, (.375-24 x 1.500), MOUNTING BRACKETSCREW, (.375-24 x 1.500), MOUNTING BRACKET
-
612-20572 WASHER, (.390 x .750 x .093), MOUNTING BRACKET SCREWWASHER, (.390 x .750 x .093), MOUNTING BRACKET SCREW
-
711-23161 NUT, (.375-24), MOUNTING BRACKET SCREWNUT, (.375-24), MOUNTING BRACKET SCREW
-
888-11178A01 BREAKER, Circuit - 50 Ampere (50 AMP)BREAKER, Circuit - 50 Ampere (50 AMP)
-
913-26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINALLOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
-
1011-45076 NUT, (#10-32) Brass, CIRCUIT BREAKER TERMINALNUT, (#10-32) Brass, CIRCUIT BREAKER TERMINAL
-
1110-45862 SCREW, (#10-32 x .875), CIRCUIT BREAKER TO BRACKETSCREW, (#10-32 x .875), CIRCUIT BREAKER TO BRACKET
-
1211-46438 NUT, (#10-32), CIRCUIT BREAKER SCREWNUT, (#10-32), CIRCUIT BREAKER SCREW
-
1389-853654A1 SOLENOID, StarterSOLENOID, Starter
-
1413-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1510-69054 SCREW, (.250-20 x .620), STARTER SOLENOID TO BRACKETSCREW, (.250-20 x .620), STARTER SOLENOID TO BRACKET
-
1613-26993 LOCKWASHER, (.312), STARTER SOLENOID TERMINALLOCKWASHER, (.312), STARTER SOLENOID TERMINAL
-
1711-68292 NUT, (.312-18), STARTER SOLENOID TERMINALNUT, (.312-18), STARTER SOLENOID TERMINAL
-
1813-26996 LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINAL
-
1911-45076 NUT, (#10-32) Brass, STARTER SOLENOID TERMINALNUT, (#10-32) Brass, STARTER SOLENOID TERMINAL
-
2054-47483 J CLIP, WIRING HARNESSJ CLIP, WIRING HARNESS
-
2184-73125A1 WIRE ASSEMBLY, NEUTRAL SWITCHWIRE ASSEMBLY, NEUTRAL SWITCH
-
228M0068784 SENDER, OIL PRESSURESENDER, OIL PRESSURE
-
2397258A1 SENDER ASSEMBLY, OIL TEMPERATURESENDER ASSEMBLY, OIL TEMPERATURE
-
24806490T SENDER ASSEMBLY, WATER TEMPERATURESENDER ASSEMBLY, WATER TEMPERATURE
-
2513-26996 LOCKWASHER, (#10) Stainless Steel, SENDER TERMINALSLOCKWASHER, (#10) Stainless Steel, SENDER TERMINALS
-
2611-45076 NUT, (#10-32) Brass, SENDER TERMINALSNUT, (#10-32) Brass, SENDER TERMINALS
-
2732-77690 LOOM, (12.00 Inches x .250 Spiral Cut), PLASTIC (1/4" DIA)LOOM, (12.00 Inches x .250 Spiral Cut), PLASTIC (1/4" DIA)
-
2732-77760 LOOM, (12.00 Inches x .500 Spiral Cut), PLASTIC (1/2" DIA)LOOM, (12.00 Inches x .500 Spiral Cut), PLASTIC (1/2" DIA)
-
2886-66986 TERMINAL BLOCK
(460)TERMINAL BLOCK
(460) -
2910-32627 SCREW, (.190-32 x 1.50), TERMINAL BLOCK TO BRACKET
(460)SCREW, (.190-32 x 1.50), TERMINAL BLOCK TO BRACKET
(460) -
3023-309772 SPACER, TERMINAL BLOCK SCREW
(460)SPACER, TERMINAL BLOCK SCREW
(460) -
3111-20110 NUT, (#10-32), TERMINAL BLOCK SCREW
(460)NUT, (#10-32), TERMINAL BLOCK SCREW
(460) -
3216-45715 STUD, (10-32 x .718), TERMINAL BLOCK
(460)STUD, (10-32 x .718), TERMINAL BLOCK
(460) -
3313-26996 LOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK STUD
(460)LOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK STUD
(460) -
3411-45076 NUT, (#10-32) Brass, TERMINAL BLOCK STUD
(460)NUT, (#10-32) Brass, TERMINAL BLOCK STUD
(460) -
3584-848879A1 CABLE ASSEMBLY (RED)
(460)CABLE ASSEMBLY (RED)
(460) -
3684-62189A1 WIRE ASSEMBLY (SALMON)
(460)WIRE ASSEMBLY (SALMON)
(460)
