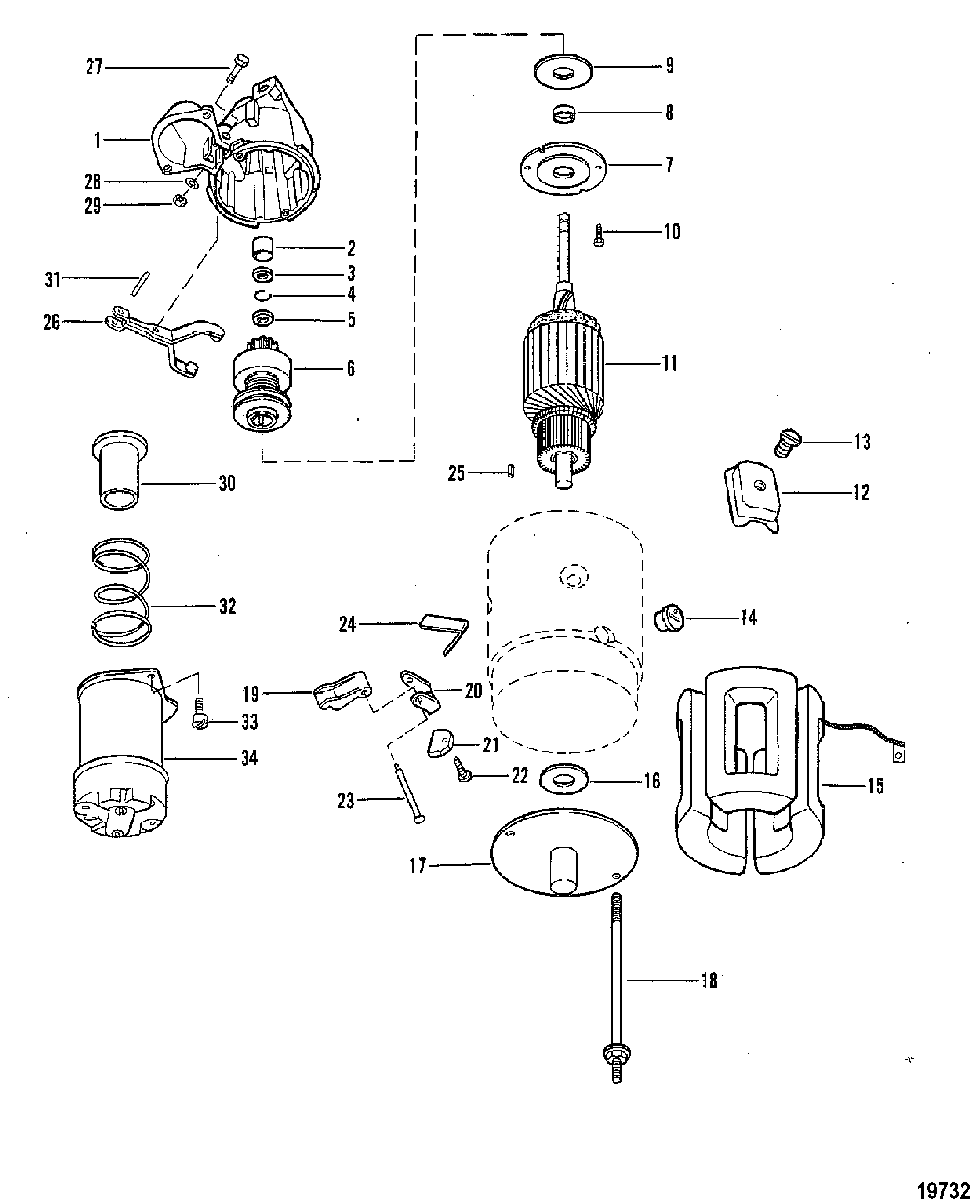

Starter Motor Assembly для Mercruiser - 400 TRS GM 454 V-8 1980-1986 4179554 THRU 0B457644
-
№АртикулНазвание
-
-50-808011A05 STARTER MOTOR ASSEMBLEYSTARTER MOTOR ASSEMBLEY
-
171696 HOUSING, DRIVE ENDHOUSING, DRIVE END
-
223-33369 BUSHING, DRIVE END HOUSINGBUSHING, DRIVE END HOUSING
-
323-809457 COLLAR, THRUSTCOLLAR, THRUST
-
453-33290 RING, Retaining, PINION STOP COLLARRING, Retaining, PINION STOP COLLAR
-
533291 COLLAR, PINION STOPCOLLAR, PINION STOP
-
668608 DRIVE ASSEMBLY, CLUTCHDRIVE ASSEMBLY, CLUTCH
-
7N.S.S. Not Sold Separate, Plate-Bearing (DELCO REMY #1956939)Not Sold Separate, Plate-Bearing (DELCO REMY #1956939)
-
823-71694 BUSHING, BEARING PLATEBUSHING, BEARING PLATE
-
912-68614 WASHER, BEARING PLATEWASHER, BEARING PLATE
-
1010-79209 SCREWSCREW
-
1175665 ARMATUREARMATURE
-
12N.S.S. Not Sold Separate, Shoe, Pole-Field Coil (DELCO REMY #810601)Not Sold Separate, Shoe, Pole-Field Coil (DELCO REMY #810601)
-
13N.S.S. Not Sold Separate, Screw, Pole Shoe to Field Coil (DELCO REMY #1968396)Not Sold Separate, Screw, Pole Shoe to Field Coil (DELCO REMY #1968396)
-
1425-79208 GROMMET, FIELD COIL- FIELD FRAMEGROMMET, FIELD COIL- FIELD FRAME
-
1575664 COIL ASSEMBLYCOIL ASSEMBLY
-
1612-33258 WASHER, Leather, COMMUTATOR END FRAMEWASHER, Leather, COMMUTATOR END FRAME
-
1779211 FRAME, COMMUTATOR END-LOWERFRAME, COMMUTATOR END-LOWER
-
18N.S.S. Not Sold Separate, Thru Bolt
(DELCO REMY #1941111)Not Sold Separate, Thru Bolt
(DELCO REMY #1941111) -
18N.S.S. Not Sold Separate, Thru Bolt
(DELCO REMY #1939970)Not Sold Separate, Thru Bolt
(DELCO REMY #1939970) -
1933284 HOLDER, INSULATED- FIELD FRAME BRUSHHOLDER, INSULATED- FIELD FRAME BRUSH
-
2033283 HOLDER, FIELD FRAME BRUSH GROUNDHOLDER, FIELD FRAME BRUSH GROUND
-
2133270 BRUSH, FIELD FRAMEBRUSH, FIELD FRAME
-
22N.S.S. Not Sold Separate, Screw-Brush Lead
(DELCO REMY #1967747)Not Sold Separate, Screw-Brush Lead
(DELCO REMY #1967747) -
22N.S.S. Not Sold Separate, Screw-Brush Lead
(DELCO REMY #443527)Not Sold Separate, Screw-Brush Lead
(DELCO REMY #443527) -
2333294 SUPPORT, GROUND AND INSULATED HOLDERSSUPPORT, GROUND AND INSULATED HOLDERS
-
2412-33258 WASHER, Leather, FIELD FRAME BRUSHWASHER, Leather, FIELD FRAME BRUSH
-
25N.S.S. Not Sold Separate, Dowel Pin-Field Frame (DELCO REMY #809593)Not Sold Separate, Dowel Pin-Field Frame (DELCO REMY #809593)
-
2633297 LEVER, SHIFTLEVER, SHIFT
-
27N.S.S. Not Sold Separate, Stud-Shift Lever (DELCO REMY #1814529)Not Sold Separate, Stud-Shift Lever (DELCO REMY #1814529)
-
2812-68615 WASHER, SHIFT LEVER STUDWASHER, SHIFT LEVER STUD
-
2911-26484 NUT, (.312-18), SHIFT LEVER STUDNUT, (.312-18), SHIFT LEVER STUD
-
3033317 PLUNGER, SHIFT LEVERPLUNGER, SHIFT LEVER
-
3117-79207 PIN, PLUNGER TO SHIFT LEVERPIN, PLUNGER TO SHIFT LEVER
-
32N.S.S. Not Sold Separate, Spring-Plunger Return (DELCO REMY #1958679)Not Sold Separate, Spring-Plunger Return (DELCO REMY #1958679)
-
33N.S.S. Not Sold Separate, Screw-Solenoid Switch (DELCO REMY #9413260)Not Sold Separate, Screw-Solenoid Switch (DELCO REMY #9413260)
-
3433261 SOLENOID SWITCH ASSEMBLYSOLENOID SWITCH ASSEMBLY
