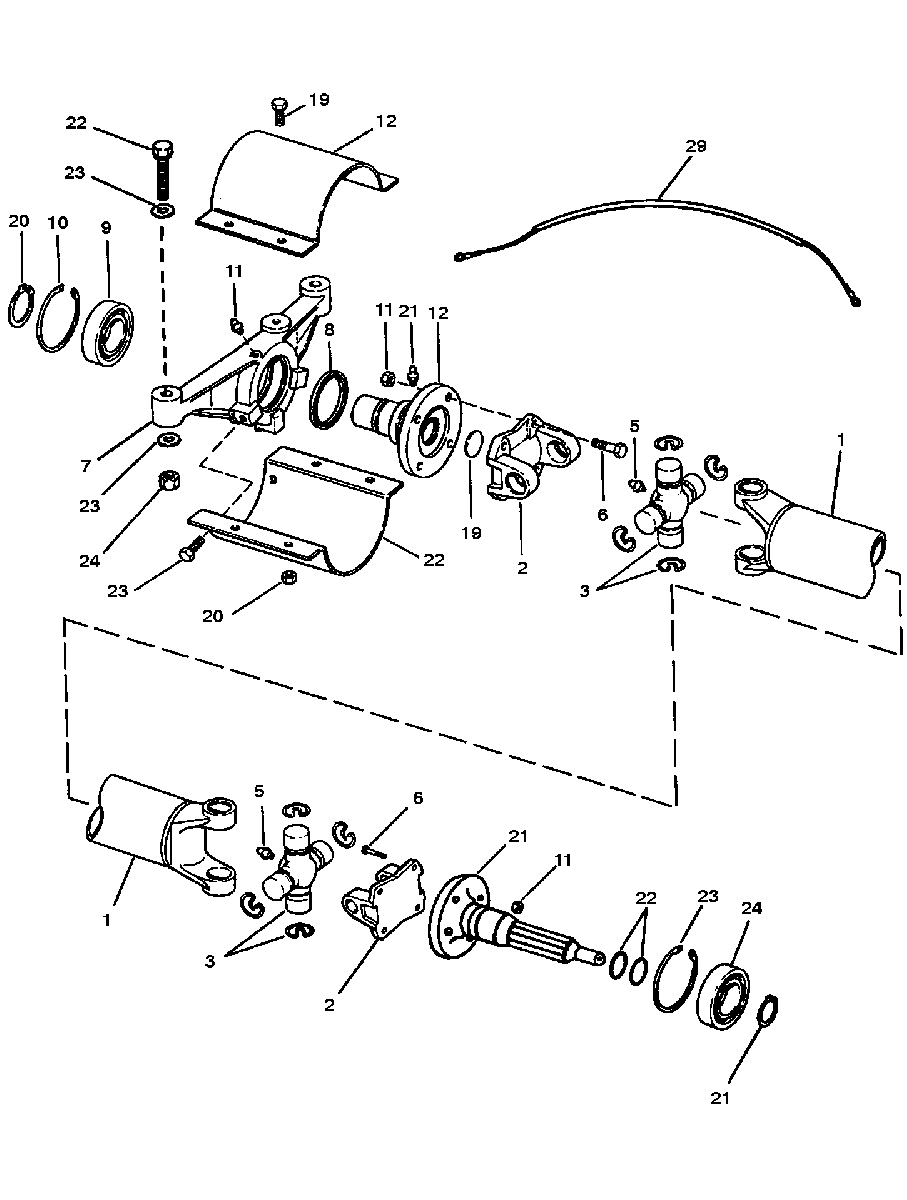

DRIVESHAFT EXTENSION COMPONENTS (BRAVO) для Mercruiser - 450 (GEN. V) GM 454 V-8 1995-1996 0F347100 THRU 0F347277
-
№АртикулНазвание
-
145-94819A3 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
252504T FLANGE-YokeFLANGE-Yoke
-
361221T UNIVERSAL JOINTUNIVERSAL JOINT
-
422-74036 FITTING-GreaseFITTING-Grease
-
510-805159 SCREW (.437-20 x 1.500)SCREW (.437-20 x 1.500)
-
611-34933 NUT (.437-20)NUT (.437-20)
-
7817416A4 SUPPORT ASSEMBLY-BearingSUPPORT ASSEMBLY-Bearing
-
826-93924 SEAL-OilSEAL-Oil
-
930-93944A2 BEARING-BallBEARING-Ball
-
1053-93914 RING-RetainingRING-Retaining
-
1122-74036 FITTING-GreaseFITTING-Grease
-
1293908A1 SHAFT ASSEMBLY-InputSHAFT ASSEMBLY-Input
-
1319-93921 PLUG-ExpansionPLUG-Expansion
-
1453-93915 RING-RetainingRING-Retaining
-
1522-74036 FITTING-GreaseFITTING-Grease
-
1693918A1 SHIELD ASSEMBLY-LowerSHIELD ASSEMBLY-Lower
-
1710-76926 SCREW (.375-16 x .875)SCREW (.375-16 x .875)
-
1893919A1 SHIELD ASSEMBLY-UpperSHIELD ASSEMBLY-Upper
-
1910-96995 SCREW (.375-16 x .875)SCREW (.375-16 x .875)
-
2011-82670912 NUT (.375-16)NUT (.375-16)
-
2193906A2 SHAFT ASSEMBLY-OutputSHAFT ASSEMBLY-Output
-
2225-25439 O RINGO RING
-
2353-94104 RING-RetainingRING-Retaining
-
2430-879194A03 BEARING-BallBEARING-Ball
-
2553-8M0141818 RING-RetainingRING-Retaining
-
2610-57053 SCREW (.500-20 x 4.500)SCREW (.500-20 x 4.500)
-
2712-42307 WASHER (Spherical)WASHER (Spherical)
-
2811-898832 NUT (.500-20)NUT (.500-20)
-
2984-816943A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
