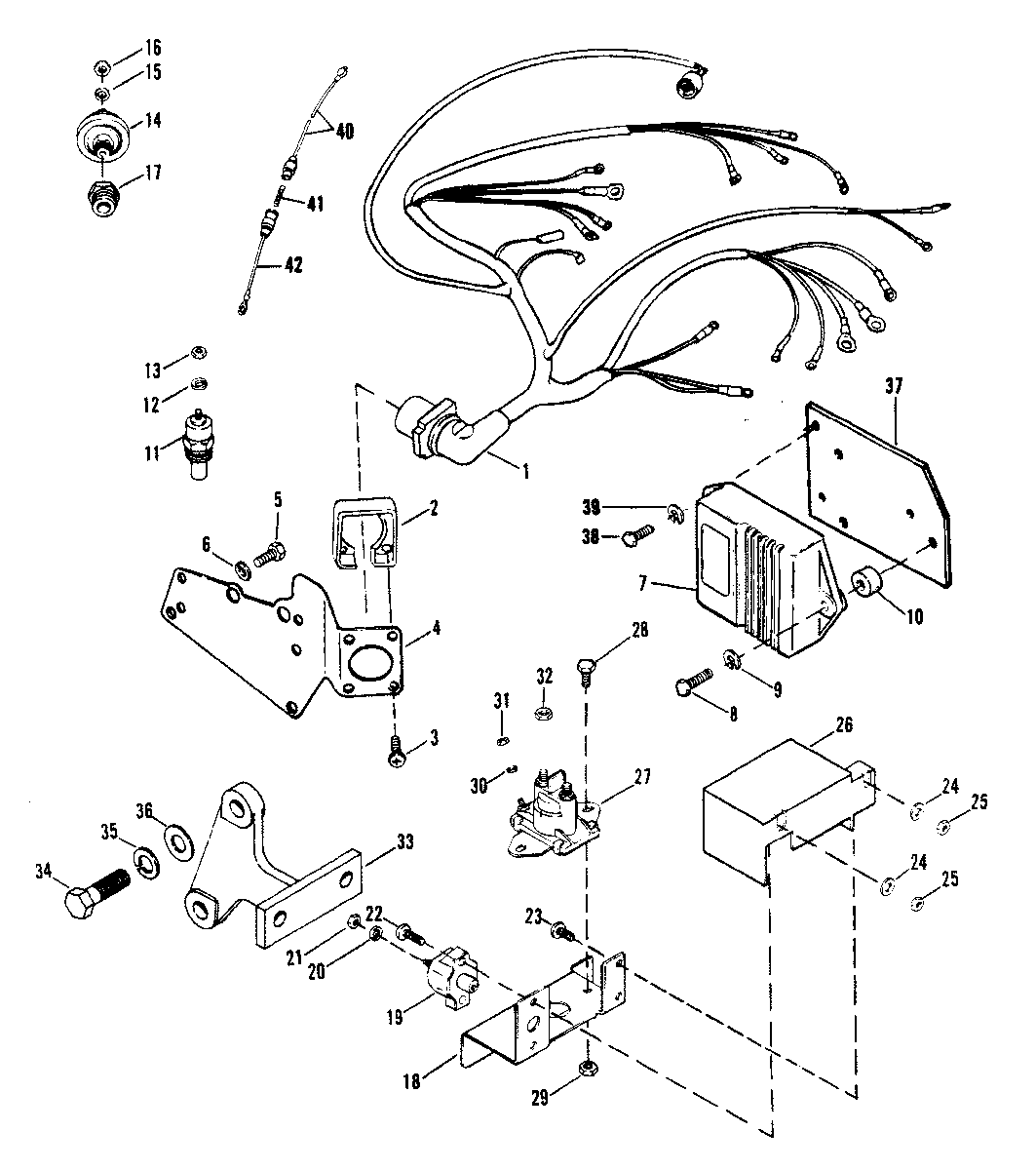

WIRING HARNESS, ELECTRICAL AND IGNITION для Mercruiser - 454 MAG. ALPHA GM 454 V-8 1986-1988 0A631894 THRU 0B785148
-
№АртикулНазвание
-
184-94111A11 WIRING HARNESSWIRING HARNESS
-
226079A2 PLATE, WIRING HARNESS
METALPLATE, WIRING HARNESS
METAL -
310-34696 SCREW, WIRING HARNESS PALTE (3/4")
METALSCREW, WIRING HARNESS PALTE (3/4")
METAL -
226079A2 PLATE, WIRING HARNESS
PLASTICPLATE, WIRING HARNESS
PLASTIC -
310-15001 SCREW, PLATE
PLASTICSCREW, PLATE
PLASTIC -
498493A2 BRACKET, MOUNTINGBRACKET, MOUNTING
-
510-49668 SCREW, MOUNTING BRACKETSCREW, MOUNTING BRACKET
-
613-26992 LOCKWASHER, MOUNTING BRACKET SCREW (5/8")LOCKWASHER, MOUNTING BRACKET SCREW (5/8")
-
715248A1 IGNITION AMPLIFIER (W/HARNESS 84-15275A1)IGNITION AMPLIFIER (W/HARNESS 84-15275A1)
-
810-76630 SCREW, IGNITION AMPLIFIERSCREW, IGNITION AMPLIFIER
-
913-26992 LOCKWASHER, IGNITION AMPLIFIER SCREWLOCKWASHER, IGNITION AMPLIFIER SCREW
-
1023-92152T SPACER, IGNITION AMPLIFIER SCREWSPACER, IGNITION AMPLIFIER SCREW
-
11806490T WATER TEMPERATURE SENDERWATER TEMPERATURE SENDER
-
1149734 WATER TEMPERATURE SENDER (DUAL)WATER TEMPERATURE SENDER (DUAL)
-
1213-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
-
1311-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
-
148M0068784 OIL PRESSURE SENDEROIL PRESSURE SENDER
-
1437293T OIL PRESSURE SENDER (DUAL)OIL PRESSURE SENDER (DUAL)
-
1513-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
-
1611-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)NUT, OIL PRESSURE SENDER TERMINAL (#10)
-
1722-64013 REDUCER, OIL PRESSURE SENDERREDUCER, OIL PRESSURE SENDER
-
1897163 BRACKET, MOUNTINGBRACKET, MOUNTING
-
1988-11178A01 CIRCUIT BREAKER (50 AMP)CIRCUIT BREAKER (50 AMP)
-
2013-26996 LOCKWASHER, CIRCUIT BREAKER TERMINALLOCKWASHER, CIRCUIT BREAKER TERMINAL
-
2111-68219 NUT, CIRCUIT BREAKER TERMINALNUT, CIRCUIT BREAKER TERMINAL
-
2210-45862 SCREW, CIRCUIT BREAKER (7/8")SCREW, CIRCUIT BREAKER (7/8")
-
2310-22028 SCREW, INSULATORSCREW, INSULATOR
-
2412-56681 WASHER, CIRCUIT BREAKER SCREWWASHER, CIRCUIT BREAKER SCREW
-
2511-46438 NUT, INSULATOR SCREWNUT, INSULATOR SCREW
-
2685-96819T INSULATOR, CIRCUIT BREAKERINSULATOR, CIRCUIT BREAKER
-
2789-96054T STARTER SOLENOIDSTARTER SOLENOID
-
2810-96138 SCREW, STARTER SOLENOID (5/8")SCREW, STARTER SOLENOID (5/8")
-
2911-20088 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
-
3013-26992 LOCKWASHER, STARTER SOLENOID TERMINALLOCKWASHER, STARTER SOLENOID TERMINAL
-
3111-26419 NUT, STARTER SOLENOID TERMINAL (10-32)NUT, STARTER SOLENOID TERMINAL (10-32)
-
3211-94330 NUT, STARTER SOLENOID TERMINAL (1/4-20)NUT, STARTER SOLENOID TERMINAL (1/4-20)
-
3396940T BRACKET, ADAPTORBRACKET, ADAPTOR
-
3410-37612 SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4")
3/8-16 THREADSCREW, ADAPTOR BRACKET TO ENGINE (1-1/4")
3/8-16 THREAD -
3513-35048 LOCKWASHER, ADAPTOR BRACKET SCREW
3/8-16 THREADLOCKWASHER, ADAPTOR BRACKET SCREW
3/8-16 THREAD -
3612-20553 WASHER, ADAPTOR BRACKET SCREW
3/8-16 THREADWASHER, ADAPTOR BRACKET SCREW
3/8-16 THREAD -
3410-47462 SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4")
7/16-14 THREADSCREW, ADAPTOR BRACKET TO ENGINE (1-1/4")
7/16-14 THREAD -
3513-32993 LOCKWASHER, ADAPTOR BRACKET SCREW
7/16-14 THREADLOCKWASHER, ADAPTOR BRACKET SCREW
7/16-14 THREAD -
3612-22248 WASHER, ADAPTOR BRACKET SCREW
7/16-14 THREADWASHER, ADAPTOR BRACKET SCREW
7/16-14 THREAD -
37125001 PLATE, IGNITION AMPLIFIER
OLD DESIGNPLATE, IGNITION AMPLIFIER
OLD DESIGN -
3810-76596 SCREW, AMPLIFIER PLATE
OLD DESIGNSCREW, AMPLIFIER PLATE
OLD DESIGN -
3913-26992 LOCKWASHER, AMPLIFIER PLATE SCREW
OLD DESIGNLOCKWASHER, AMPLIFIER PLATE SCREW
OLD DESIGN -
4084-95084A9 WIRE ASSEMBLY, FUSE (LONG - RED)WIRE ASSEMBLY, FUSE (LONG - RED)
-
4188-79091 FUSE (20 AMP)FUSE (20 AMP)
-
4284-95084A10 WIRE ASSEMBLY, FUSE (SHORT - RED)WIRE ASSEMBLY, FUSE (SHORT - RED)
-
-84-11149A5 ADAPTOR KITADAPTOR KIT
