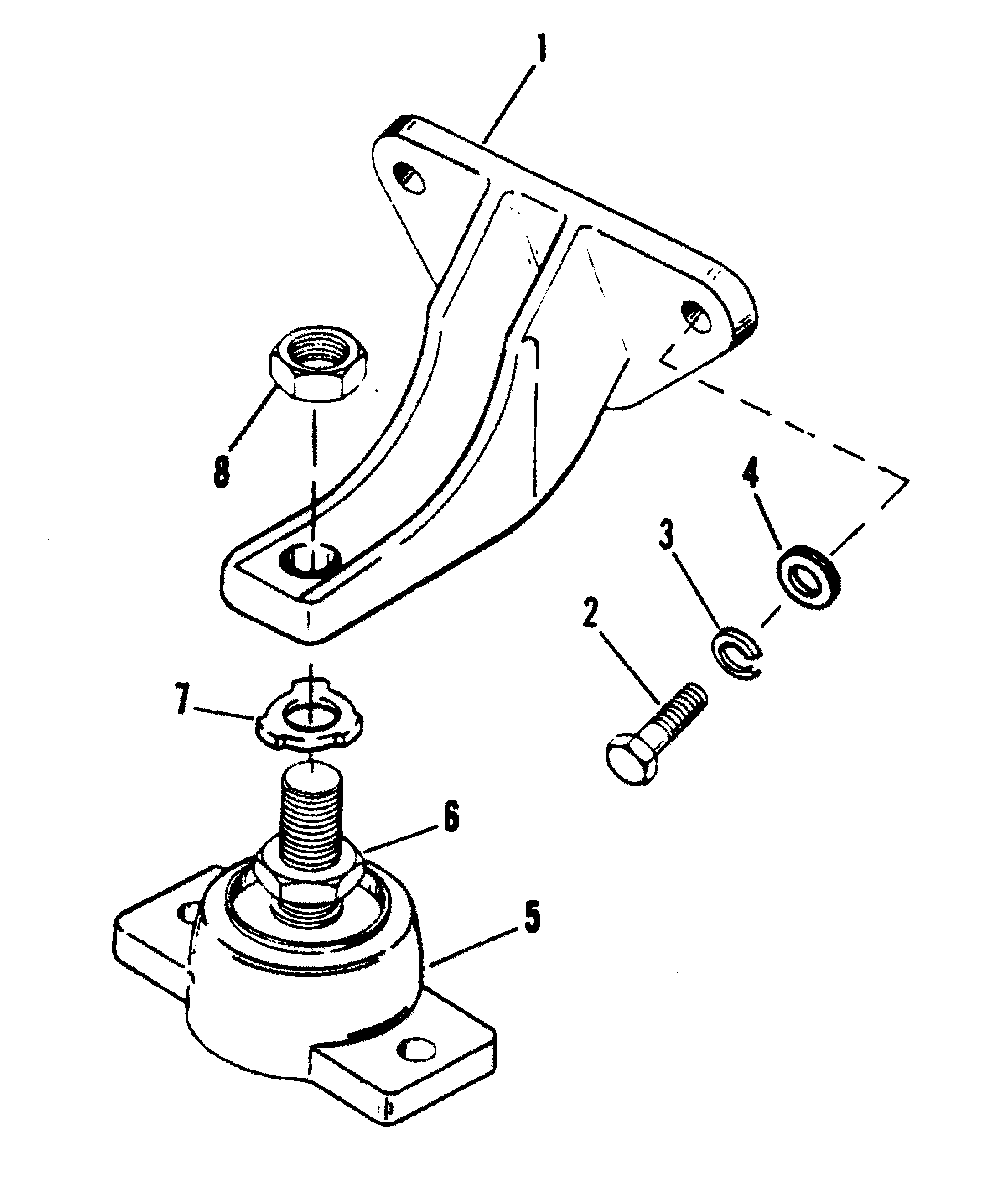

ENGINE MOUNTING для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1995-1996 0F305000 THRU 0F801699
-
№АртикулНазвание
-
179550A1 BRACKET (FRONT)BRACKET (FRONT)
-
210-68101 SCREW (1-3/8")
PORTSCREW (1-3/8")
PORT -
210-48424 SCREW (2")
PORTSCREW (2")
PORT -
313-35048 LOCKWASHER
PORTLOCKWASHER
PORT -
412-46132 WASHER
PORTWASHER
PORT -
210-68101 SCREW
STARBOARDSCREW
STARBOARD -
313-35048 LOCKWASHER
STARBOARDLOCKWASHER
STARBOARD -
5814263A1 BASE ASSEMBLYBASE ASSEMBLY
-
611-816331 NUTNUT
-
714-12657 TAB WASHERTAB WASHER
-
811-859126 NUTNUT
