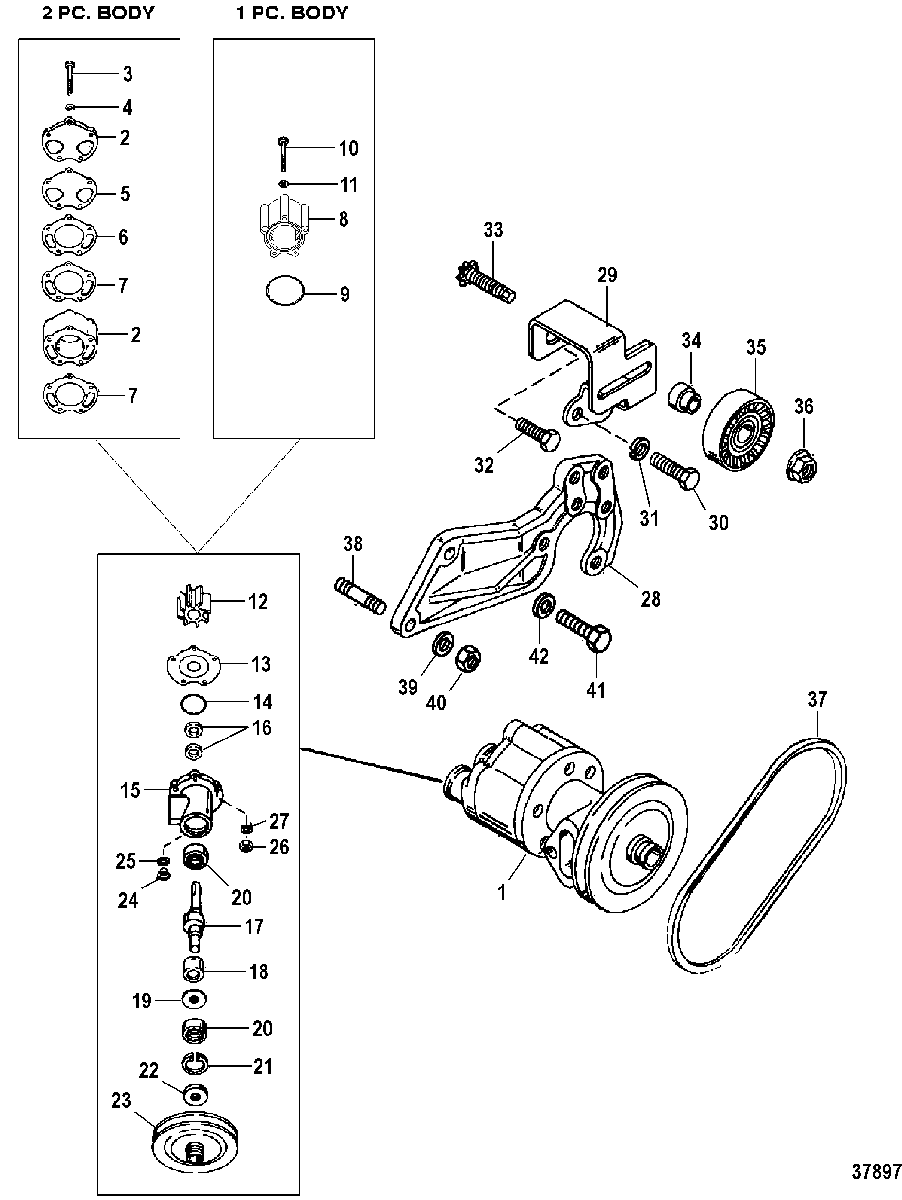

SEA WATER PUMP для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1996-1997 0F801700 THRU 0K999999
-
№АртикулНазвание
-
146-807151A8 PUMP ASSEMBLY, Sea WaterPUMP ASSEMBLY, Sea Water
-
246-807151A14 BODY AND COVER
TWO PIECE BODYBODY AND COVER
TWO PIECE BODY -
310-99347 SCREW, (.312-18 x 3.75)
TWO PIECE BODYSCREW, (.312-18 x 3.75)
TWO PIECE BODY -
412-20084 WASHER, (.328 x .562 x .062)
TWO PIECE BODYWASHER, (.328 x .562 x .062)
TWO PIECE BODY -
527-8052151 GASKET
TWO PIECE BODYGASKET
TWO PIECE BODY -
694916 WEAR PLATE (Outer)
TWO PIECE BODYWEAR PLATE (Outer)
TWO PIECE BODY -
727-94914 GASKET
TWO PIECE BODYGASKET
TWO PIECE BODY -
846-807151A14 BODY AND COVER, Water Pump
ONE PIECE BODYBODY AND COVER, Water Pump
ONE PIECE BODY -
925-33465 QUAD RING
ONE PIECE BODYQUAD RING
ONE PIECE BODY -
1010-807356 SCREW, (.312-18 x 2.680)
ONE PIECE BODYSCREW, (.312-18 x 2.680)
ONE PIECE BODY -
1010-74822 SCREW, (.312-18 x 3.500)
ONE PIECE BODYSCREW, (.312-18 x 3.500)
ONE PIECE BODY -
1112-814806 WASHER, (.344 x .688 x .065) Stainless Steel
ONE PIECE BODYWASHER, (.344 x .688 x .065) Stainless Steel
ONE PIECE BODY -
1247-59362T1 IMPELLERIMPELLER
-
1394576 WEAR PLATE (Inner)WEAR PLATE (Inner)
-
1425-94288 QUAD RINGQUAD RING
-
15818367A1 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
1626-90562 SEAL, (1.254 x .312), OilSEAL, (1.254 x .312), Oil
-
17818366A1 SHAFT KITSHAFT KIT
-
18818745A1 RING KIT, SlipRING KIT, Slip
-
1912-89664 WASHER, (.920 x 1.750 x .060)WASHER, (.920 x 1.750 x .060)
-
2030-72961 BEARING, BallBEARING, Ball
-
2153-23720 RING, RetainingRING, Retaining
-
2226-806930 SEAL, OilSEAL, Oil
-
23818365T PULLEYPULLEY
-
2410-79953Q04 SCREW KIT, (.375-16 x .250) , DrainSCREW KIT, (.375-16 x .250) , Drain
-
2512-191833 WASHER, FiberWASHER, Fiber
-
2611-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
2713-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
28818368T1 BRACKETBRACKET
-
29818379T BRACKET, IdlerBRACKET, Idler
-
3010-76926 SCREW, (.375-16 x .875)SCREW, (.375-16 x .875)
-
3113-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3210-17965 SCREW, (.437-14 x .70)SCREW, (.437-14 x .70)
-
3343-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
34865193 BUSHINGBUSHING
-
358M6500024 PULLEYPULLEY
-
3611-859135 NUT, (.437-20)NUT, (.437-20)
-
3757-69143Q V BELTV BELT
-
3816-806591 STUD, (7/16-14)STUD, (7/16-14)
-
3913-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
4011-22024 NUT, (.437-14)NUT, (.437-14)
-
4110-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
4213-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
