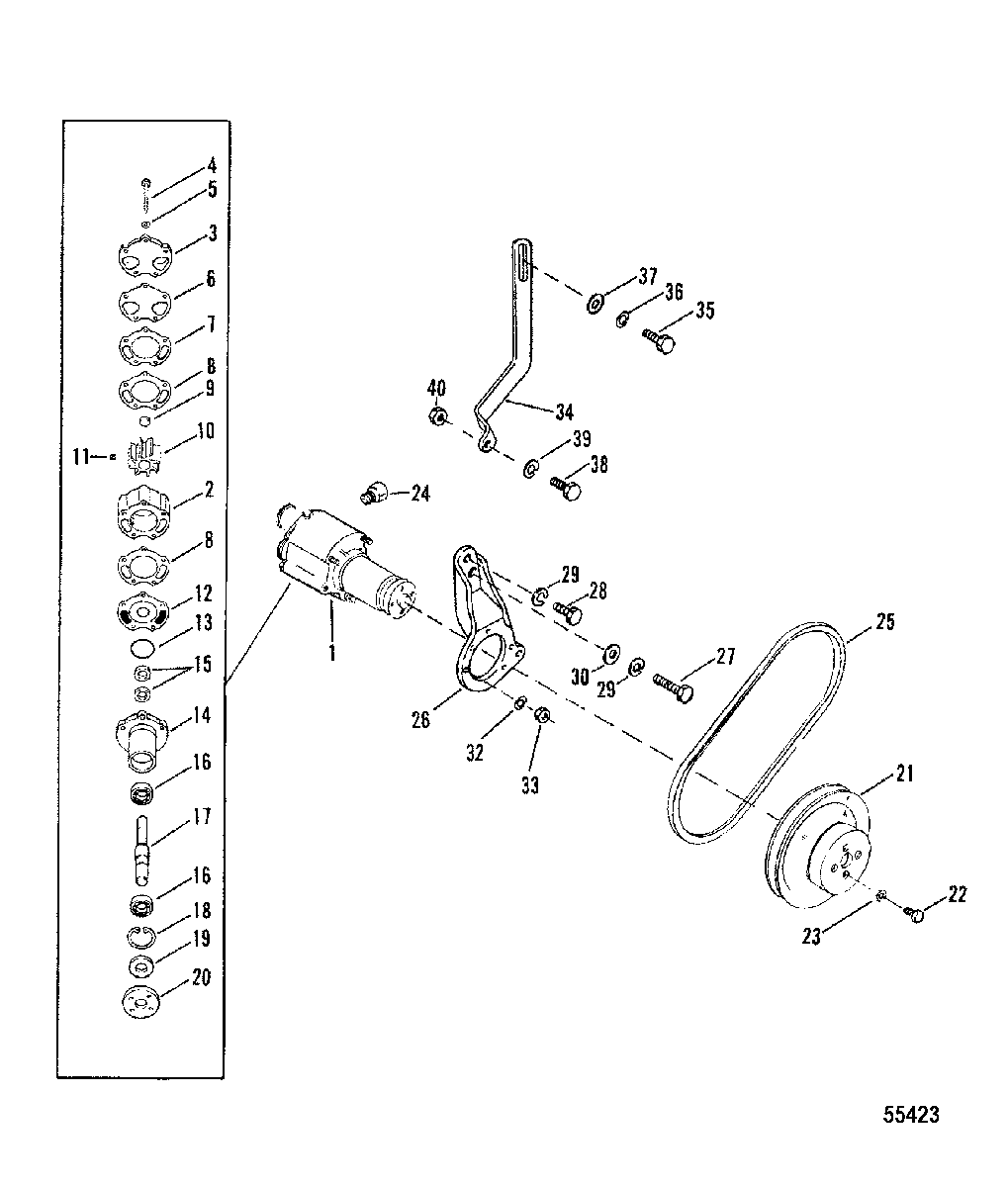

SEA WATER PUMP для Mercruiser - 454 MAG. BRAVO GM 454 V-8 1988-1992 0B721206 THRU 0D805068
-
№АртикулНазвание
-
146-807151A12 PUMP ASSEMBLY, Sea Water - CompletePUMP ASSEMBLY, Sea Water - Complete
-
246-72774A40 BODY ASSEMBLY, Sea Water - Complete, WATER PUMPBODY ASSEMBLY, Sea Water - Complete, WATER PUMP
-
387631A4 COVER, WATER PUMPCOVER, WATER PUMP
-
410-73275 SCREW, (.312-18 x 2.88), WATER PUMP (3")SCREW, (.312-18 x 2.88), WATER PUMP (3")
-
410-99347 SCREW, (.312-18 x 3.75), WATER PUMP (3-3/4")SCREW, (.312-18 x 3.75), WATER PUMP (3-3/4")
-
512-20084 WASHER, (.328 x .562 x .062), COVER SCREWWASHER, (.328 x .562 x .062), COVER SCREW
-
627-8052151 GASKET, COVER TO OUTER WEAR PLATEGASKET, COVER TO OUTER WEAR PLATE
-
794916 WEAR PLATE, OUTERWEAR PLATE, OUTER
-
827-94914 GASKET, BODY TO WEAR PLATEGASKET, BODY TO WEAR PLATE
-
919-59504 PLUG, IMPELLERPLUG, IMPELLER
-
1047-59362T1 IMPELLER (USE W/O KEY)IMPELLER (USE W/O KEY)
-
1128-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
1294576 WEAR PLATE, INNERWEAR PLATE, INNER
-
1325-94288 QUAD RING, PUMP HOUSINGQUAD RING, PUMP HOUSING
-
1446-94913A2 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
1526-90562 SEAL, (1.254 x .312), WATER PUMP SHAFTSEAL, (1.254 x .312), WATER PUMP SHAFT
-
1630-72961 BEARING, Ball, WATER PUMP SHAFTBEARING, Ball, WATER PUMP SHAFT
-
1759501A1 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
1853-23720 RING, Retaining, BALL BEARING RETAININGRING, Retaining, BALL BEARING RETAINING
-
1926-72785 SEAL, WATER PUMP SHAFTSEAL, WATER PUMP SHAFT
-
2047530 HUB, WATER PUMP PULLEYHUB, WATER PUMP PULLEY
-
2152822T PULLEY, WATER PUMP (CAST)PULLEY, WATER PUMP (CAST)
-
2210-47277 SCREW, (.312-24 x .750), PULLEY (3/4")SCREW, (.312-24 x .750), PULLEY (3/4")
-
2313-39107 LOCKWASHER, (.312-24), PULLEY SCREWLOCKWASHER, (.312-24), PULLEY SCREW
-
2422-328022 PLUG, Pipe (.125-27), PIPE (FOR WATER PUMP BODY)PLUG, Pipe (.125-27), PIPE (FOR WATER PUMP BODY)
-
2557-13457Q BELT, WATER PUMP (30")BELT, WATER PUMP (30")
-
2615295T BRACKET, WATER PUMP (STAMPED)BRACKET, WATER PUMP (STAMPED)
-
2710-47461 SCREW, (.437-14 x 1.00), WATER PUMP BRACKET (1")SCREW, (.437-14 x 1.00), WATER PUMP BRACKET (1")
-
2810-17965 SCREW, (.437-14 x .70), WATER PUMP BRACKETSCREW, (.437-14 x .70), WATER PUMP BRACKET
-
2913-32993 LOCKWASHER, (.437), BRACKET SCREWLOCKWASHER, (.437), BRACKET SCREW
-
3012-27025 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
3213-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
3311-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
3415751T BRACE, WATER PUMPBRACE, WATER PUMP
-
3510-47461 SCREW, (.437-14 x 1.00), BRACE TO ENGINE (1")SCREW, (.437-14 x 1.00), BRACE TO ENGINE (1")
-
3613-32993 LOCKWASHER, (.437), BRACE SCREWLOCKWASHER, (.437), BRACE SCREW
-
3712-74758 WASHER, BRACE SCREWWASHER, BRACE SCREW
-
3810-35786 SCREW, (.375-24 x 1.00), WATER PUMP BRACE (1")SCREW, (.375-24 x 1.00), WATER PUMP BRACE (1")
-
3913-35048 LOCKWASHER, (.375), BRACE SCREWLOCKWASHER, (.375), BRACE SCREW
-
4011-46335 NUT, (.375-24), BRACE SCREWNUT, (.375-24), BRACE SCREW
