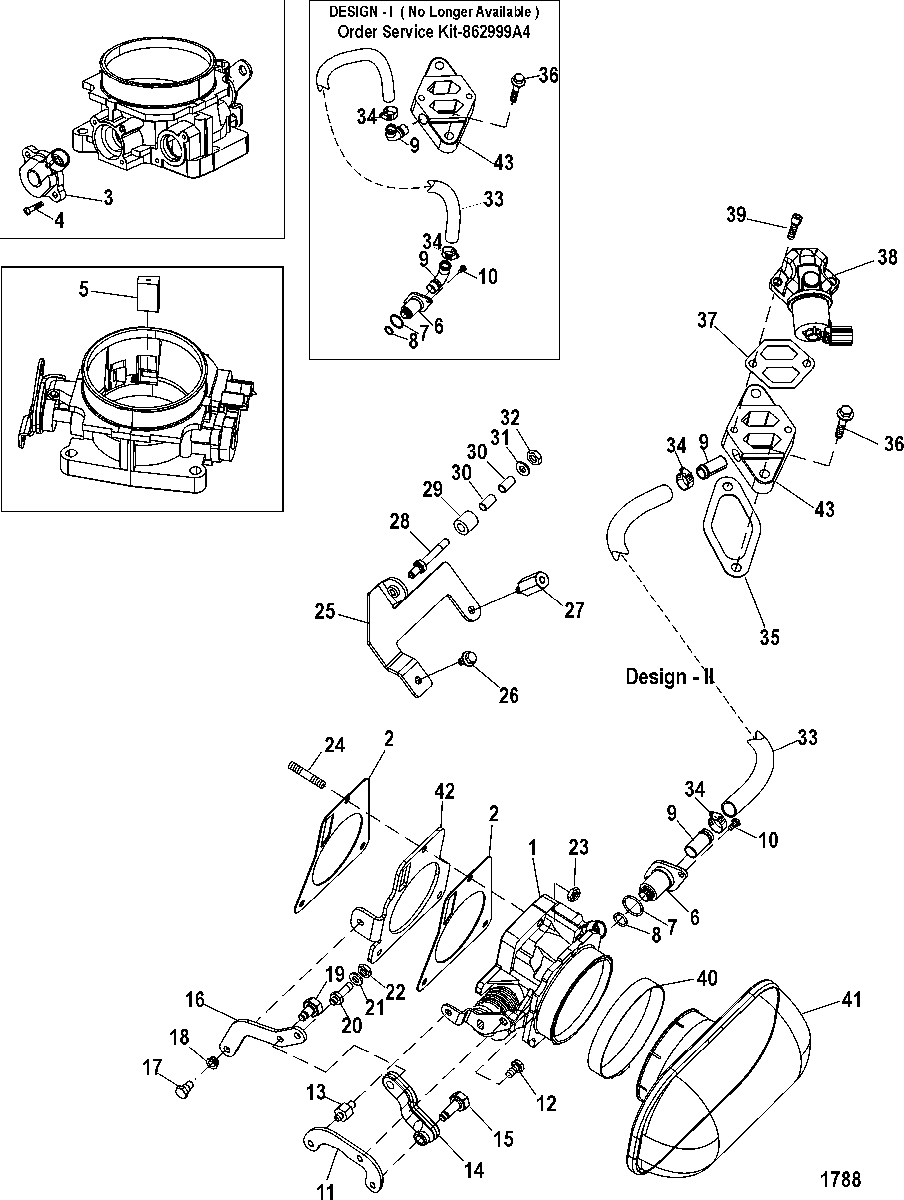

THROTTLE BODY( Mechanical Throttle-Shift ) для Mercruiser - 496 MAG (Base Model) 0M025000 THRU 0M687082

№

Артикул

Название
1

866576A04 THROTTLE BODY ASSEMBLY
(Base)

THROTTLE BODY ASSEMBLY
(Base)

98 350 ₽
1

866577A04 THROTTLE BODY ASSEMBLY
(H.O.)

THROTTLE BODY ASSEMBLY
(H.O.)

113 920 ₽
2

27-863215 GASKET, Throttle Body

GASKET, Throttle Body

730 ₽
3

8M0097035 SENSOR, TPS (Includes O-Ring)

SENSOR, TPS (Includes O-Ring)

10 090 ₽
4

10-853680 SCREW KIT

SCREW KIT

4 270 ₽
5

35-863829 MUFFLER, Intake Air Control
(Not used on all applications)

MUFFLER, Intake Air Control
(Not used on all applications)

190 ₽
6

NLA No Longer Available, PLUG KIT-Adaptor, Intake Air Control
(Design I )(Order Service Kit 862999A4)

No Longer Available, PLUG KIT-Adaptor, Intake Air Control
(Design I )(Order Service Kit 862999A4)

0 ₽
6

862999A5 PLUG KIT, Adaptor,Intake Air Control
( Design II )

PLUG KIT, Adaptor,Intake Air Control
( Design II )

3 350 ₽
7

25-808547 O-RING

O-RING

130 ₽
8

25-863006 O-RING

O-RING

180 ₽
9

NLA No Longer Available, FITTING-Vent (90 deg.)
(Design I )(Order Service Kit 862999A4 )

No Longer Available, FITTING-Vent (90 deg.)
(Design I )(Order Service Kit 862999A4 )

0 ₽
9

22-863427 FITTING, Air Valve
( Design II )

FITTING, Air Valve
( Design II )

590 ₽
10

10-805400 SCREW, (#8-32 x .500) Stainless Steel

SCREW, (#8-32 x .500) Stainless Steel

130 ₽
11

863135 LEVER, Throttle

LEVER, Throttle

2 200 ₽
12

10-64014 SCREW, (.250-28 x .500)

SCREW, (.250-28 x .500)

170 ₽
13

16-863345 STUD, Special

STUD, Special

1 060 ₽
14

863214 LINK

LINK

920 ₽
15

805533 SCREW, (M8 x 35)

SCREW, (M8 x 35)

1 210 ₽
16

8M2001692 ARM, Cable

ARM, Cable

2 200 ₽
17

10-863380 SCREW, Special

SCREW, Special

4 980 ₽
18

23-97896 BUSHING, Flanged

BUSHING, Flanged

270 ₽
19

805398 PIN, Primary Linkage

PIN, Primary Linkage

1 410 ₽
20

16-805526 STUD, (.250-28 x 1.540)

STUD, (.250-28 x 1.540)

490 ₽
21

12-20533 WASHER

WASHER

120 ₽
22

11-8267139 NUT, (.250-28)

NUT, (.250-28)

150 ₽
23

11-802751 NUT

NUT

600 ₽
24

16-8M0077391 STUD

STUD

4 570 ₽
25

863153 BRACKET, Throttle Cable Attaching

BRACKET, Throttle Cable Attaching

2 780 ₽
26

10-4006731 SCREW, (M6 x 16)

SCREW, (M6 x 16)

170 ₽
27

23-863734 SPACER

SPACER

12 310 ₽
28

16-97477A3 STUD KIT

STUD KIT

3 310 ₽
29

NSS NOT SOLD SEPARATE, SPACER-Special

NOT SOLD SEPARATE, SPACER-Special

0 ₽
30

23-31866 SPACER, (.256 x .313 x .625)

SPACER, (.256 x .313 x .625)

360 ₽
31

12-20533 WASHER

WASHER

120 ₽
32

11-8267139 NUT, (.250-28)

NUT, (.250-28)

150 ₽
33

NLA No Longer Available, HOSE-Air Bypass
(Design I)(Order Service Kit 862999A4)

No Longer Available, HOSE-Air Bypass
(Design I)(Order Service Kit 862999A4)

0 ₽
33

32-864262 HOSE, Air Bypass
( Design II )

HOSE, Air Bypass
( Design II )

5 800 ₽
34

54-815504206 CLAMP, Worm Gear, Hose

CLAMP, Worm Gear, Hose

500 ₽
NS

19-8M0074364 COVER, Hose Clamp End

COVER, Hose Clamp End

30 ₽
35

27-863285 GASKET, Air Valve

GASKET, Air Valve

1 250 ₽
36

10-40011151 SCREW, (M8 x 35) Stainless Steel

SCREW, (M8 x 35) Stainless Steel

520 ₽
37

27-8M0119616 GASKET, Idle Air Valve

GASKET, Idle Air Valve

200 ₽
38

862998 VALVE, Idle Air, Idle Air

VALVE, Idle Air, Idle Air

20 840 ₽
39

10-4008820 SCREW, (M6 x 20)

SCREW, (M6 x 20)

190 ₽
40

54-863393 CLAMP, Flame Arrestor

CLAMP, Flame Arrestor

3 190 ₽
41

8M0113516 FLAME ARRESTOR

FLAME ARRESTOR

24 380 ₽
42

862996 BRACKET, Throttle Linkage

BRACKET, Throttle Linkage

5 250 ₽
43

NLA No Longer Available, MOUNTING PLATE
(Design I)( Order Service Kit 862999A4 )

No Longer Available, MOUNTING PLATE
(Design I)( Order Service Kit 862999A4 )

0 ₽
43

862997A1 MOUNTING PLATE, Intake Air Control
(Design II)

MOUNTING PLATE, Intake Air Control
(Design II)

6 630 ₽
