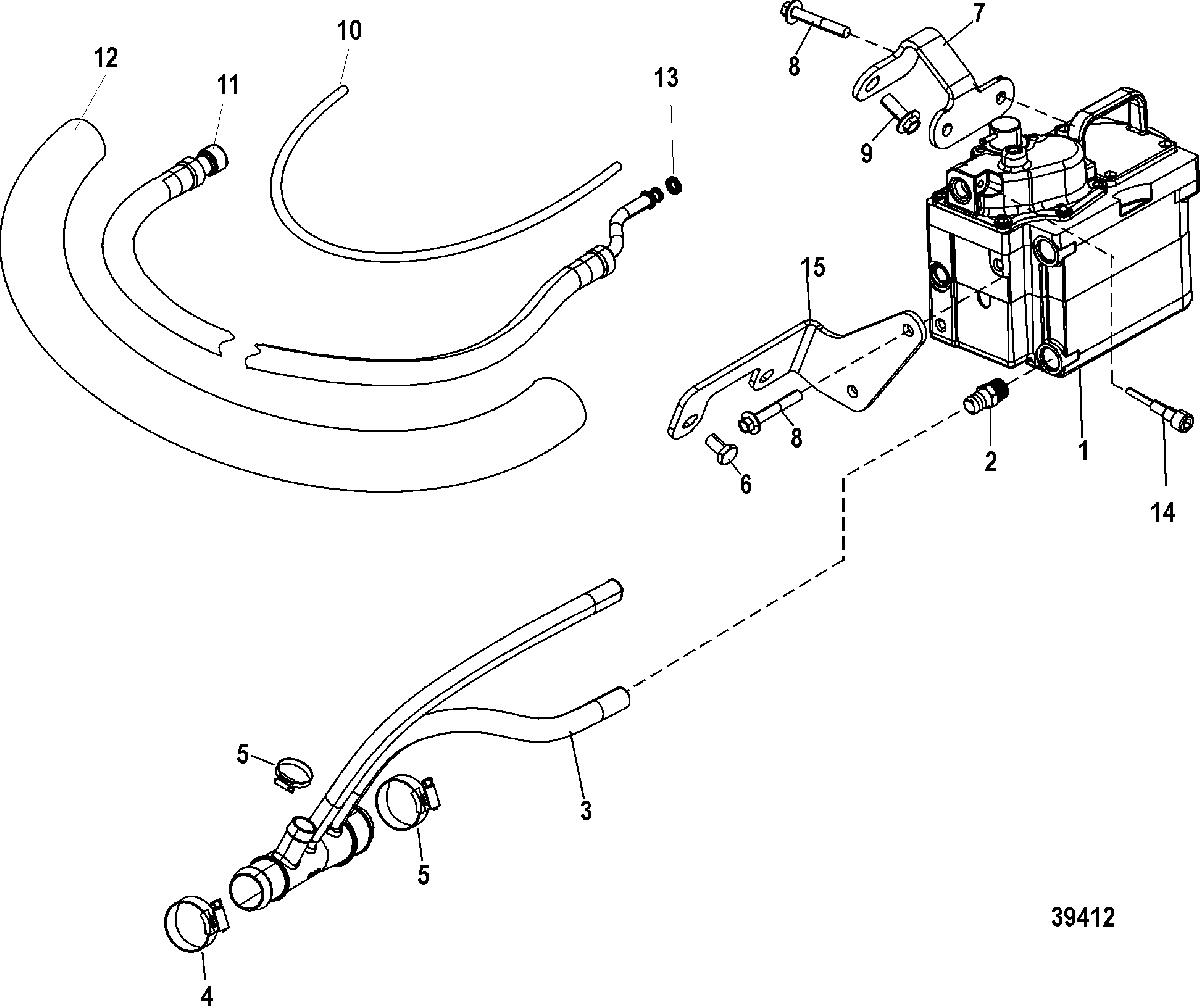

Cool Fuel System, SN 1A349420 & Above для Mercruiser - 496 MAG (Base Model) 1A066166 THRU 1A350678
-
№АртикулНазвание
-
18M0047215 MODULE KIT, Fuel Pump, CompleteMODULE KIT, Fuel Pump, Complete
-
222-8M2010476 FITTING, (3/8-18)FITTING, (3/8-18)
-
322-865208T02 HOSE ASSEMBLY, 3 Bib Orifice MeterHOSE ASSEMBLY, 3 Bib Orifice Meter
-
454-815504224 CLAMP, (32 - 50 mm)CLAMP, (32 - 50 mm)
-
554-815504206 CLAMP, Worm GearCLAMP, Worm Gear
-
610-40001195 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
7864597T BRACKETBRACKET
-
810-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
910-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
1032-8M0063567 HOSE, (58.00 Inches Bulk)HOSE, (58.00 Inches Bulk)
-
1132-8M2005176 LINE, Fuel, Fuel Module to Fuel RailLINE, Fuel, Fuel Module to Fuel Rail
-
12NSS NOT SOLD SEPARATE, Insulator SleeveNOT SOLD SEPARATE, Insulator Sleeve
-
1326-863151 SEAL, Quad RingSEAL, Quad Ring
-
1410-866114 SCREW, (.250-28) SpecialSCREW, (.250-28) Special
-
15864468T BRACKETBRACKET
