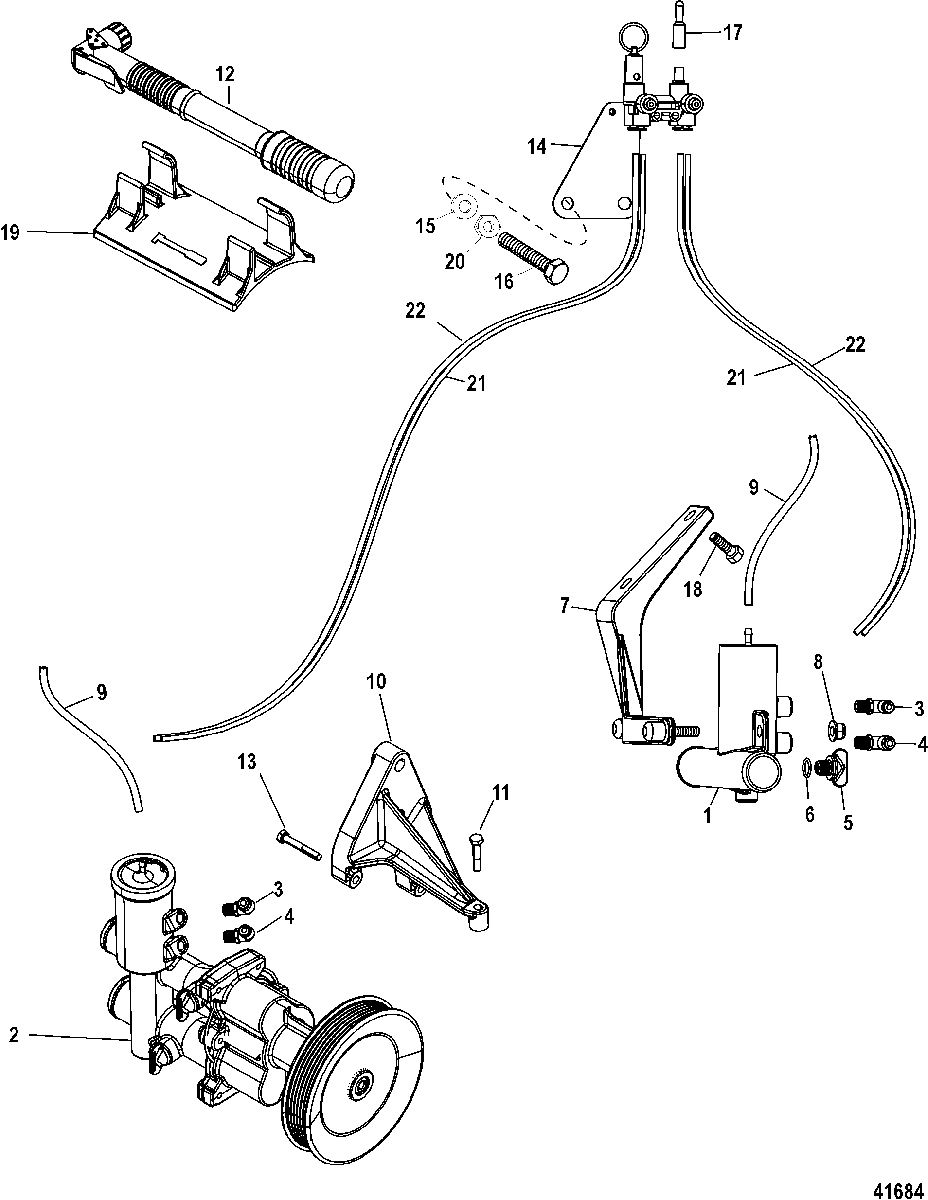

Water Drain System для Mercruiser - 496 MAG (H.O. Model) 0W060000 THRU 0W309999

№

Артикул

Название
1

863717A2 ACTUATOR ASSEMBLY, Water Drain
(Port)

ACTUATOR ASSEMBLY, Water Drain
(Port)

40 050 ₽
2

46-8M0137218 PUMP ASSEMBLY
(See "Seawater Pump" for Component Break down)

PUMP ASSEMBLY
(See "Seawater Pump" for Component Break down)

0 ₽
3

22-8M0082321 FITTING, Gray (90 Degree)

FITTING, Gray (90 Degree)

650 ₽
4

22-8M0082322 FITTING, Orange (90 Degree)

FITTING, Orange (90 Degree)

1 410 ₽
5

22-8M0119211 PLUG KIT, (.500-13) Royal Blue

PLUG KIT, (.500-13) Royal Blue

820 ₽
6

25-32509 O-RING, (.489 x .070)

O-RING, (.489 x .070)

150 ₽
7

863863T BRACKET, Actuator Mounting
(Port)

BRACKET, Actuator Mounting
(Port)

4 750 ₽
8

11-826365 NUT, (M8), Nylock

NUT, (M8), Nylock

450 ₽
9

32-8630561 HOSE, (42.00 Inches Bulk) Black, Air

HOSE, (42.00 Inches Bulk) Black, Air

810 ₽
10

863859T BRACKET

BRACKET

12 290 ₽
11

10-4000331 SCREW, (M6 x 30)

SCREW, (M6 x 30)

230 ₽
12

863057 PUMP, Air

PUMP, Air

2 240 ₽
13

10-4000333 SCREW, (M6 x 40)

SCREW, (M6 x 40)

290 ₽
14

862969A2 MANIFOLD ASSEMBLY, Air

MANIFOLD ASSEMBLY, Air

20 110 ₽
15

12-4002314 WASHER

WASHER

170 ₽
16

10-864887 SCREW, (M5)

SCREW, (M5)

140 ₽
17

19-883503 CAP, Service Point

CAP, Service Point

130 ₽
18

10-4000374 SCREW, (M10 x 16)

SCREW, (M10 x 16)

460 ₽
19

863059 BRACKET, Air Pump

BRACKET, Air Pump

3 570 ₽
20

11-826292 NUT, (M10) Brass/Nickel Plated

NUT, (M10) Brass/Nickel Plated

230 ₽
21

32-8M0077561 HOSE, (40.00 Inches Bulk) Green
(Cut Starboard to 25.5 in.)(Cut Port Hose To 23 In.)

HOSE, (40.00 Inches Bulk) Green
(Cut Starboard to 25.5 in.)(Cut Port Hose To 23 In.)

440 ₽
22

32-8M0062601 HOSE, (40.00 Inches Bulk) Grey
(Starboard 40 in.)(Cut Port Hose To 23 In.)

HOSE, (40.00 Inches Bulk) Grey
(Starboard 40 in.)(Cut Port Hose To 23 In.)

2 530 ₽
