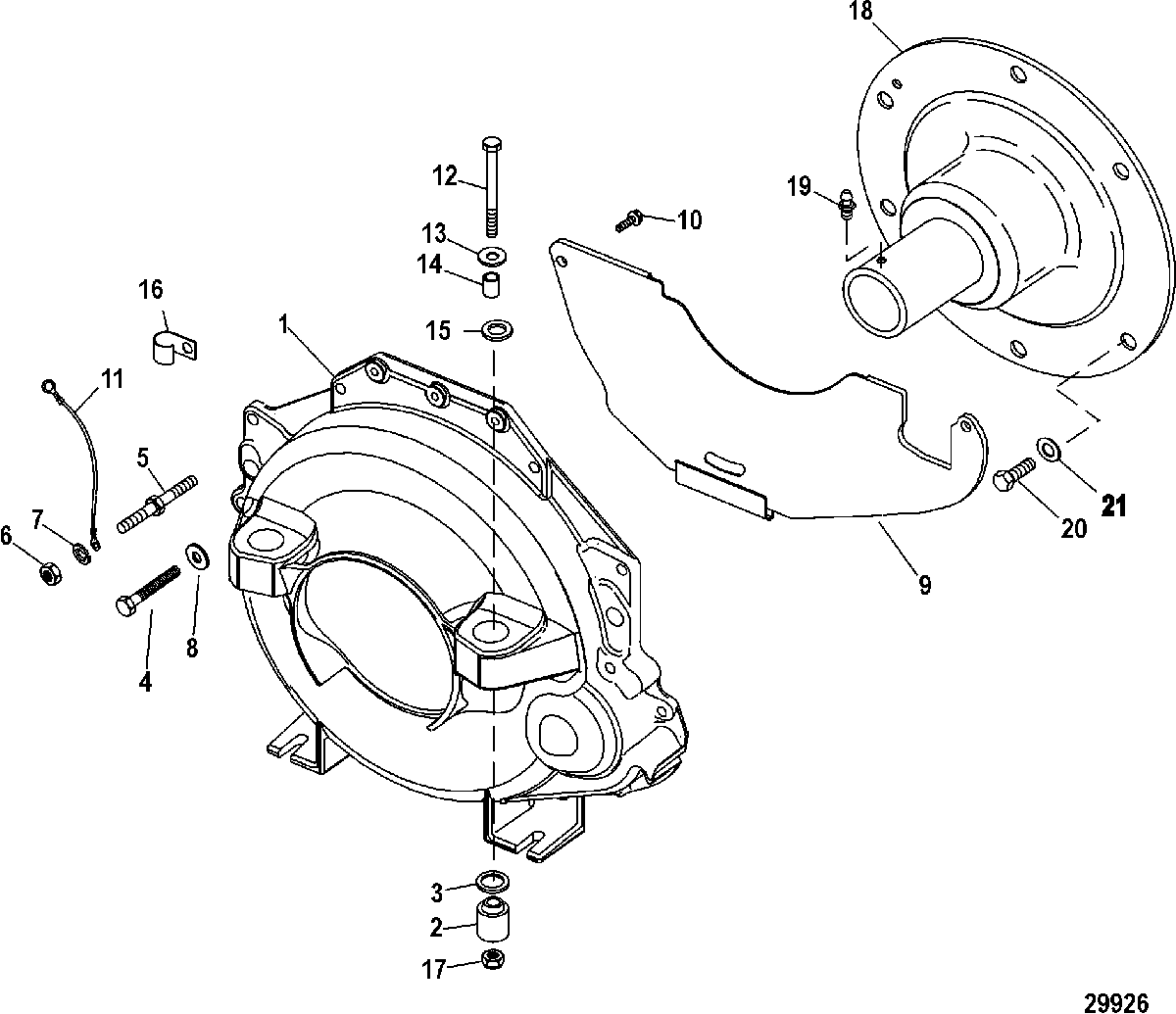

Flywheel Housing для Mercruiser - 496 MAG (H.O. Model) 1A066166 THRU 1A350678
-
№АртикулНазвание
-
1865657A04 HOUSING ASSEMBLY, FlywheelHOUSING ASSEMBLY, Flywheel
-
2865330A02 MOUNT KIT, RubberMOUNT KIT, Rubber
-
323-99322 SPACERSPACER
-
410-40001197 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
410-40001203 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
410-1993325 SCREW, (M10 x 25 MM)
(SEACORE)SCREW, (M10 x 25 MM)
(SEACORE) -
516-861577 STUD, Double Ended Metric (M10), GroundingSTUD, Double Ended Metric (M10), Grounding
-
516-863376 STUD, Stainless (M10 x M10)
(SEACORE)STUD, Stainless (M10 x M10)
(SEACORE) -
611-40125100 NUT, (M10)NUT, (M10)
-
611-4013710 NUT, (M10)
(SEACORE)NUT, (M10)
(SEACORE) -
713-400248 LOCKWASHER, (M10)LOCKWASHER, (M10)
-
812-34567 WASHERWASHER
-
9807260A2 COVER KIT, FlywheelCOVER KIT, Flywheel
-
NS11-807296 NUT, (.250-20)NUT, (.250-20)
-
1010-76596 SCREW, (.250-20 x 1.250)SCREW, (.250-20 x 1.250)
-
1010-86885 SCREW, (.250-20 x 1.500) Stainless Steel
(SEACORE)SCREW, (.250-20 x 1.500) Stainless Steel
(SEACORE) -
1184-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black, GroundingCABLE ASSEMBLY, Ground (13.00 Inches) Black, Grounding
-
1210-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
-
1312-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
1423-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
1512-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
1654-78945 J CLAMP, Harness SupportJ CLAMP, Harness Support
-
1711-863332 NUT, (.500-20) AluminumNUT, (.500-20) Aluminum
-
188M0098796 COUPLER ASSEMBLY, Engine - Long Steel HubCOUPLER ASSEMBLY, Engine - Long Steel Hub
-
1922-74036 FITTING, GreaseFITTING, Grease
-
2010-40001195 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
2112-25909 WASHER, (.406 x .812 x .065)WASHER, (.406 x .812 x .065)
