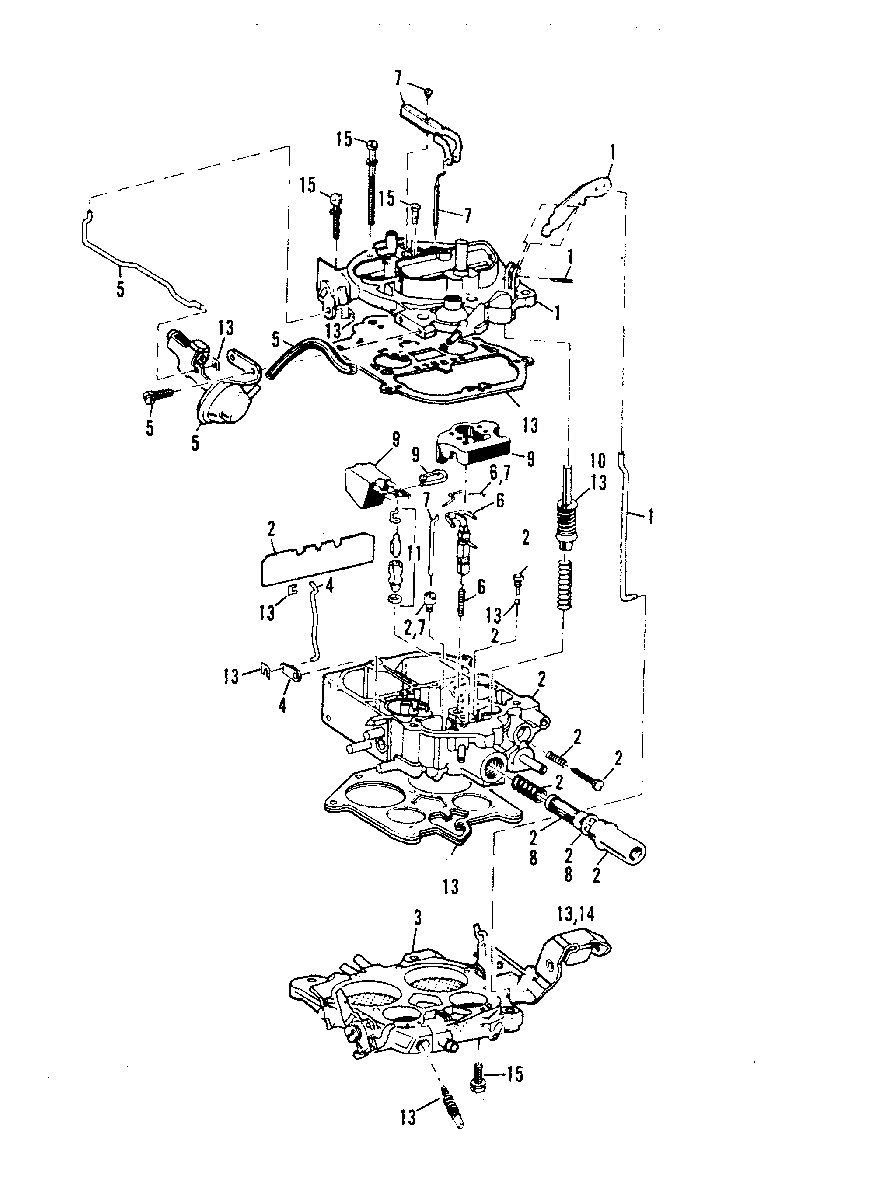

CARBURETOR для Mercruiser - 502 MAG. BRAVO GM 502 V-8 1990-1992 0C878221 THRU 0D824588
-
№АртикулНазвание
-
-1347-804627R02 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
11397-817477 AIR HORN KITAIR HORN KIT
-
21397-817478 FLOAT BOWL KITFLOAT BOWL KIT
-
31397-817479 THROTTLE BODY KITTHROTTLE BODY KIT
-
41397-8541 CHOKE LINK AND LEVER KITCHOKE LINK AND LEVER KIT
-
51397-8582 PRIMARY VACUUM KITPRIMARY VACUUM KIT
-
61397-8543T POWER PISTON KITPOWER PISTON KIT
-
71397-817480 METERING JET AND ROD KITMETERING JET AND ROD KIT
-
81397-8767Q FUEL FILTER KITFUEL FILTER KIT
-
9398-2576 FLOAT KITFLOAT KIT
-
10823426A1 PUMP KITPUMP KIT
-
111347-9871 NEEDLE AND SEAT KITNEEDLE AND SEAT KIT
-
13823426A1 CARBURETOR AND GASKET KIT
- SEE NOTECARBURETOR AND GASKET KIT
- SEE NOTE -
141397-8327 GASKET
- SEE NOTEGASKET
- SEE NOTE -
151397-8557 SCREW KIT, AIR HORN/THROTTLE BODYSCREW KIT, AIR HORN/THROTTLE BODY
