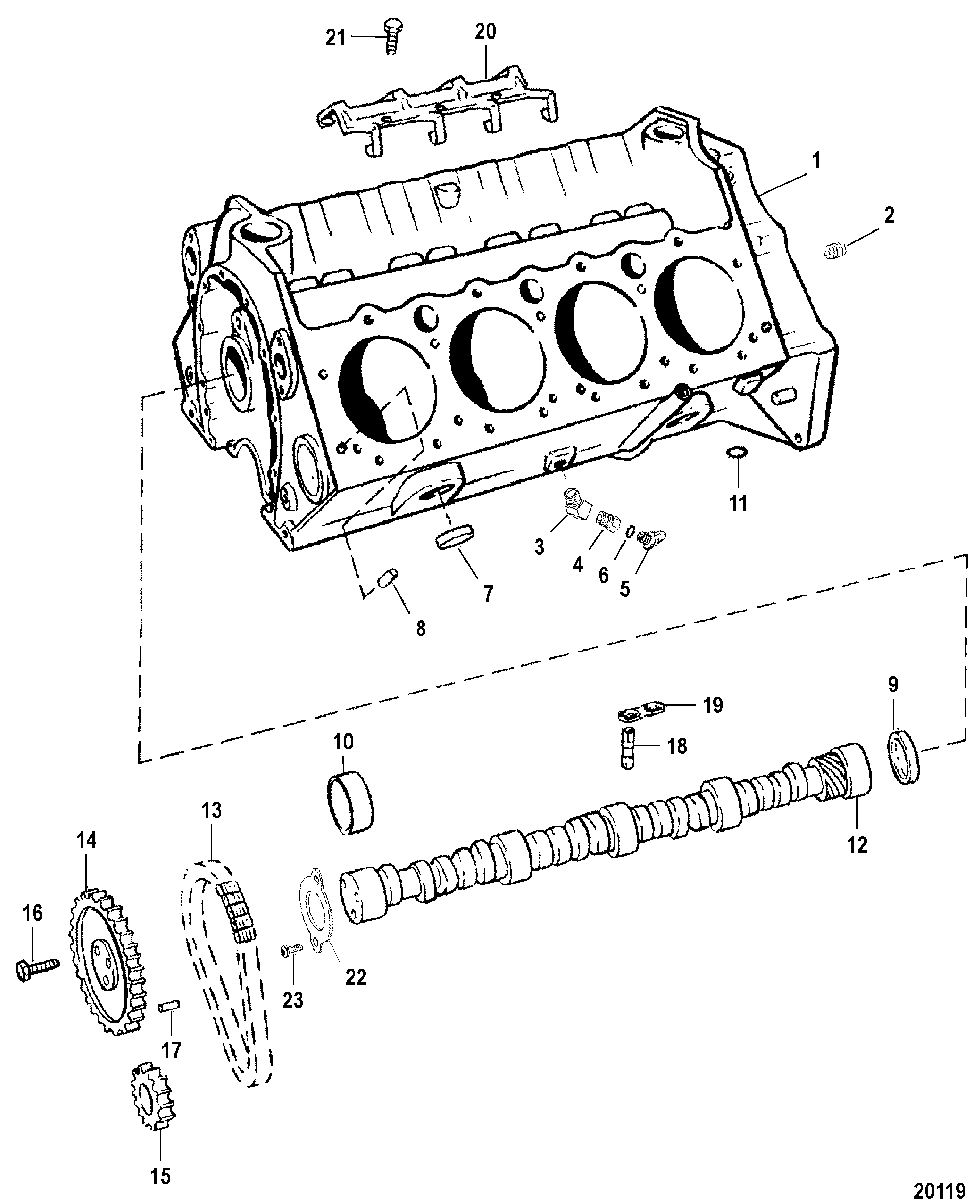

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 502 MAG MPI BRAVO (GEN VI) GM 502 V-8 1998 0L017000 THRU 0L085432
-
№АртикулНазвание
-
1NSS NOT SOLD SEPARATE, CYLINDER BLOCK
(454) (ORDER LONG BLOCK 807744A1)NOT SOLD SEPARATE, CYLINDER BLOCK
(454) (ORDER LONG BLOCK 807744A1) -
1NSS NOT SOLD SEPARATE, CYLINDER BLOCK
(502) (ORDER LONG BLOCK 807745A1)NOT SOLD SEPARATE, CYLINDER BLOCK
(502) (ORDER LONG BLOCK 807745A1) -
222-32561 PLUG, (.250-18 x .41)PLUG, (.250-18 x .41)
-
222-12524 PLUG, (.375)PLUG, (.375)
-
322-37682 FITTING, Elbow (45 Degree)FITTING, Elbow (45 Degree)
-
422-860088 BUSHINGBUSHING
-
522-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
625-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
719-34270 EXPANSION PLUG, (1.625)EXPANSION PLUG, (1.625)
-
817-52190 PIN, DowelPIN, Dowel
-
919-94140 EXPANSION PLUG (REAR CAMSHAFT HOLE)EXPANSION PLUG (REAR CAMSHAFT HOLE)
-
1023-85684 BEARING SETBEARING SET
-
1125-69756 O-RING, (.500 Inch)O-RING, (.500 Inch)
-
12431-850478T CAMSHAFTCAMSHAFT
-
13845796T CHAINCHAIN
-
1443-845795T SPROCKETSPROCKET
-
1543-845794T SPROCKETSPROCKET
-
1610-8M0043993 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
1717-843378 PIN, Dowel (1/4 In. Diameter)PIN, Dowel (1/4 In. Diameter)
-
18850466T LIFTER, RollerLIFTER, Roller
-
19845754 GUIDEGUIDE
-
208M0050807 RETAINERRETAINER
-
2110-841389 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
22845941 RETAINERRETAINER
-
2310-845943 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
-807744R5 LONG BLOCK ASSEMBLY
(454 MAGNUM)LONG BLOCK ASSEMBLY
(454 MAGNUM) -
-883283R5 LONGBLOCK ASSEMBLY
(502 MAGNUM)LONGBLOCK ASSEMBLY
(502 MAGNUM) -
-92-809825 RTV SILICONE, (3 Ounce Tube) Metallic BlueRTV SILICONE, (3 Ounce Tube) Metallic Blue
-
-92-34227Q02 SEALING COMPOUND, (16 Ounce)SEALING COMPOUND, (16 Ounce)
