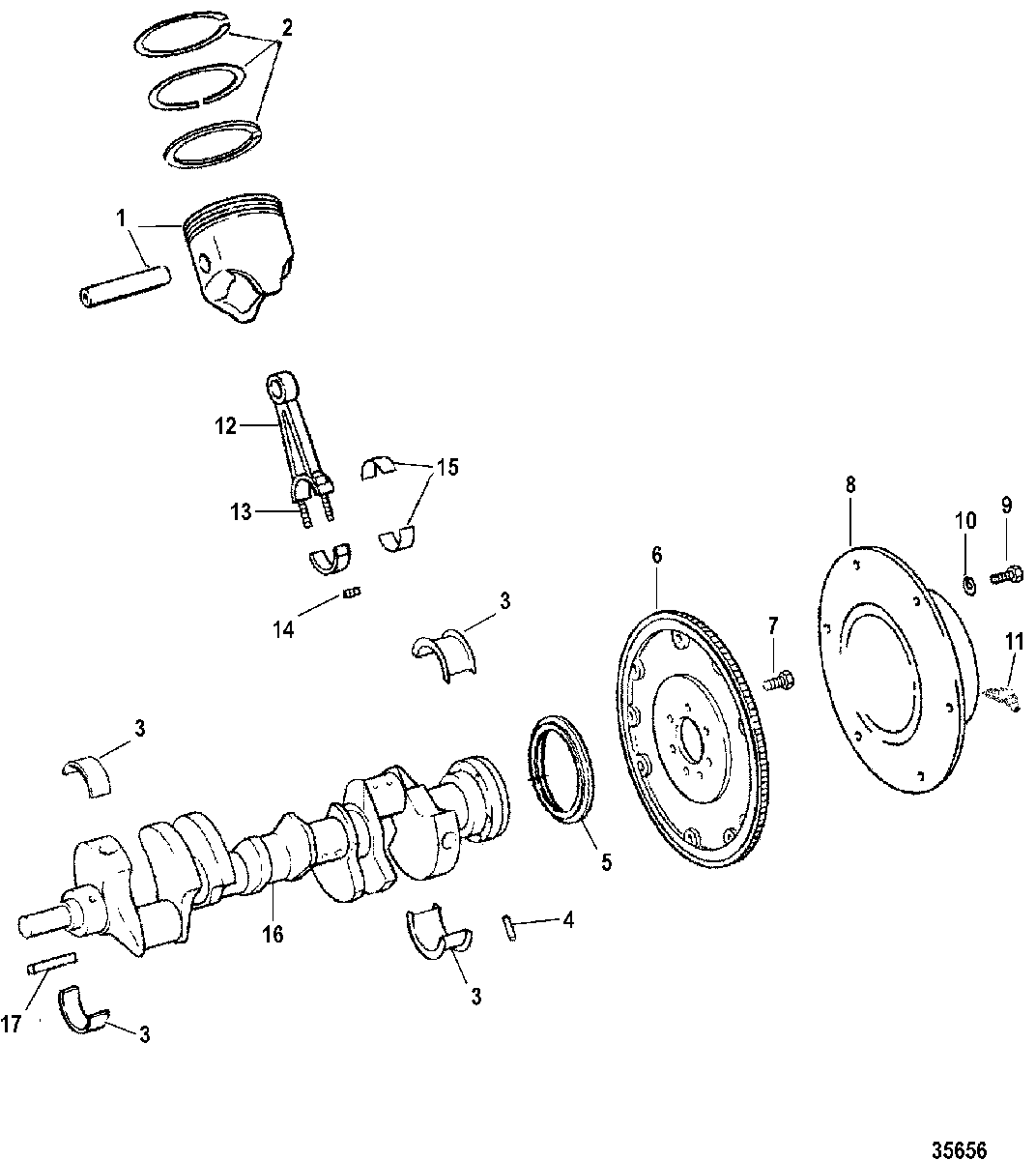

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 1998-2000 0L010003 THRU 0M024330
-
№АртикулНазвание
-
1737-881714T PISTON ASSEMBLY (STANDARD)PISTON ASSEMBLY (STANDARD)
-
1737-850449001 PISTON ASSEMBLY (.030 O.S.)PISTON ASSEMBLY (.030 O.S.)
-
239-827651T RING, Piston (STANDARD)RING, Piston (STANDARD)
-
239-850447 RING, Piston (.030 O.S.)RING, Piston (.030 O.S.)
-
323-818473001 BEARING SET, Main - StandardBEARING SET, Main - Standard
-
323-818474 BEARING SET, Main - .001 UndersizeBEARING SET, Main - .001 Undersize
-
323-818475 BEARING SET, Main - .002 UndersizeBEARING SET, Main - .002 Undersize
-
323-818476001 BEARING SET, Main - .010 UndersizeBEARING SET, Main - .010 Undersize
-
323-818477 BEARING SET, Main - .020 UndersizeBEARING SET, Main - .020 Undersize
-
417-43504 PIN, Dowel (1/4 IN. DIA.)PIN, Dowel (1/4 IN. DIA.)
-
526-811554 SEALSEAL
-
6230-811562T FLYWHEELFLYWHEEL
-
710-845757 SCREW, (.437-20 x 1.00)SCREW, (.437-20 x 1.00)
-
88M0098795 COUPLER ASSEMBLY, Engine - Short Aluminum HubCOUPLER ASSEMBLY, Engine - Short Aluminum Hub
-
910-14883 SCREW, (.375-16 x 1.12)SCREW, (.375-16 x 1.12)
-
1012-20572 WASHER, (.390 x .750 x .093)WASHER, (.390 x .750 x .093)
-
1122-49099 FITTINGFITTING
-
12614-8M0030663 CONNECTING RODCONNECTING ROD
-
1310-52192 BOLTBOLT
-
1411-37493 NUT, (.375-24)NUT, (.375-24)
-
1523-85726001 BEARING SET, Connecting Rod - StandardBEARING SET, Connecting Rod - Standard
-
1523-85727 BEARING SET, Connecting Rod - (.001 Undersize)BEARING SET, Connecting Rod - (.001 Undersize)
-
1523-85728 BEARING SET, Connecting Rod - (.002 Undersize)BEARING SET, Connecting Rod - (.002 Undersize)
-
1523-85691 BEARING SET, Connecting Rod - (.010 Undersize)BEARING SET, Connecting Rod - (.010 Undersize)
-
1523-85729 BEARING SET, Connecting Rod - (.020 Undersize)BEARING SET, Connecting Rod - (.020 Undersize)
-
16429-811551 CRANKSHAFTCRANKSHAFT
-
1728-845607 KEYKEY
-
-27-802567A98 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
