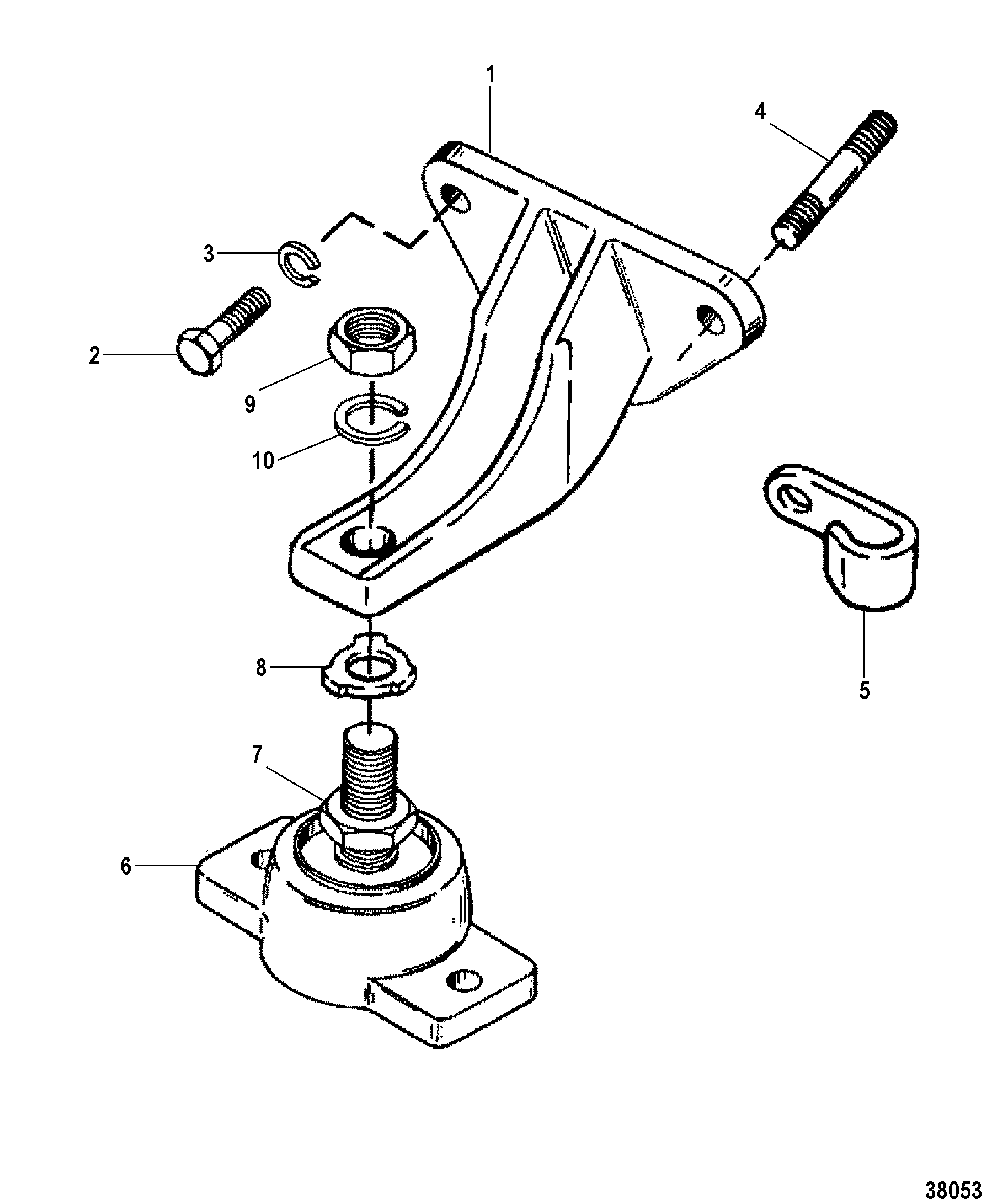

ENGINE MOUNTING для Mercruiser - 7.4LX BRAVO (TBI)(GEN. VI) GM 454 V-8 1996-1997 0F820000 THRU 0K999999
-
№АртикулНазвание
-
179550A1 BRACKETBRACKET
-
210-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
210-48424 SCREW, (.375-16 x 1.620)SCREW, (.375-16 x 1.620)
-
313-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
416-8M2004610 STUD, (.375-16 x 2.130)STUD, (.375-16 x 2.130)
-
554-97862 CLAMPCLAMP
-
6814263A1 BASE ASSEMBLYBASE ASSEMBLY
-
711-816331 NUT, (.750-16)NUT, (.750-16)
-
814-12657 TAB WASHERTAB WASHER
-
911-859126 NUT (3/4-16)NUT (3/4-16)
-
1013-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
