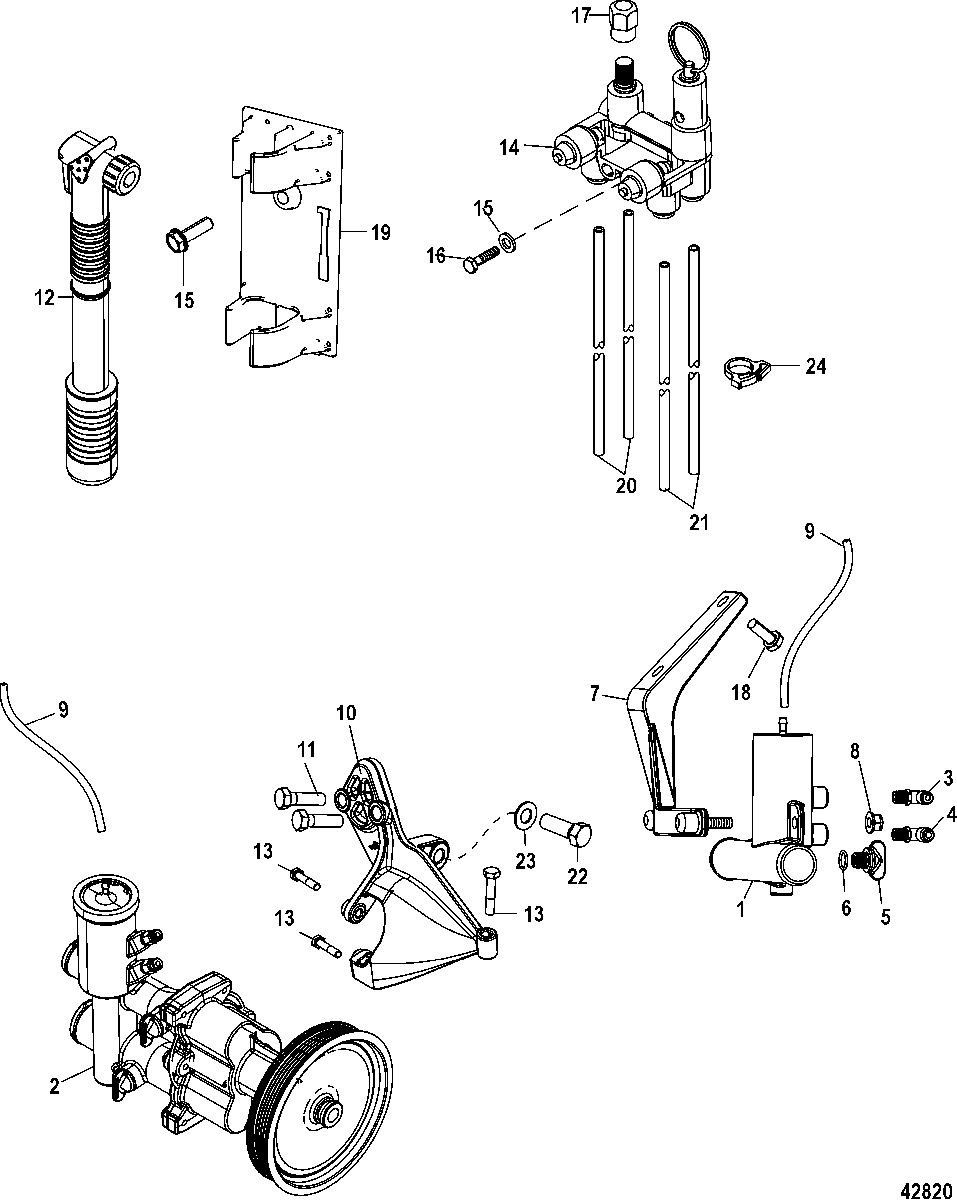

Water Drain System для Mercruiser - 8.2L Mag EC (Base Model) 1A350340 THRU 2A041664
-
№АртикулНазвание
-
1863717A2 ACTUATOR ASSEMBLY, Water Drain
PortACTUATOR ASSEMBLY, Water Drain
Port -
246-8M0137216 PUMP KIT, Sea Water, Without Air Fittings
See Seawater Pump for Component Break downPUMP KIT, Sea Water, Without Air Fittings
See Seawater Pump for Component Break down -
246-8M0137217 PUMP KIT, Sea Water, With Air Fittings
See Seawater Pump for Component Break downPUMP KIT, Sea Water, With Air Fittings
See Seawater Pump for Component Break down -
322-8M0082321 FITTING, Gray (90 Degree)FITTING, Gray (90 Degree)
-
422-8M0082322 FITTING, Orange (90 Degree)FITTING, Orange (90 Degree)
-
522-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
625-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
7863863T BRACKET, Actuator Mounting
PortBRACKET, Actuator Mounting
Port -
811-826365 NUT, (M8), NylockNUT, (M8), Nylock
-
932-8630561 HOSE, (42.00 Inches Bulk) Black, AirHOSE, (42.00 Inches Bulk) Black, Air
-
108M0045295 BRACKET, Seawater PumpBRACKET, Seawater Pump
-
1110-865982007 SCREW, (.375-16 x 1.25) Hex FlangeSCREW, (.375-16 x 1.25) Hex Flange
-
12863057 PUMP, AirPUMP, Air
-
1310-865152 SCREW, (M6)SCREW, (M6)
-
14863053T MANIFOLD ASSEMBLY, AirMANIFOLD ASSEMBLY, Air
-
1510-79968 SCREW, (#12-11 x .750)SCREW, (#12-11 x .750)
-
1610-82104545 SCREW, (M5 x45)SCREW, (M5 x45)
-
1719-8M0046566 CAP, Service PointCAP, Service Point
-
1810-98260 SCREW, (.375-16 x .620)SCREW, (.375-16 x .620)
-
198M0046157 BRACKET, Air PumpBRACKET, Air Pump
-
2032-8M0077561 HOSE, (40.00 inch Bulk) Green
Starboard Cut to 32 Inches, Port Cut to 22 InchesHOSE, (40.00 inch Bulk) Green
Starboard Cut to 32 Inches, Port Cut to 22 Inches -
2132-8M0062601 HOSE, (40.00 inch Bulk) Grey
Starboard Cut to 32 Inches, Port Cut to 23 InchesHOSE, (40.00 inch Bulk) Grey
Starboard Cut to 32 Inches, Port Cut to 23 Inches -
2210-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
2312-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
2454-415825 CLAMP, NylonCLAMP, Nylon
-
2527-34213 GASKETGASKET
