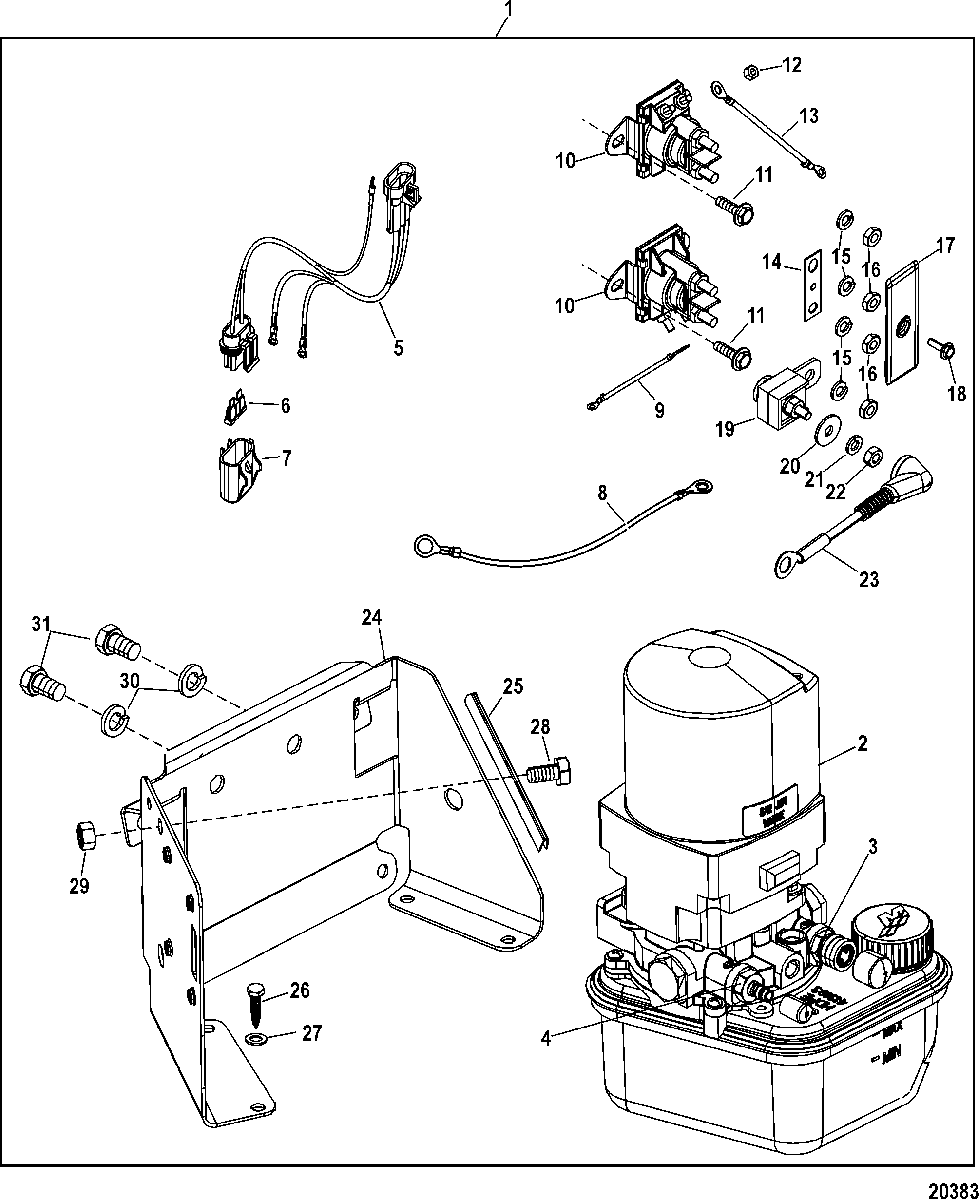

Trim Pump Assembly для Mercruiser - 8.2L Mag EC (Base Model) 2A051742 THRU 2A051742
-
№АртикулНазвание
-
1865380A25 PUMP ASSEMBLY, Trim - CompletePUMP ASSEMBLY, Trim - Complete
-
2865380A13 PUMP/MOTOR ASSEMBLY, Trim - 12 Volt
- NOTE: See Trim Pump/Motor Assembly Section For Parts BreakdownPUMP/MOTOR ASSEMBLY, Trim - 12 Volt
- NOTE: See Trim Pump/Motor Assembly Section For Parts Breakdown -
322-865410001 FITTING, Female Quick Connect, Stainless SteelFITTING, Female Quick Connect, Stainless Steel
-
422-865411001 FITTING, Male Quick Connect, Stainless SteelFITTING, Male Quick Connect, Stainless Steel
-
584-79147A09 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
688-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
7828054 COVER, FuseCOVER, Fuse
-
884-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-NegativeCABLE ASSEMBLY, (6.00 Feet) Black-Negative
-
984-86322A15 CABLE ASSEMBLY, (5.50 Inches) BlackCABLE ASSEMBLY, (5.50 Inches) Black
-
1089-96158T SOLENOIDSOLENOID
-
1110-865655 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
1211-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
1384-86322A24 CABLE ASSEMBLY, (4.00 Inches)CABLE ASSEMBLY, (4.00 Inches)
-
1494275 LINK, ConnectorLINK, Connector
-
1513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1611-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1785-861680 INSULATORINSULATOR
-
1810-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
1988-79023T10 FUSE ASSEMBLY, 110 AmpereFUSE ASSEMBLY, 110 Ampere
-
2012-25908 WASHER, (.265 x .812 x .0625)WASHER, (.265 x .812 x .0625)
-
2113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2211-21825 NUT, (.250-28)NUT, (.250-28)
-
2384-79139A12 CABLE ASSEMBLY, Red-PositiveCABLE ASSEMBLY, Red-Positive
-
24862548A1 BRACKET KIT, Floor Or Transom MountedBRACKET KIT, Floor Or Transom Mounted
-
2558491 CHANNEL, Rubber (4.00 Inches)CHANNEL, Rubber (4.00 Inches)
-
2610-59784 SCREW, (.250-10 x 1.00)SCREW, (.250-10 x 1.00)
-
2712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2810-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
2911-68292 NUT, (.312-18)NUT, (.312-18)
-
3013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3110-98260 SCREW, (.375-16 x .620)SCREW, (.375-16 x .620)
